Discontinued product

Vernis Blend Showerpipe 200 1jet with bath thermostat

Showerpipe 200 1jet with bath thermostat Showerpipe 200 1jet with bath thermostat

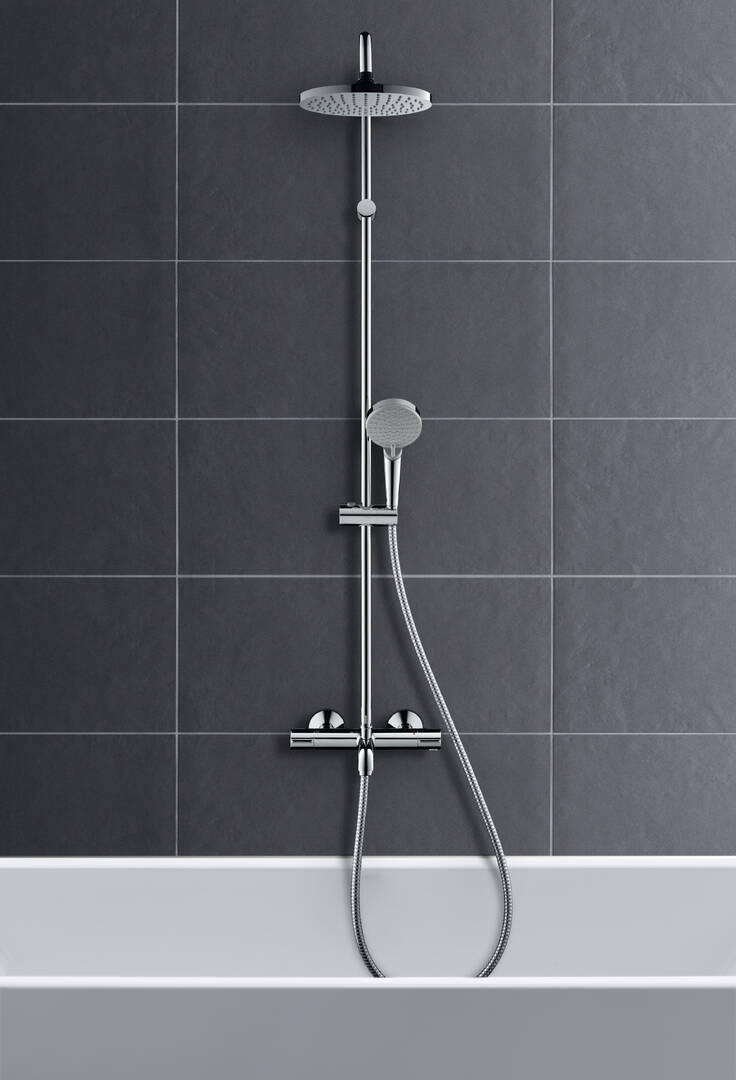

Close-up: Showerpipe 200 1jet with bath thermostat 1 Close-up: Showerpipe 200 1jet with bath thermostat 1
1 / 2
Change variant Showerpipe 200 1jet with bath thermostat

Select a variant

Finish Chrome

Art. no. 26274007

Find the right spare part
Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Find a specialist dealer

Installation information

Installation guide
Installation guide

Download the guide and get going

Download Guide
Professional installation
Professional installation

Leave it to the professionals

Find installer

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Scope of supply

  • Showerpipe with bath thermostat
  • escutcheons
  • S-connections
  • mounting material
  • assembly instruction

Article features

  • consists of: overhead shower, hand shower, bath thermostat, shower hose, shower holder
  • overhead shower Vernis Blend 200 1jet
  • shower head size overhead shower: 205 mm
  • spray type overhead shower: Rain
  • flow rate Rain spray at 3 bar: 11,7 l/min
  • flow rate bath filler: 20 l/min
  • spray type hand shower: Rain, IntenseRain
  • maximum flow rate of hand shower at 3 bar: 10 l/min
  • maximum flow rate for Showerpipe at 3 bar: 20 l/min
  • minimum flow pressure: 0,7 bar
  • max. operating pressure: 10 bar
  • ball-joint: overhead shower angle adjustable
  • height-adjustable slider with locking push-button slider
  • shower arm length overhead shower: 426 mm
  • thermostat Vernis
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • outlets controlled via turning handle
  • suitable for continuous flow water heaters
  • mounting type: exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • intrinsically safe against backflow
  • shower bar diameter: 19 mm
  • 3 functions

Download area

Product data sheet (PDF)

We endeavour to always provide up-to-date, complete information on our website.
However, we do not assume any liability for the up-to-dateness, accuracy, completeness or suitability of the information for particular uses.
