Art. no. 32040000
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.

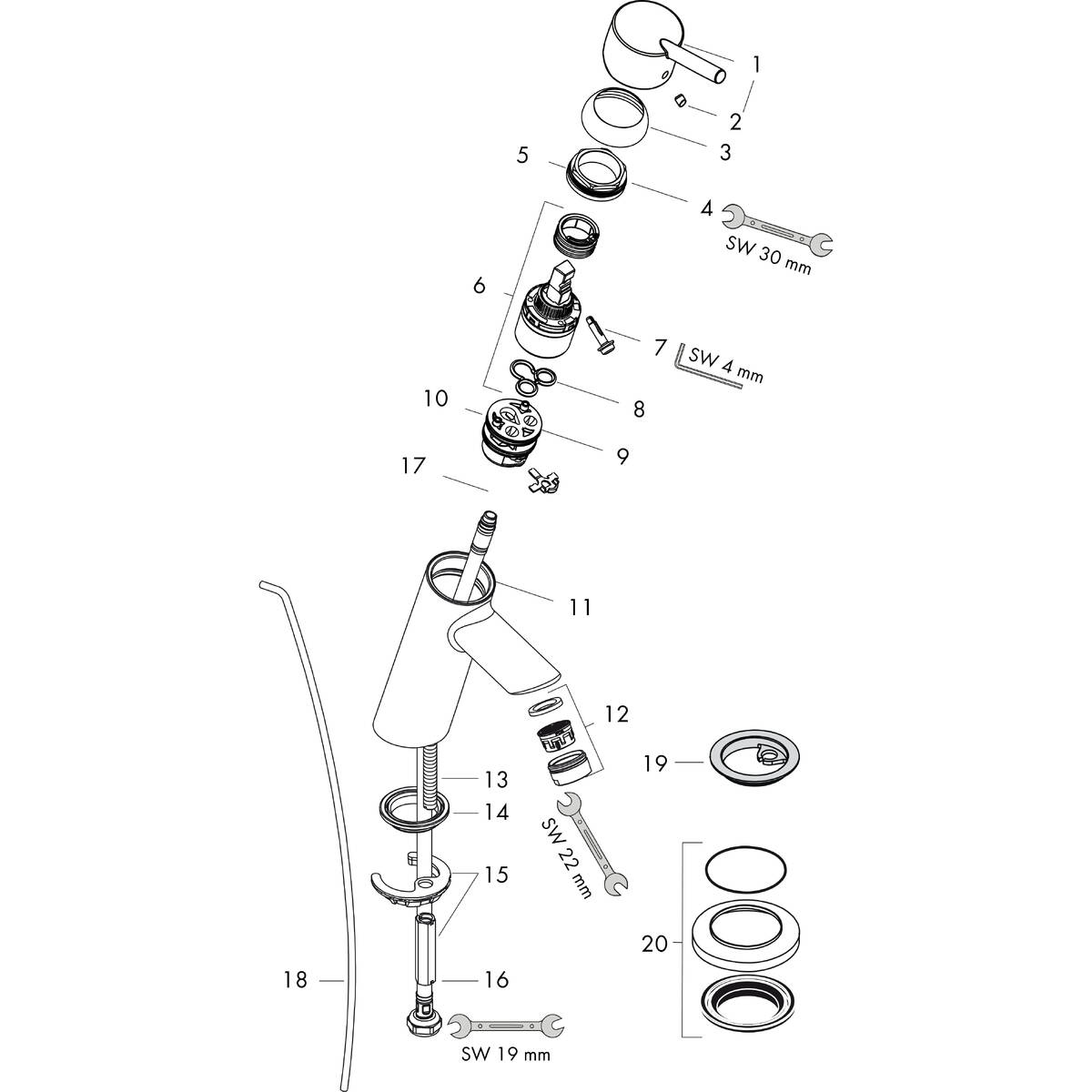

| Item no. | DescriptionArticle no. |
|---|
| b | service set98964000 |
| a | pop up waste94139000 |
| 1 | handle32096000 |
| 2 | screw cover96338000 |
| 3 | flange97406000 |
| 4 | nut97209000 |
| 5 | O-Ring 32x298193000 |
| 6 | cartridge, assy92730000 |
| 7 | locking screw for handle95140000 |
| 8 | seal95008000 |
| 9 | adapter for cartridge98750000 |
| 10 | O-Ring 30x298186000 |
| 11 | O-ring 35x292604000 |
| 12 | aerator M24x1 (5 l/min)13185000 |
| 13 | screw M8 x 6897736000 |
| 14 | seal Ø 4298722000 |
| 15 | fixing set96016000 |
| 16 | connection hose 450 mm M8x0,75 G3/897206000 |
| 17 | O-ring 6,6x1,693019000 |
| 18 | pull rod96657000 |
| 19 | seal Ø 4598996000 |
| 20 | compensation escutcheon32799000 |
