Art. no. 72820000
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.

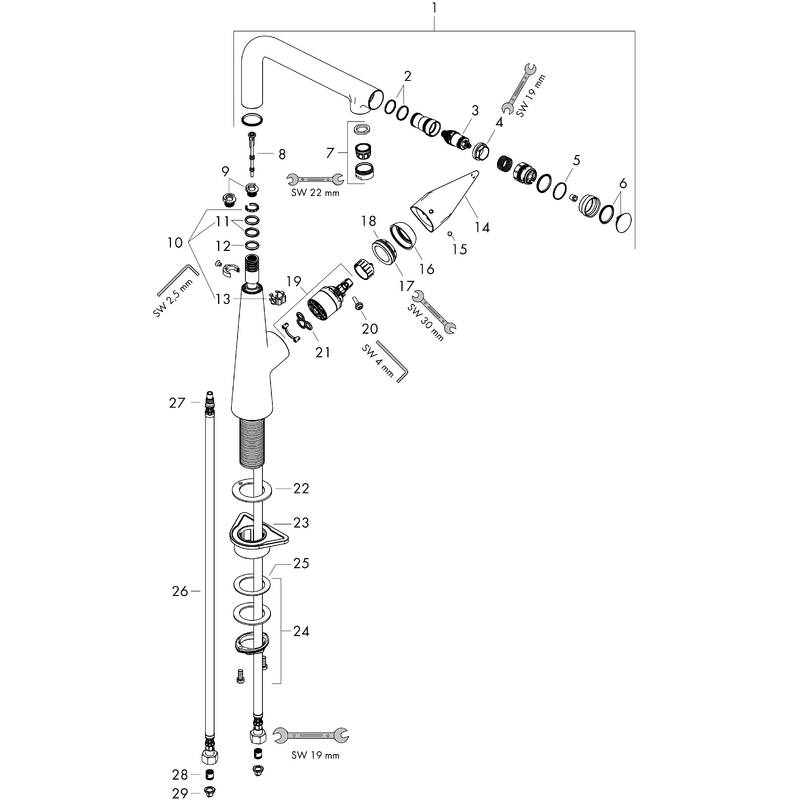

| Item no. | DescriptionArticle no. |
|---|
| 1 | spout cpl.92695000 |
| 2 | O-ring 17x1,598137000 |
| 3 | shut off unit98463000 |
| 4 | nut92567000 |
| 5 | O-ring 19x1,595962000 |
| 6 | cover92566880 |
| 7 | aerator laminar M24x1 (15 l/min)92517000 |
| 8 | tappet92505000 |
| 9 | set of locating rings (110° / 150°)98486000 |
| 10 | sealing set92646000 |
| 11 | O-Ring 14x2,598189000 |
| 12 | O-ring 11x392481000 |
| 13 | axialring97558000 |
| 14 | handle92581000 |
| 15 | screw cover96338000 |
| 16 | flange95498000 |
| 17 | nut97209000 |
| 18 | O-Ring 32x298193000 |
| 19 | cartridge, assy92730000 |
| 20 | locking screw for handle95140000 |
| 21 | seal95008000 |
| 22 | seal92582000 |
| 23 | support97523000 |
| 24 | fixing set (Ø 34)95049000 |
| 25 | lever collar97548000 |
| 26 | connection hose 900 mm M8x0,75 G3/895372000 |
| 27 | O-ring 7x1,598422000 |
| 28 | non return valve DW 1096456000 |
| 29 | filter packing95291000 |
