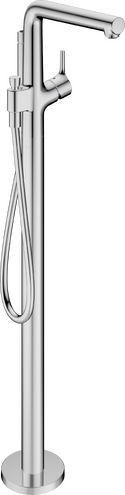

Talis S Single lever bath mixer floor-standing
Art. no. 72412000
Please try again.
Please try again.
Innovative technologies
More pleasure, more efficiency
Products with this shower technology combined water with air to pamper you with more voluminous, lighter and softer water droplets on your skin. For greater showering pleasure with water efficiency.Learn more
Fast anti-limescale function
Who really likes cleaning? Our invention, QuickClean, rapidly removes dirt and limescale deposits from mixers and showers. Flexible silicon nubs make sure of this. Beware of copies: this QuickClean logo is the only guarantee of genuine Hansgrohe quality.Learn more
Five-year manufacturer's guarantee
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Similar products
You may also like
Article features
- consists of: single lever bath mixer floor standing, baton hand shower, shower hose, shower holder
- projection 245 mm
- connection type: basic set
- spray type mixer: normal spray
- spray type hand shower: Rain, MonoRain

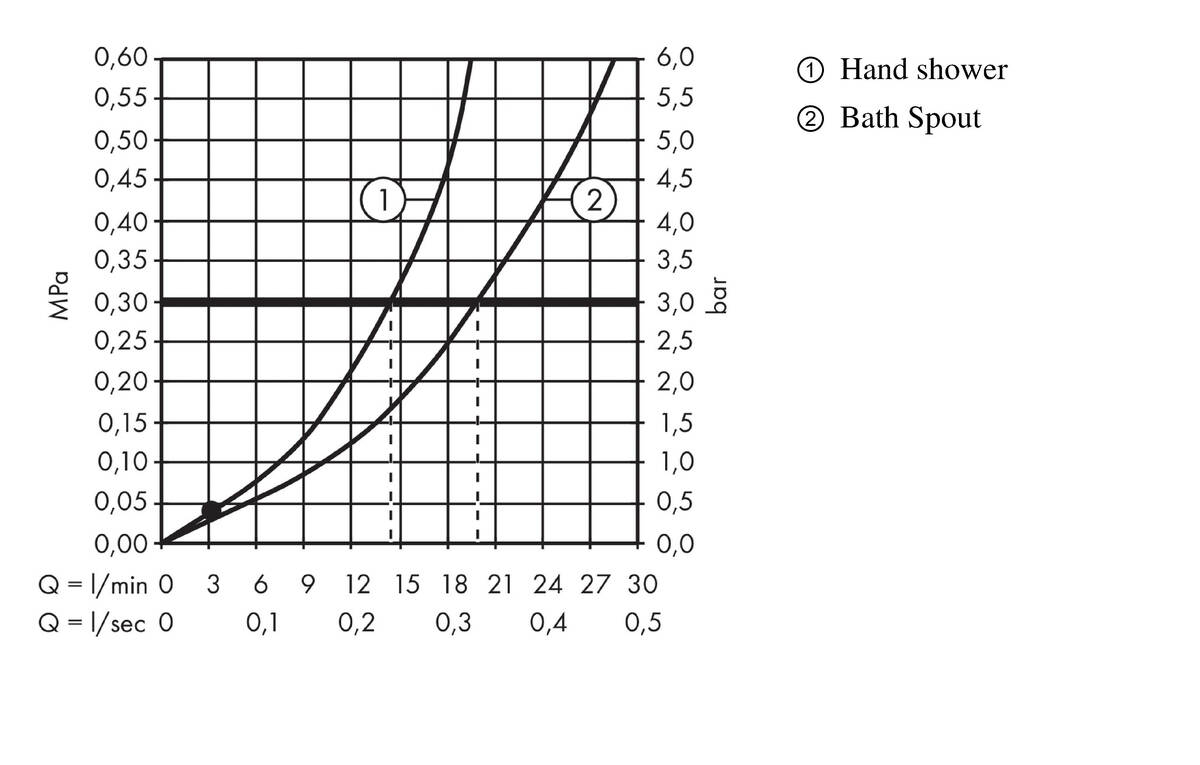

- flow rate at 3 bar: 20 l/min
- ceramic cartridge
- with automatic resetting
- non-return valve
- connection dimension: DN15
Download area

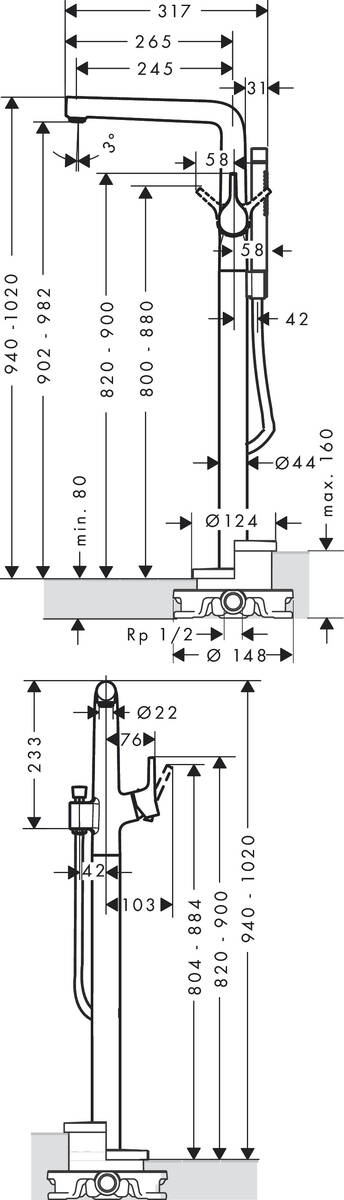

Product data sheet (PDF)Planning data
- Planning data (2D top view) DXF, 55 KB
- Planning data (2D front view) DWG, 48 KB
- Planning data (3D) DXF, 2.7 MB
- Planning data (2D side view) DXF, 45 KB
- Planning data (2D top view) DWG, 35 KB
- Planning data (3D) DWG, 587 KB
- Planning data (2D front view) DXF, 114 KB
- Planning data (2D side view) DWG, 32 KB
Technical data
Installation information
Scope of supply
- single lever bath mixer floor-standing
- mounting material
- assembly instruction
Spare parts for build year 04/16
View older models in the spare parts catalogueItem no. | DescriptionArticle no. |
---|
1 | handle92644000 |
2 | screw cover96338000 |
3 | flange97406000 |
4 | nut97209000 |
5 | O-Ring 32x298193000 |
6 | cartridge, assy92730000 |
7 | locking screw for handle95140000 |
8 | seal95008000 |
9 | aerator M24x1 (30 l/min)96512000 |
10 | diverter knob95284000 |
11 | sleeve97738000 |
12 | selector assy94077000 |
13 | shower hose 1,25 m28282000 |
14 | shower holder, assy96295000 |
15 | handshower28532000 |
16 | filter packing94246000 |
17 | hexagon socket screw M10x3597670000 |
18 | O-ring 9x1,598117000 |
19 | O-ring 44x2,598162000 |
20 | O-ring 29x398371000 |
21 | O-ring 7x298419000 |
22 | extension set 60 mm97686000 |
