with two filter units with fine filter to protect from incoming dirt, for assembly on existing angle valves. Filter element can be removed and cleaned
non-return valve
Article features

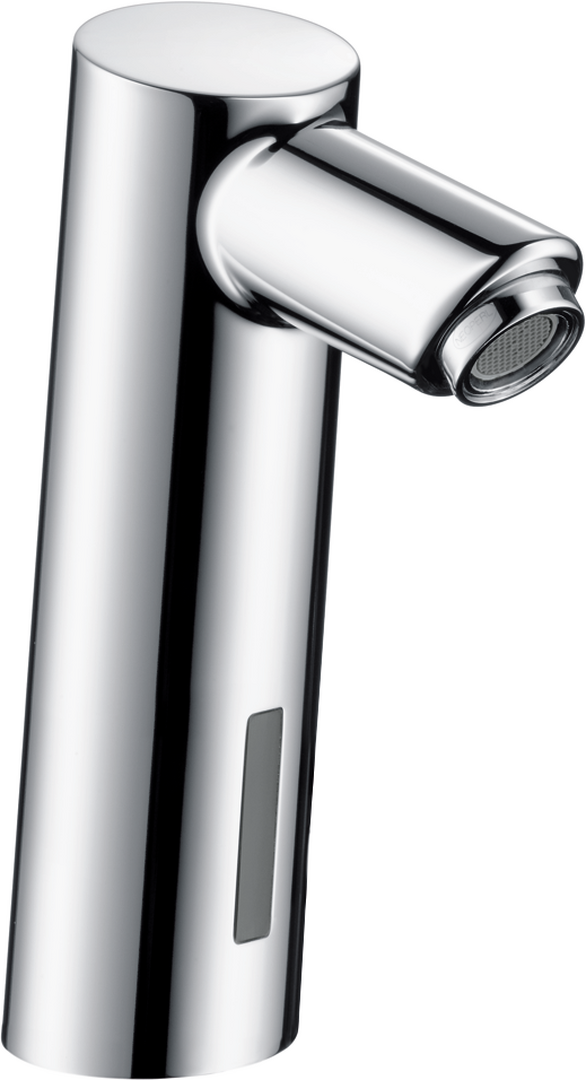

ComfortZone 120
projection: 108 mm
maximum flow rate at 3 bar: 5 l/min
temperature limitation adjustable
temperature pre-adjustable
suitable for continous flow water heaters
infrared sensor technology
automatic environmental adjustment of infrared sensor
adjustable optical range of infrared sensor (2 settings)
battery condition indicator available
battery operation 6V (lifetime approx. 2 years, battery included in scope of supply)
hygiene rinse activatable (automatic water flow)
frequency of hygiene rinse: 24 h
flushing time hygiene rinse: 10 s
permanent rinse activatable (single water flow for 180 seconds, suitable for thermal disinfection)
cleaning mode: manual water stop for washbasin cleaning
connection dimension: DN15
dirt filters in the connection hoses
performance may be impaired if the sensor is obscured by the design of the wash basin, or when the wash basin is oversized and the distance between sensor and the wash basin edge is larger than 75 mm
functional restriction due to too large distance
