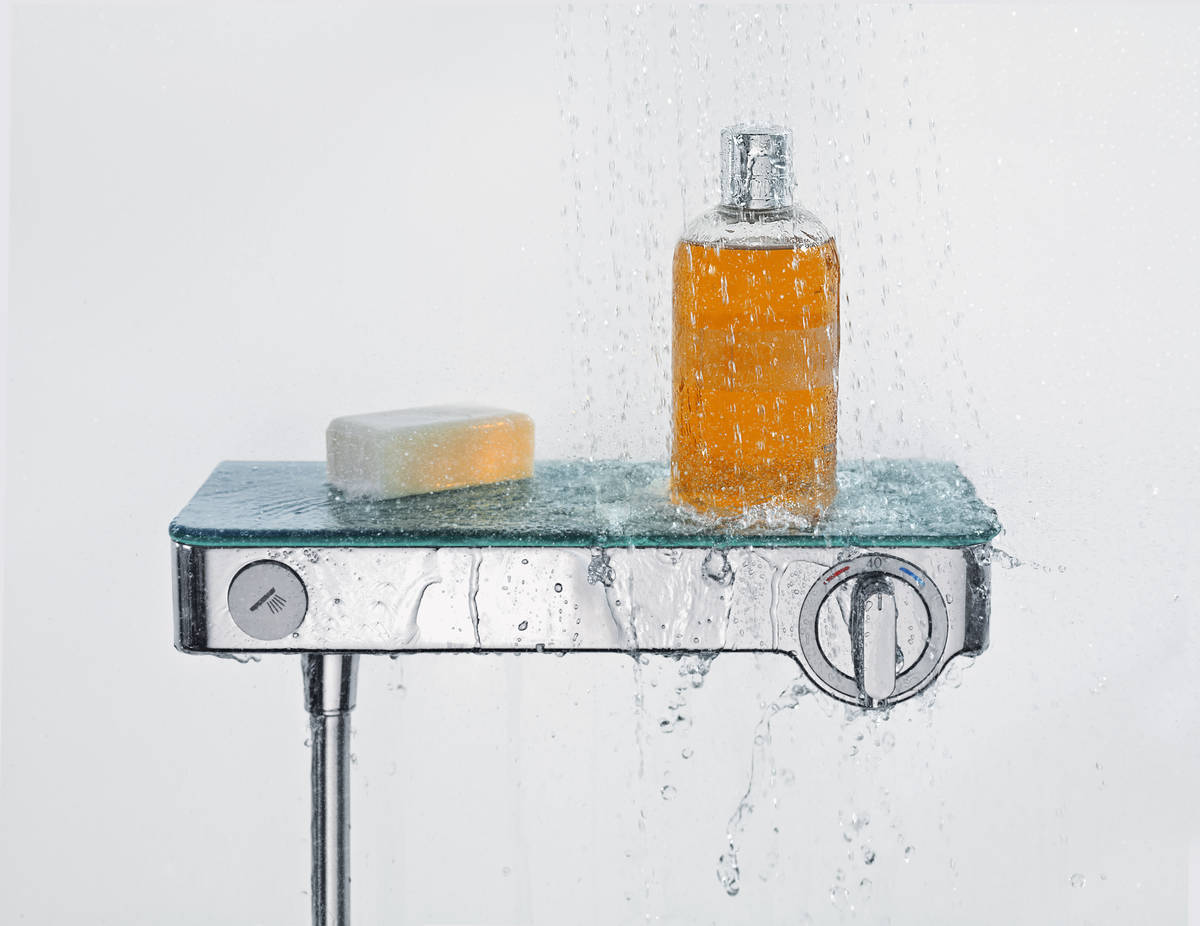

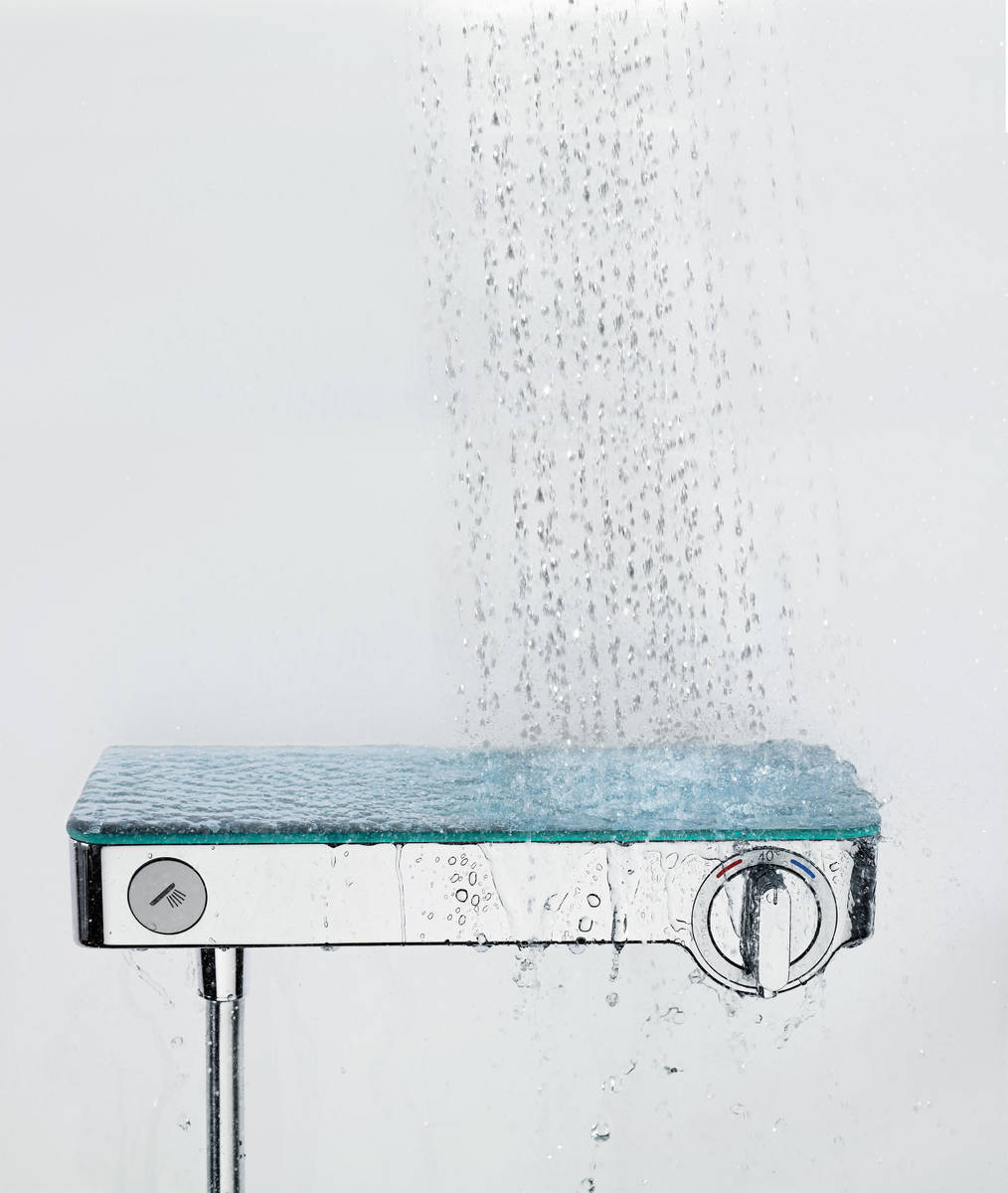

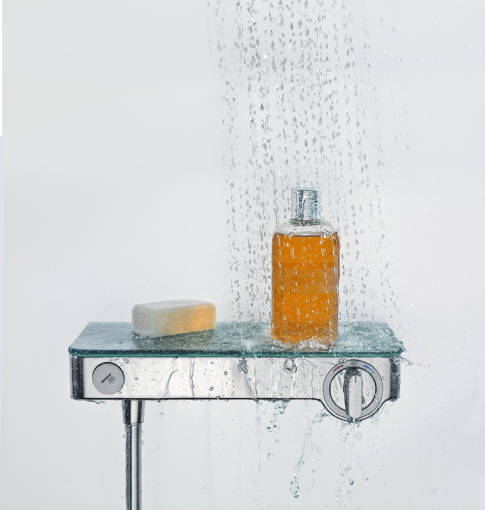

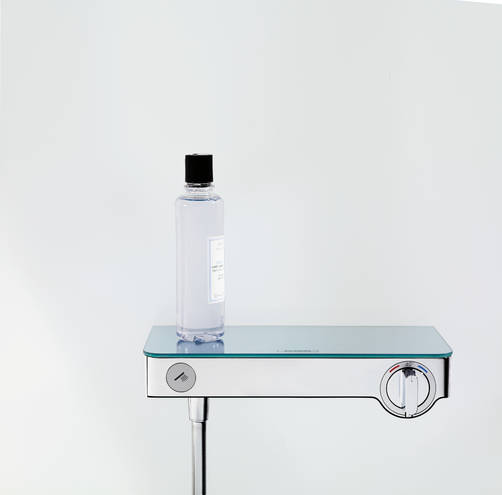

ShowerTablet Select Shower thermostat 300 for exposed installation
Change variant Shower thermostat 300 for exposed installation
Art. no. 13171000
Remember product
Product noted
Product saved for 30 daysTo the notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
product added
Product saved for 30 daysTo the Product Comparison
The product could not be saved.
Please try again.
Please try again.
Product features
Innovative technologies
Select
Intuitive jet adjustment
Soft water droplets or an invigorating massage? Select the jet type you want in just one click, for even more showering fun.Learn more
Awards
Design Awards
Trust in highest quality
Five-year manufacturer's guarantee
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Alternative products
Similar products
Matching products
You may also like
Article features
- 1 outlet

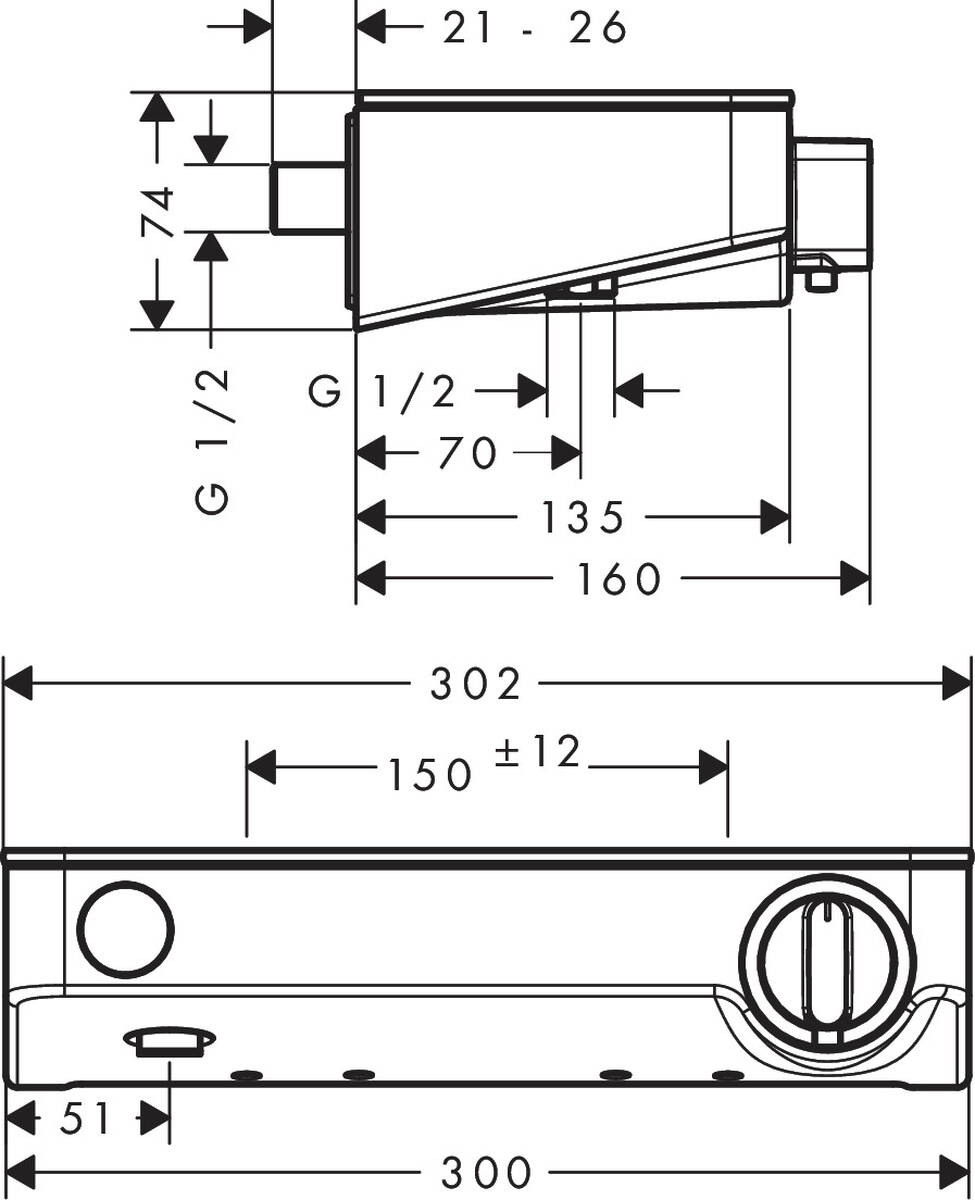

- centre distance: 150 ± 12 mm

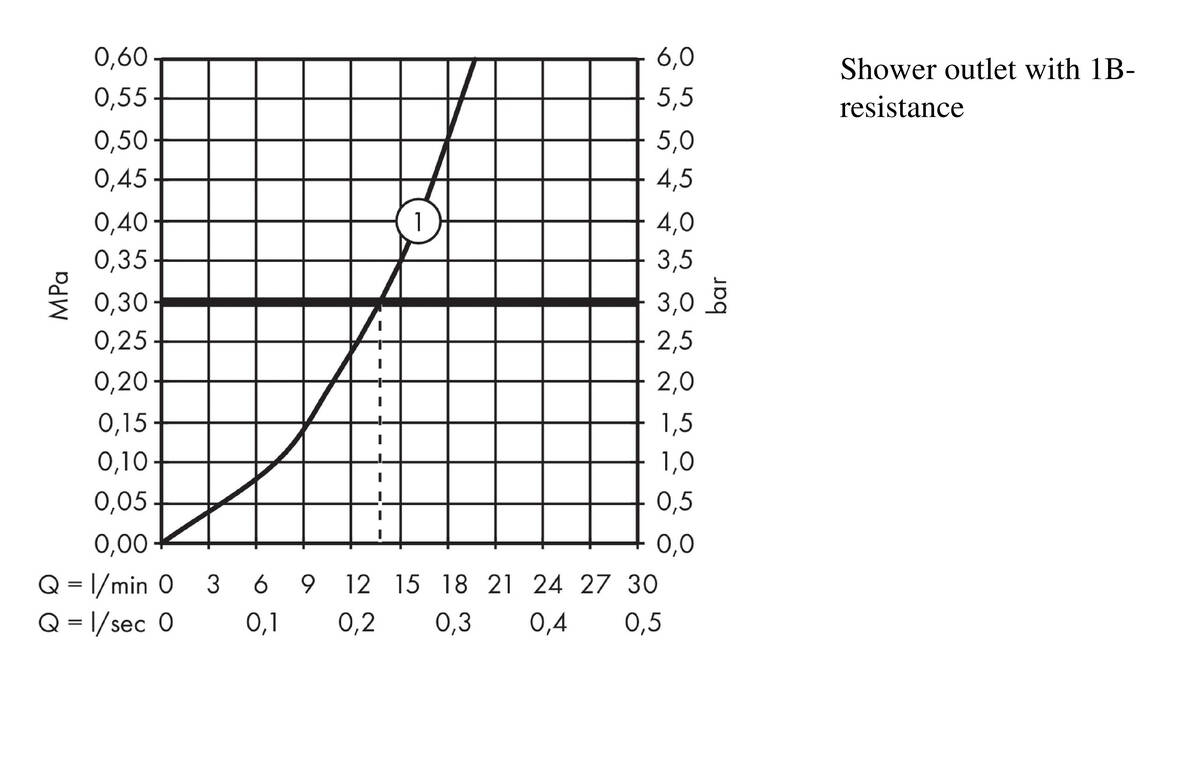

- flow rate hand shower connection at 0.3 MPa: 14 l/min
- thermostat cartridge, Select valve
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar

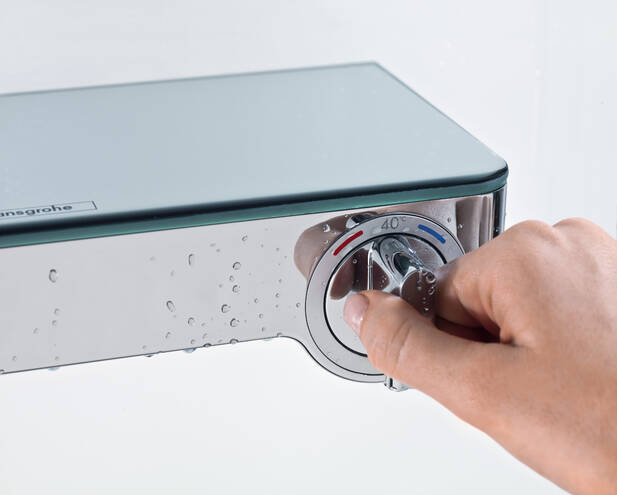

- safety lock at 40° C
- temperature limitation adjustable
- with isolated water conduction
- non-return valve
- with silencer
- material handles: metal

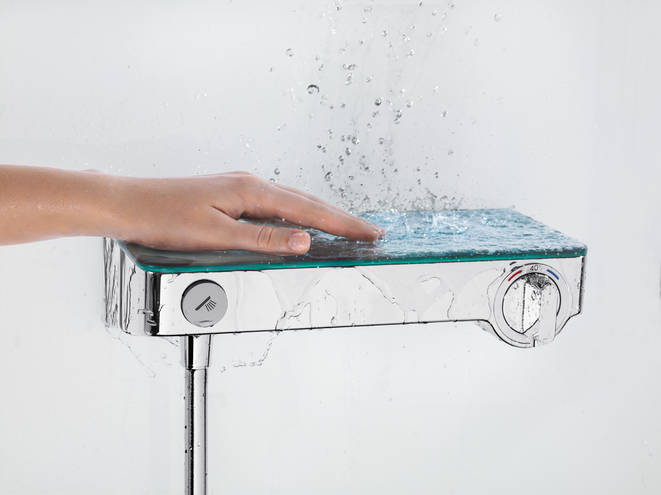

- shelf made of safety glass
- surface of the shelf at color variant -000 = mirror glass, at color variant -400 = white glass
- in case of installation on existing G ¾ connections, adaptor no.02026000 must be used
- connection type: G ½
- connection dimension: DN15
- dirt filter included
- Thermostat is delivered with button hand shower
Installation information
Scope of supply
- shower thermostat
- S-connections
- mounting material
- assembly instruction
Spare parts for build year 06/13
View older models in the spare parts catalogueItem no. | DescriptionArticle no. |
---|
a | adapter for ball S - union02026000 |
b | ball s-unions with escutcheon98293000 |
c | shut off unit (special)92361000 |
O-ring 13x1,598475000 | |
hexagon socket screw M6x1692857000 | |
1 | escutcheon92162000 |
2 | handle for thermostat98369000 |
3 | O-ring 49x298412000 |
4 | safety set98370000 |
5 | nut98913000 |
6 | handle fixing set92136000 |
7 | thermostat cartridge98282000 |
8 | cartridge for exchanged connections92373000 |
9 | set of symbols98367000 |
10 | spring with sleeve92340000 |
11 | O-ring 20x198140000 |
12 | nut98368000 |
13 | shut off unit95758000 |
14 | hollow set screw M6x16 including o-ring 29x398372000 |
15 | Hose Connection96044000 |
16 | O-ring 14x298129000 |
17 | set of non return valves DW 1594074000 |
18 | mounting set96179000 |
19 | non return valve (pressure-resistant up to 2 MPa)95773000 |
20 | O-ring 17x298199000 |
21 | set of S-unions95772000 |
22 | noise reduction96429000 |
23 | O-ring 29x398371000 |
Optional accessories
