ShowerSelect Glass Valve for concealed installation for 3 functions
Art. no. 15736400
Remember product
Product noted
Product saved for 30 daysTo the notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
product added
Product saved for 30 daysTo the Product Comparison
The product could not be saved.
Please try again.
Please try again.
Product features
Innovative technologies
Awards
Design Awards
Trust in highest quality
Five-year manufacturer's guarantee
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Alternative products
Similar products
Installation information
Required parts
Scope of supply
- Valve
- mixing unit
- mounting material
- assembly instruction

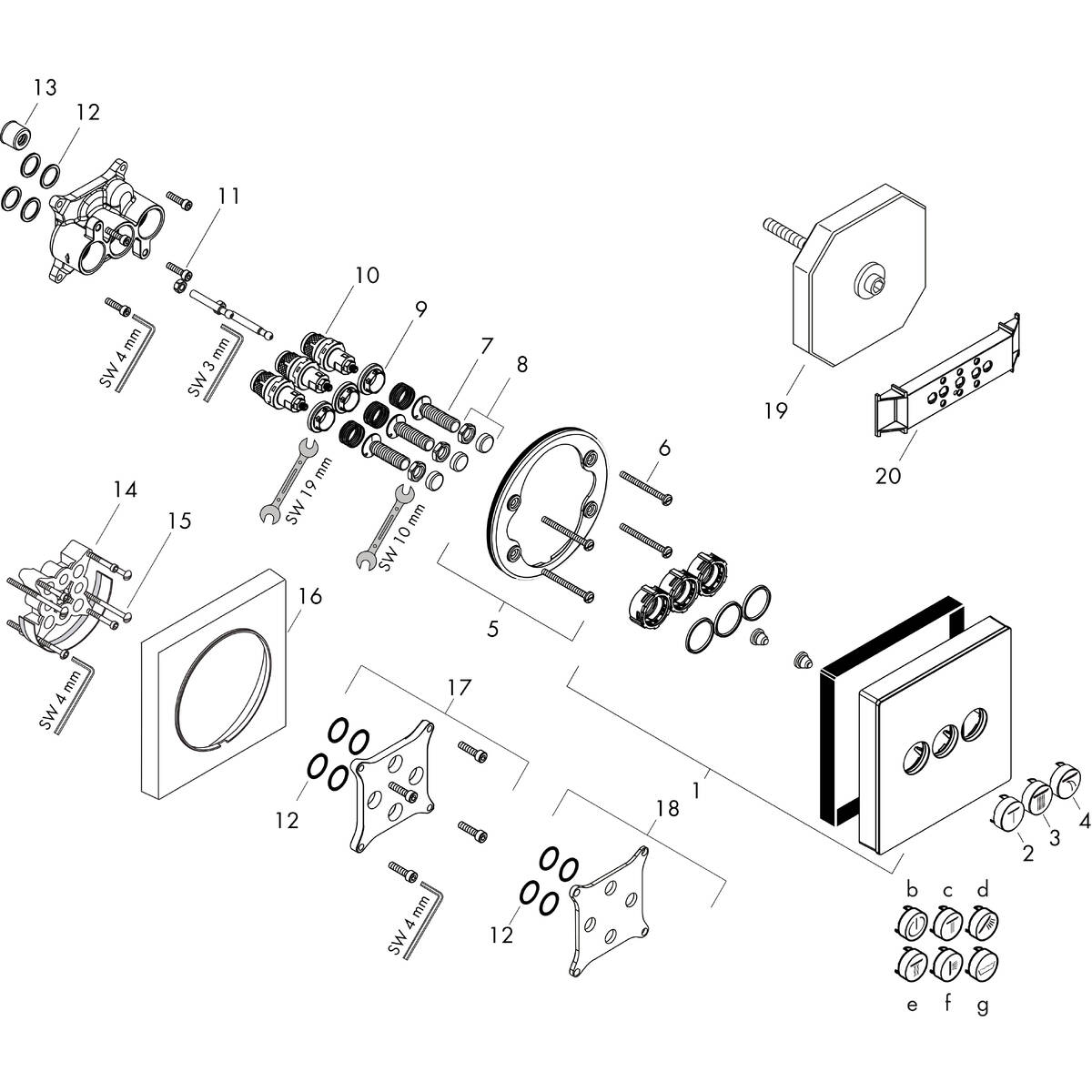

Spare parts for build year 07/15
View older models in the spare parts catalogue
| Item no. | DescriptionArticle no. |
|---|
| d | symbol handshower92573450 |
| a | concealed item01800180 |
| e | symbol Whirl92575450 |
| f | symbol body shower92578450 |
| c | symbol head shower Rain small92572450 |
| g | symbol tub92577450 |
| b | symbol ON/OFF92579450 |
| 1 | escutcheon 155 / 155 mm92624400 |
| 2 | symbol Mono92576450 |
| 3 | symbol head shower Rain large92571450 |
| 4 | symbol Flood jet92574450 |
| 5 | holder for escutcheon98793000 |
| 6 | set of fixing screws96454000 |
| 7 | Select-adapter92219000 |
| 8 | nut and flange92696000 |
| 9 | nut98368000 |
| 10 | shut off unit95758000 |
| 11 | set of screws96525000 |
| 12 | O-ring 16x298133000 |
| 13 | noise reduction94073000 |
| 14 | extension 25 mm13595000 |
| 15 | set of fixing screws97747000 |
| 16 | extension 22 mm13604000 |
| 17 | extension 10 mm for iBox universal with shut-off unit92332000 |
| 18 | compensation set 1°95521000 |
| 19 | flushing unit complete15956000 |
| 20 | fit-up aid92540000 |
