ShowerSelect Glass Thermostat HighFlow for concealed installation for 1 function and additional outlet
Art. no. 15735400
Remember product
Product noted
Product saved for 30 daysTo the notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
product added
Product saved for 30 daysTo the Product Comparison
The product could not be saved.
Please try again.
Please try again.
Product features
Innovative technologies
Awards
Design Awards
Trust in highest quality
Five-year manufacturer's guarantee
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Alternative products
Similar products
Installation information
Required parts
Scope of supply
- Thermostat
- mixing unit
- mounting material
- assembly instruction

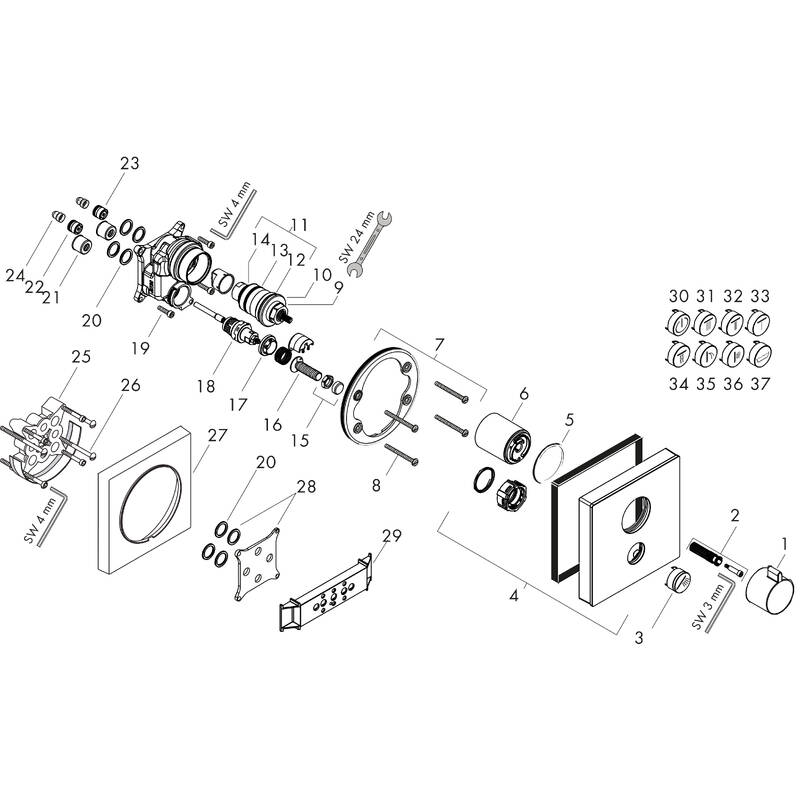

Spare parts for build year 08/16
View older models in the spare parts catalogue
| Item no. | DescriptionArticle no. |
|---|
| a | concealed item01800180 |
| b | adapter for exchanged connections93181000 |
| c | Grease90920000 |
| 1 | handle for thermostat92596000 |
| 2 | adapter for handle92597000 |
| 3 | symbol handshower92573450 |
| 4 | escutcheon 155 / 155 mm92618400 |
| 5 | O-ring 48x598174000 |
| 6 | sleeve92867000 |
| 7 | holder for escutcheon98793000 |
| 8 | set of fixing screws96454000 |
| 9 | thermostat cartridge96633000 |
| 10 | O-ring 43x1,598148000 |
| 11 | sealing set96636000 |
| 12 | O-ring 38x2,598198000 |
| 13 | O-ring 34x298383000 |
| 14 | O-ring 26x298147000 |
| 15 | nut and flange92696000 |
| 16 | Select-adapter92219000 |
| 17 | nut98368000 |
| 18 | shut off unit95758000 |
| 19 | set of screws96525000 |
| 20 | O-ring 16x298133000 |
| 21 | noise reduction94073000 |
| 22 | non return valve (pressure-resistant up to 2 MPa)92594000 |
| 23 | non return valve97980000 |
| 24 | filter98513000 |
| 25 | extension 25 mm13595000 |
| 26 | set of fixing screws97747000 |
| 27 | extension 22 mm13593000 |
| 28 | compensation set 1°95521000 |
| 29 | fit-up aid92540000 |
| 30 | symbol ON/OFF92579450 |
| 31 | symbol head shower Rain large92571450 |
| 32 | symbol head shower Rain small92572450 |
| 33 | symbol Mono92576450 |
| 34 | symbol Whirl92575450 |
| 35 | symbol Flood jet92574450 |
| 36 | symbol body shower92578450 |
| 37 | symbol tub92577450 |
