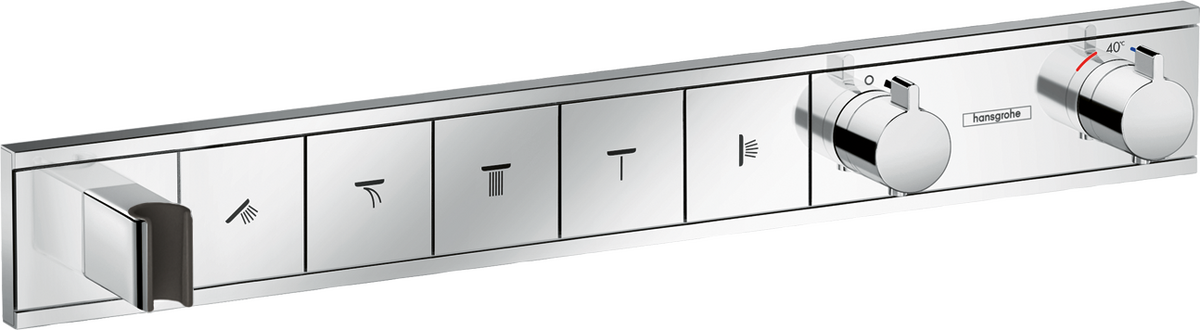

RainSelect Thermostat for concealed installation for 5 functions with integrated shower holder
Art. no. 15358000
Remember product
Product noted
Product saved for 30 daysTo the notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
product added
Product saved for 30 daysTo the Product Comparison
The product could not be saved.
Please try again.
Please try again.
Product features
Innovative technologies
Awards
Design Awards
Trust in highest quality
Five-year manufacturer's guarantee
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Alternative products
Similar products

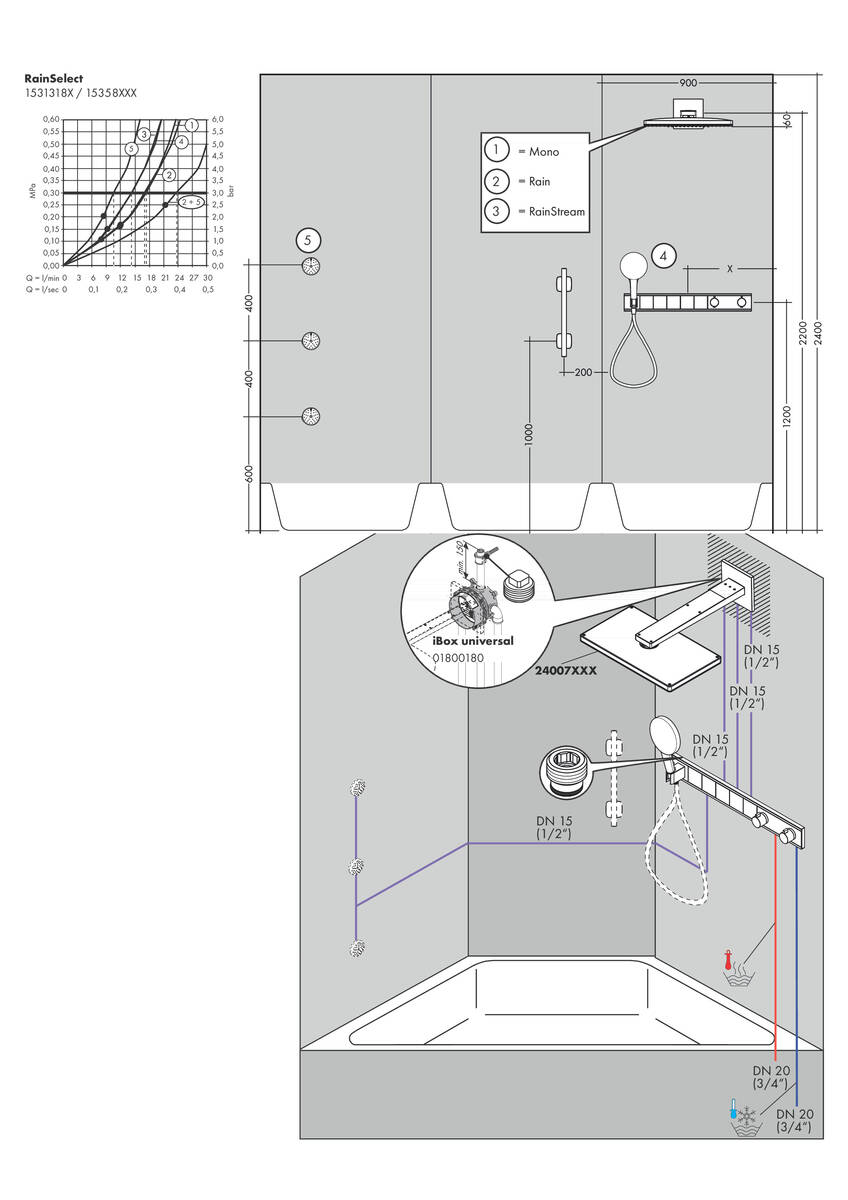

Installation information
Required parts
Scope of supply
- Thermostat
- mixing unit
- mounting material
- assembly instruction

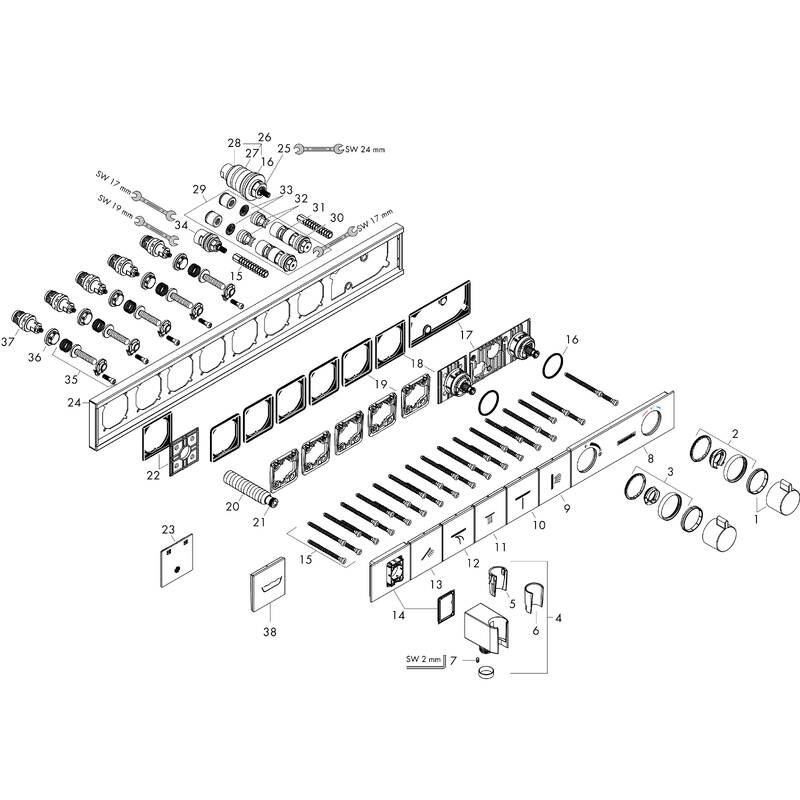

Spare parts for build year 10/17
View older models in the spare parts catalogue
| Item no. | DescriptionArticle no. |
|---|
| a | concealed item15313180 |
| c | extension 16 mm93440000 |
| b | extension 25 mm93435000 |
| 1 | handle for thermostat92215000 |
| 2 | safety set93112000 |
| 3 | safety set93113000 |
| 4 | shower holder, assy93114000 |
| 5 | hollow set screw M4x897669000 |
| 6 | cover93105000 |
| 7 | symbol body shower93304000 |
| 8 | symbol Mono93306000 |
| 9 | symbol head shower Rain large93107000 |
| 10 | symbol Flood jet93305000 |
| 11 | symbol handshower93106000 |
| 12 | cover93108000 |
| 13 | mounting kit93102000 |
| 14 | O-ring 38x2,598198000 |
| 15 | adapter for handle93109000 |
| 16 | adapter for handle93315000 |
| 17 | support element93111000 |
| 18 | connecting thread G½98933000 |
| 19 | O-ring 11x298127000 |
| 20 | support element93314000 |
| 21 | fit-up aid93417000 |
| 22 | escutcheon93318000 |
| 23 | thermostat cartridge96633000 |
| 24 | sealing set96636000 |
| 25 | O-ring 34x298383000 |
| 26 | O-ring 26x298147000 |
| 27 | service unit93406000 |
| 28 | O-ring 20x298165000 |
| 29 | O-ring 20x1,598197000 |
| 30 | non return valve96655000 |
| 31 | filter97367000 |
| 32 | shut off unit98536000 |
| 33 | Select-adapter93103000 |
| 34 | nut98368000 |
| 35 | shut off unit95758000 |
| 36 | symbol tub93303000 |
