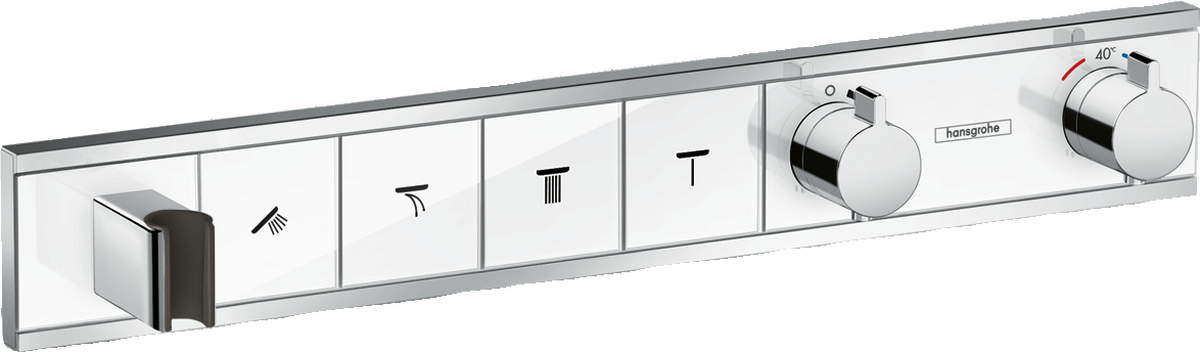

Art. no. 15357400
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.

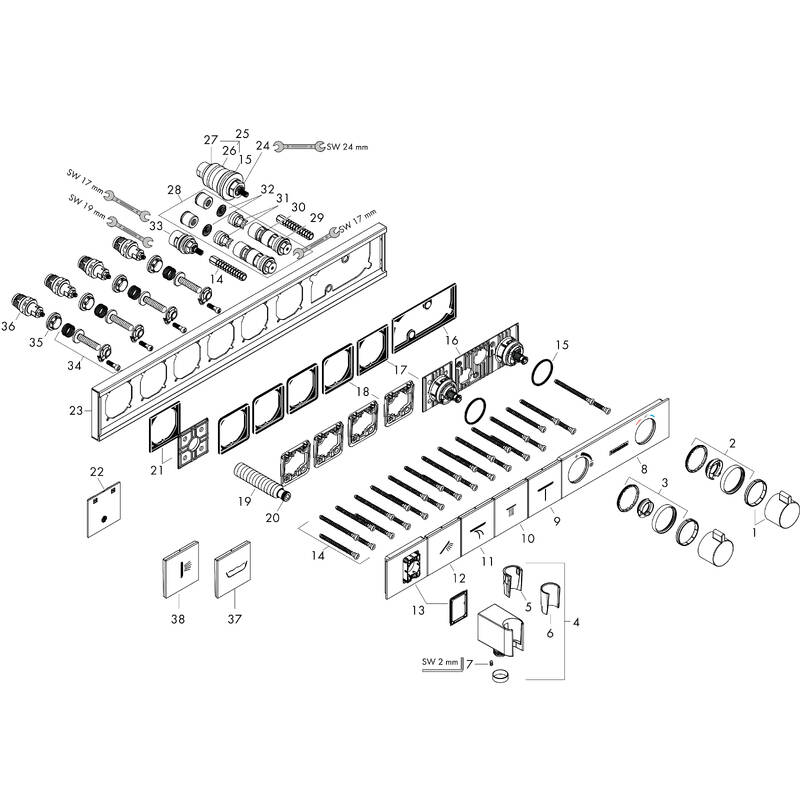

| Item no. | DescriptionArticle no. |
|---|
| a | concealed item15312180 |
| c | extension 16 mm93439000 |
| b | extension 25 mm93434000 |
| 1 | handle for thermostat92215000 |
| 2 | safety set93112000 |
| 3 | safety set93113000 |
| 4 | shower holder, assy93114000 |
| 5 | hollow set screw M4x897669000 |
| 6 | cover93105450 |
| 7 | symbol Mono93306450 |
| 8 | symbol head shower Rain large93107450 |
| 9 | symbol Flood jet93305450 |
| 10 | symbol handshower93106450 |
| 11 | cover93108450 |
| 12 | mounting kit93102000 |
| 13 | O-ring 38x2,598198000 |
| 14 | adapter for handle93109000 |
| 15 | adapter for handle93315000 |
| 16 | support element93111000 |
| 17 | connecting thread G½93830000 |
| 18 | O-ring 11x298127000 |
| 19 | support element93314000 |
| 20 | fit-up aid93417000 |
| 21 | escutcheon93317000 |
| 22 | thermostat cartridge96633000 |
| 23 | sealing set96636000 |
| 24 | O-ring 34x298383000 |
| 25 | O-ring 26x298147000 |
| 26 | service unit93406000 |
| 27 | O-ring 20x298165000 |
| 28 | O-ring 20x1,598197000 |
| 29 | non return valve96655000 |
| 30 | filter97367000 |
| 31 | shut off unit98536000 |
| 32 | Select-adapter93103000 |
| 33 | nut98368000 |
| 34 | shut off unit95758000 |
| 35 | symbol tub93303450 |
| 36 | symbol body shower93304450 |
