Art. no. 24006600
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.

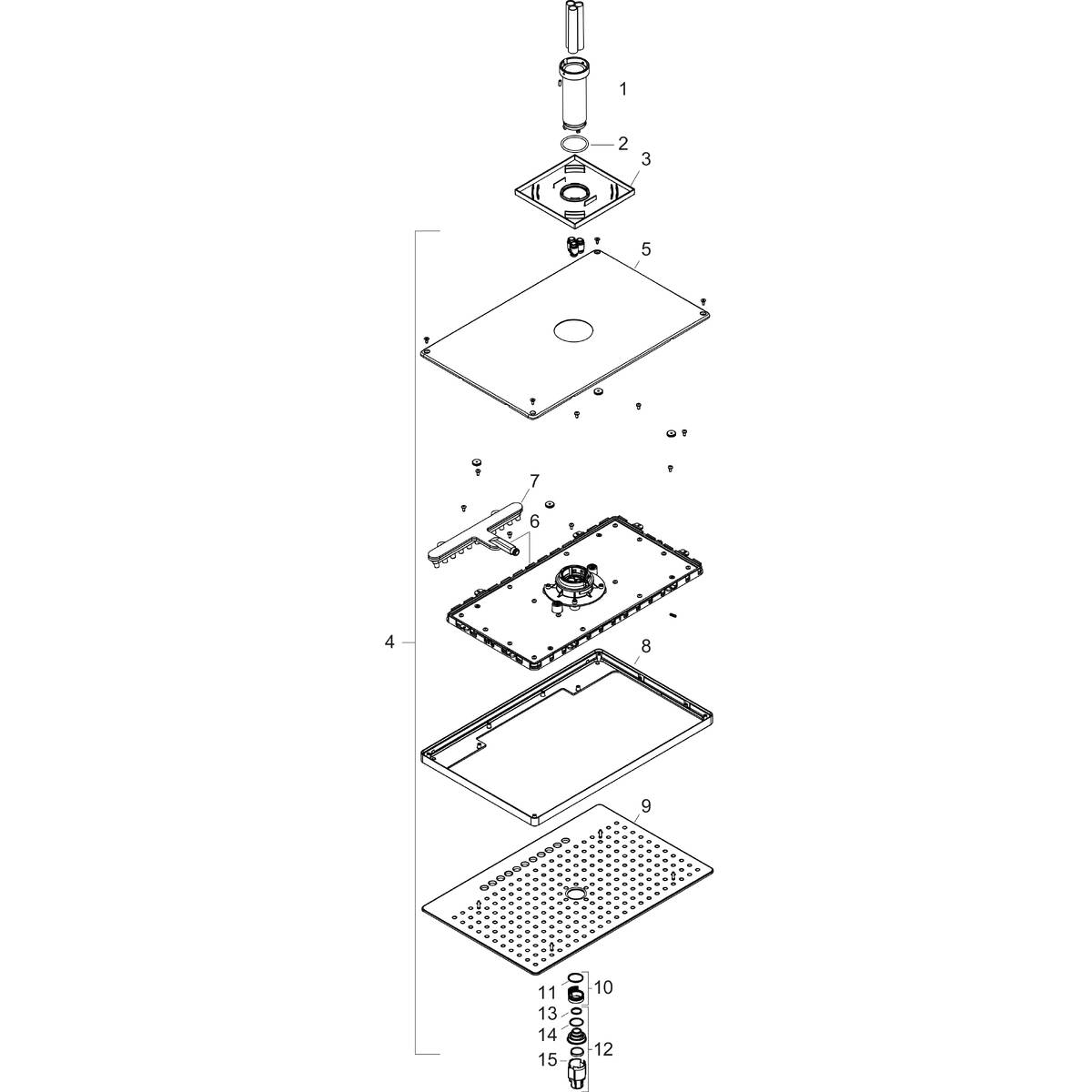

| Item no. | DescriptionArticle no. |
|---|
| a | base body24010180 |
| b | extension set35288000 |
| c | Grease90920000 |
| 1 | sleeve92709000 |
| 2 | O-ring 42x3,592708000 |
| 3 | escutcheon 155 / 155 mm92710000 |
| 4 | head shower92681600 |
| 5 | cover93393000 |
| 6 | cartridge, assy93389000 |
| 7 | spray insert92923000 |
| 8 | frame93391000 |
| 9 | spray body92704610 |
| 10 | filter92683000 |
| 11 | O-ring 24x298388000 |
| 12 | aerator laminar92684000 |
| 13 | O-ring 15x298163000 |
| 14 | O-ring 21x298205000 |
| 15 | special tool92686000 |
