Art. no. 26232700
In addition to the voluntary manufacturer’s guarantee, you can trust the multiple awards given for the high quality standards and durability of hansgrohe products.
Water is life, and our passion. Our sustainable product solutions combine water- and energy-efficient technologies and take responsibility for people, the environment, and our planet.
Whatever you have in mind, we are here to help and support you when it comes to assistance, service, guarantees, or spare parts. Feel free to contact us.
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Planning data
BIM data
Technical data

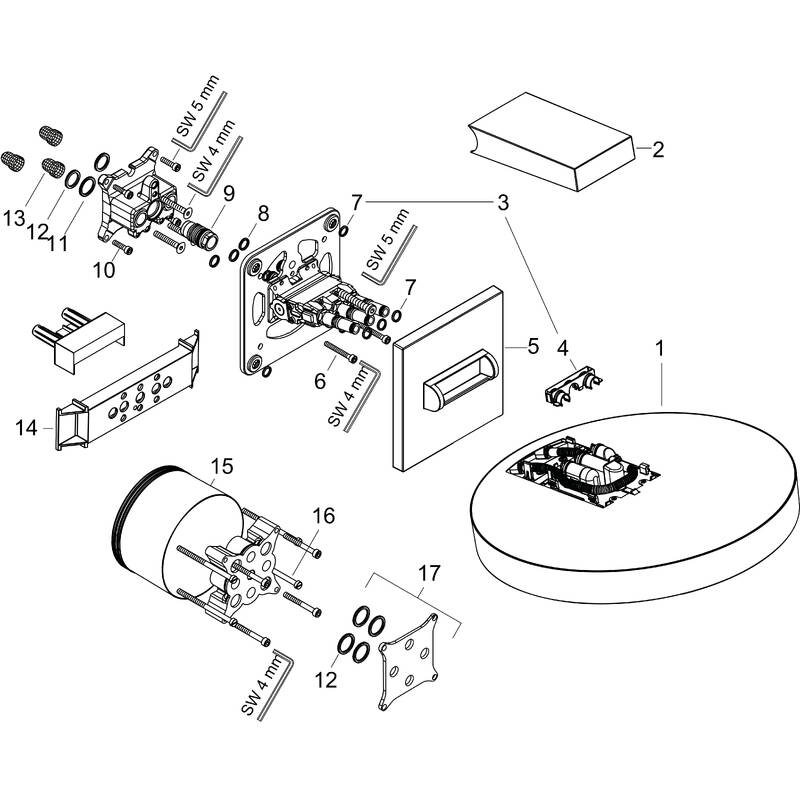

Item no. | DescriptionArticle no. |
---|
a | concealed item01800180 |
1 | head shower93667700 |
2 | cover93524700 |
3 | installation unit cpl.94678000 |
4 | cramp93525000 |
5 | escutcheon93523700 |
6 | hexagon socket screw M5x4097673000 |
7 | O-ring 9x298119000 |
8 | O-ring 10x298170000 |
9 | O-ring 17x298199000 |
10 | set of screws96525000 |
11 | O-ring 18x298181000 |
12 | O-ring 16x298133000 |
13 | filter98513000 |
14 | fit-up aid92540000 |
15 | extension 25 mm13595000 |
16 | set of fixing screws97747000 |
17 | compensation set 1°95521000 |
