Raindrain Complete set waste set 90 XXL

Complete set waste set 90 XXL
Complete set waste set 90 XXL
Finish Chrome

Art. no. 60067000

Find a specialist dealer Details
Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Compare products product added Product saved for 30 daysTo the Product Comparison The product could not be saved.
Please try again.
Trust in highest quality

Five-year manufacturer's guarantee

Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.

Alternative products

Similar products

Angle valve S outlet G 3/8

 Angle valve S outlet G 3/8
Angle valve E outlet G 3/8

 Angle valve E outlet G 3/8
Angle valve E outlet G 1/2

 Angle valve E outlet G 1/2
Angle valve with microfilter outlet G 3/8

 Angle valve with microfilter outlet G 3/8
Cover

 Cover
Angle valve with cover outlet G 3/8

 Angle valve with cover outlet G 3/8
Waste set non-closing for washbasins

 Waste set non-closing for washbasins
Waste set push-open for basin and bidet mixers

 Waste set push-open for basin and bidet mixers
Waste set push-open for basin and bidet mixers

 Waste set push-open for basin and bidet mixers
Cup-shaped trap easy to install

 Cup-shaped trap easy to install
Cup-shaped trap standard model

 Cup-shaped trap standard model

Article features

  • suitable for shower trays with Ø 90 mm waste outlet
  • drain performance 51 l/min at 15 mm water level
  • waste pipe Ø 50 mm
  • stainless steel finish set
  • opening for cleaning

Download area

Product data sheet (PDF)

Planning data

Technical data

Instructions

Installation information

Find plumber Assembly instruction PDF, 1.6 MB

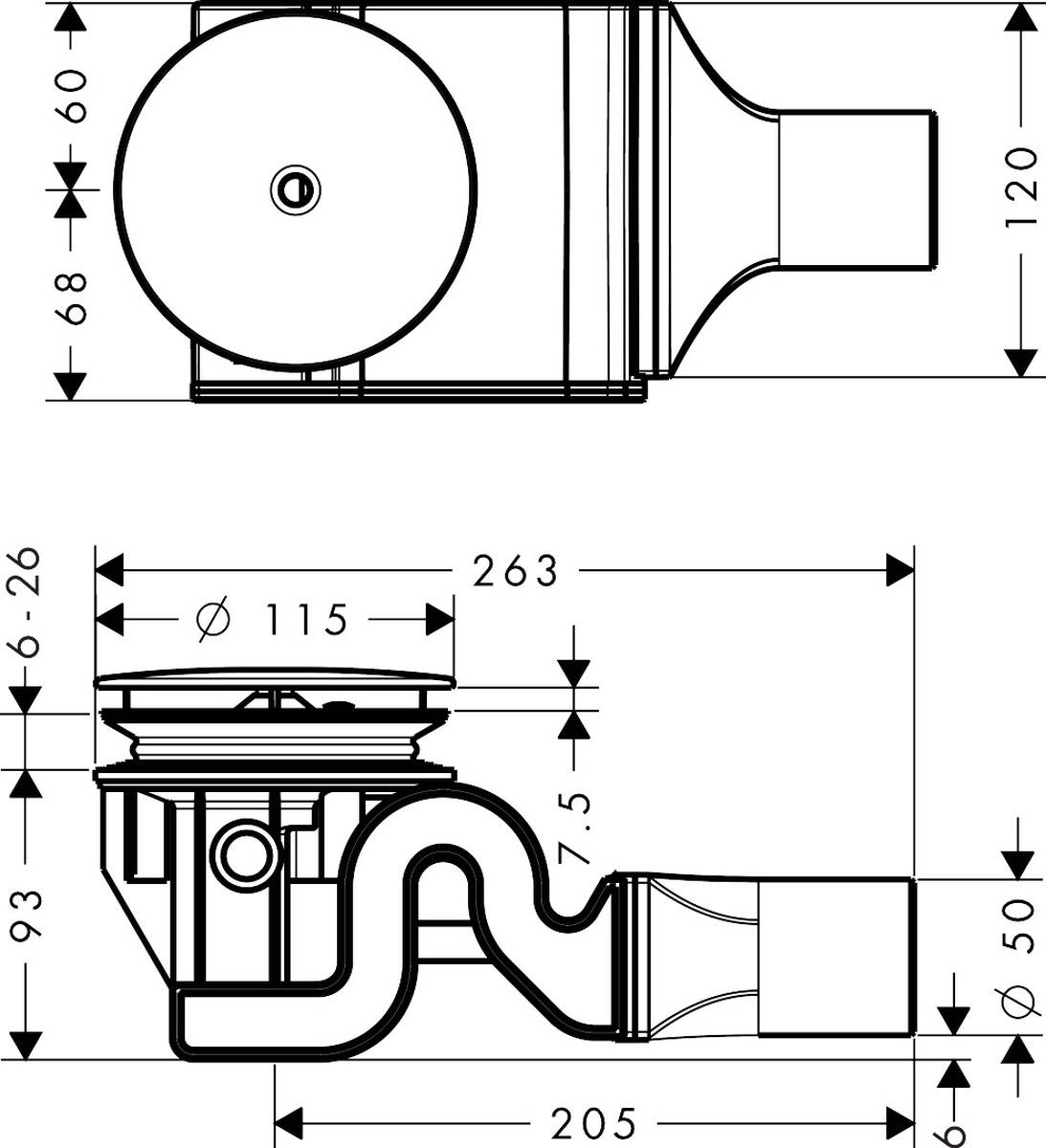

Scale drawing
Insallationsbeispiel

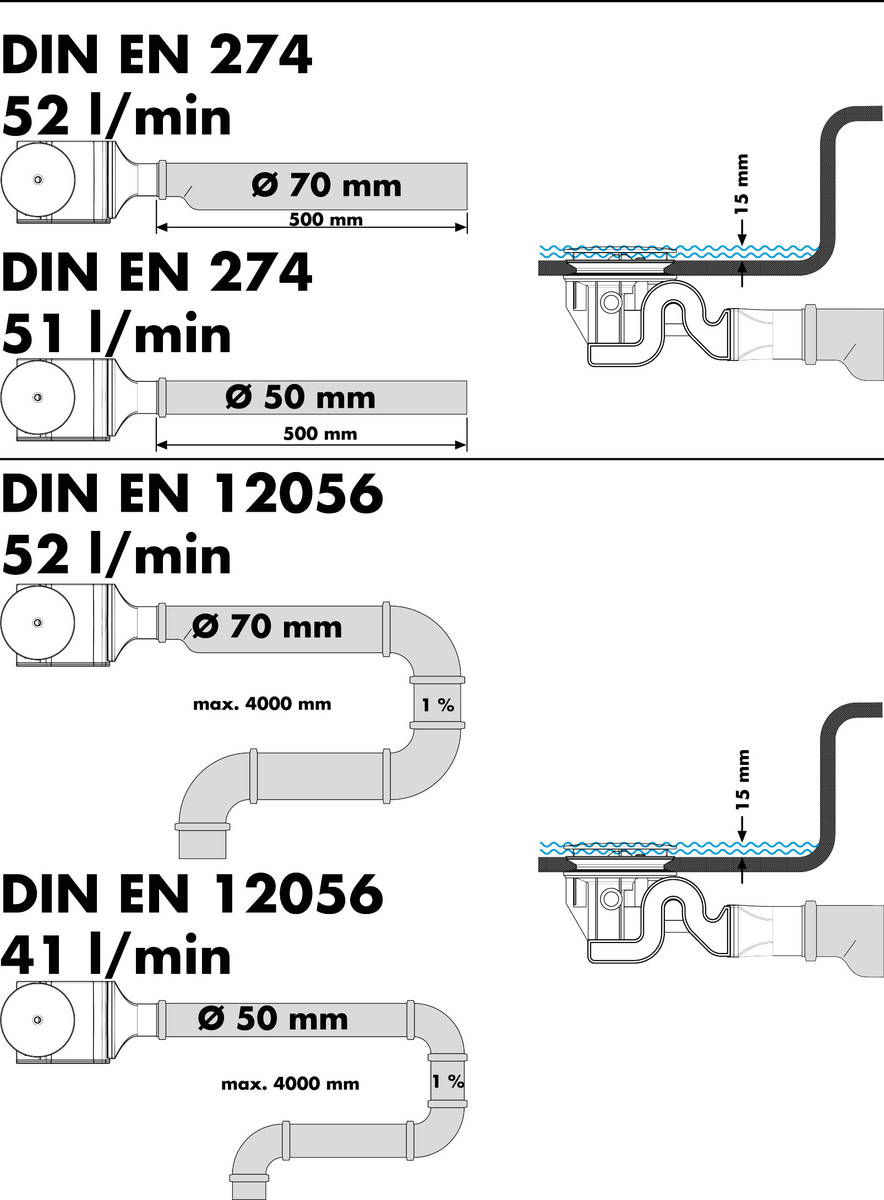

Installation example

Scope of supply

  • complete set
  • seals
  • mounting material
  • building protection cover
  • assembly instruction

Spare parts for build year 04/08

View older models in the spare parts catalogue

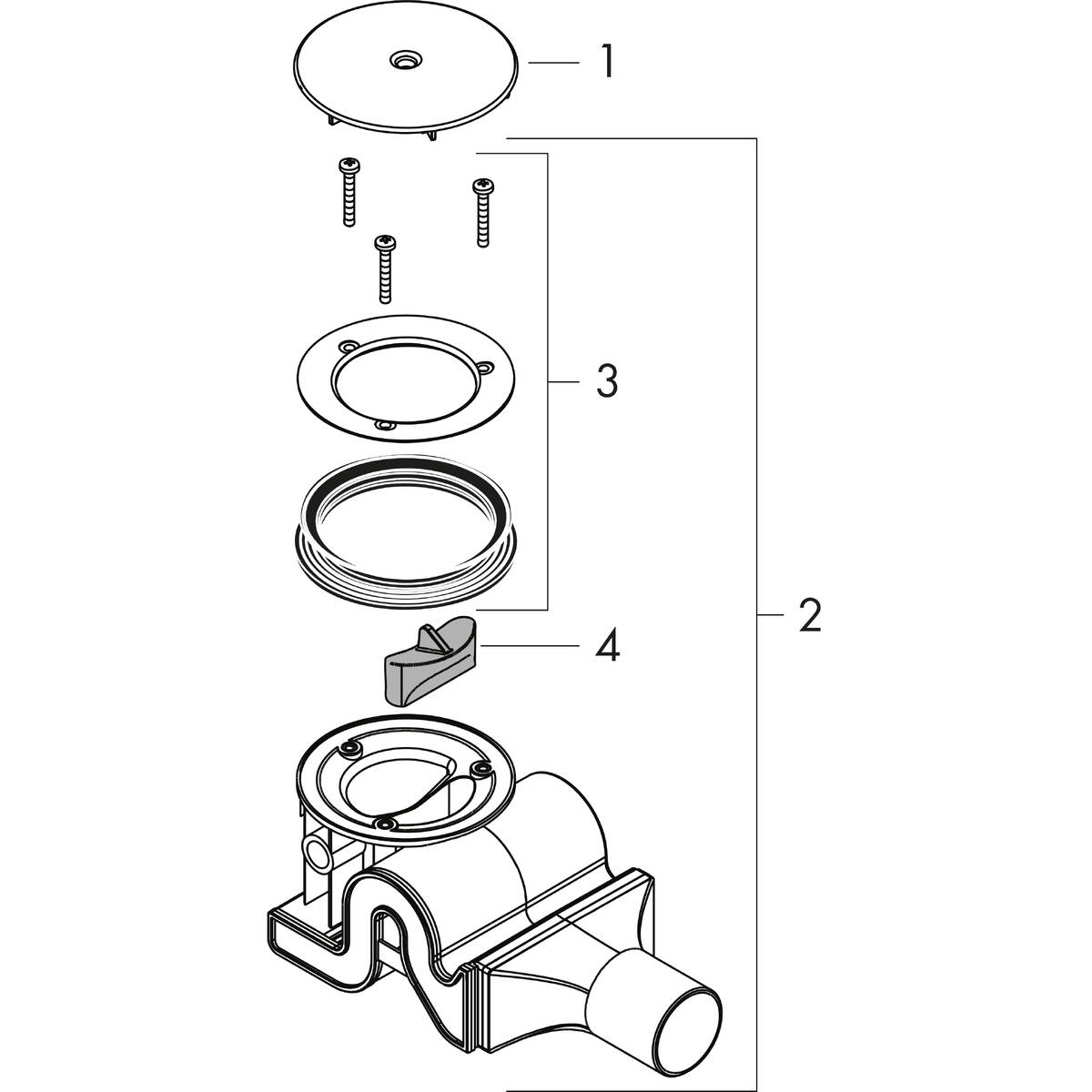

Spare parts for products 60067000
Spare parts for products 60067000
Item no. DescriptionArticle no.
1 Finish set60066000
2 concealed item60065180
3 sealing set92733000
4 plug92734000
More information in the spare parts catalogue
