Discontinued product

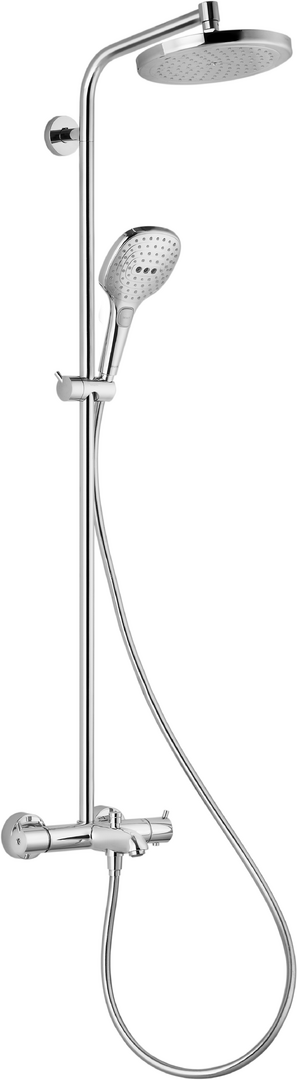

Raindance S Showerpipe 220 1jet with bath thermostat NJ dealer

Showerpipe 220 1jet with bath thermostat NJ dealer Showerpipe 220 1jet with bath thermostat NJ dealer

Art. no. 26173007

Find the right spare part
Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Find a specialist dealer
Raindance S Showerpipe 220 1jet with bath thermostat NJ dealer

Find the right spare part

+
_
{{part.number}}
{{part.text}} Art. no.  {{part.articleNumber}}

Installation information

Installation guide
Installation guide

Download the guide and get going

Download Guide
Professional installation
Professional installation

Leave it to the professionals

Find installer

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Scope of supply

  • Showerpipe with bath thermostat
  • escutcheons
  • S-connections
  • mounting material
  • assembly instruction

Article features

  • consists of: overhead shower, hand shower, bath thermostat, shower hose, slider
  • overhead shower Croma 220 Air
  • shower head size overhead shower: 220 mm
  • spray type overhead shower: RainAir

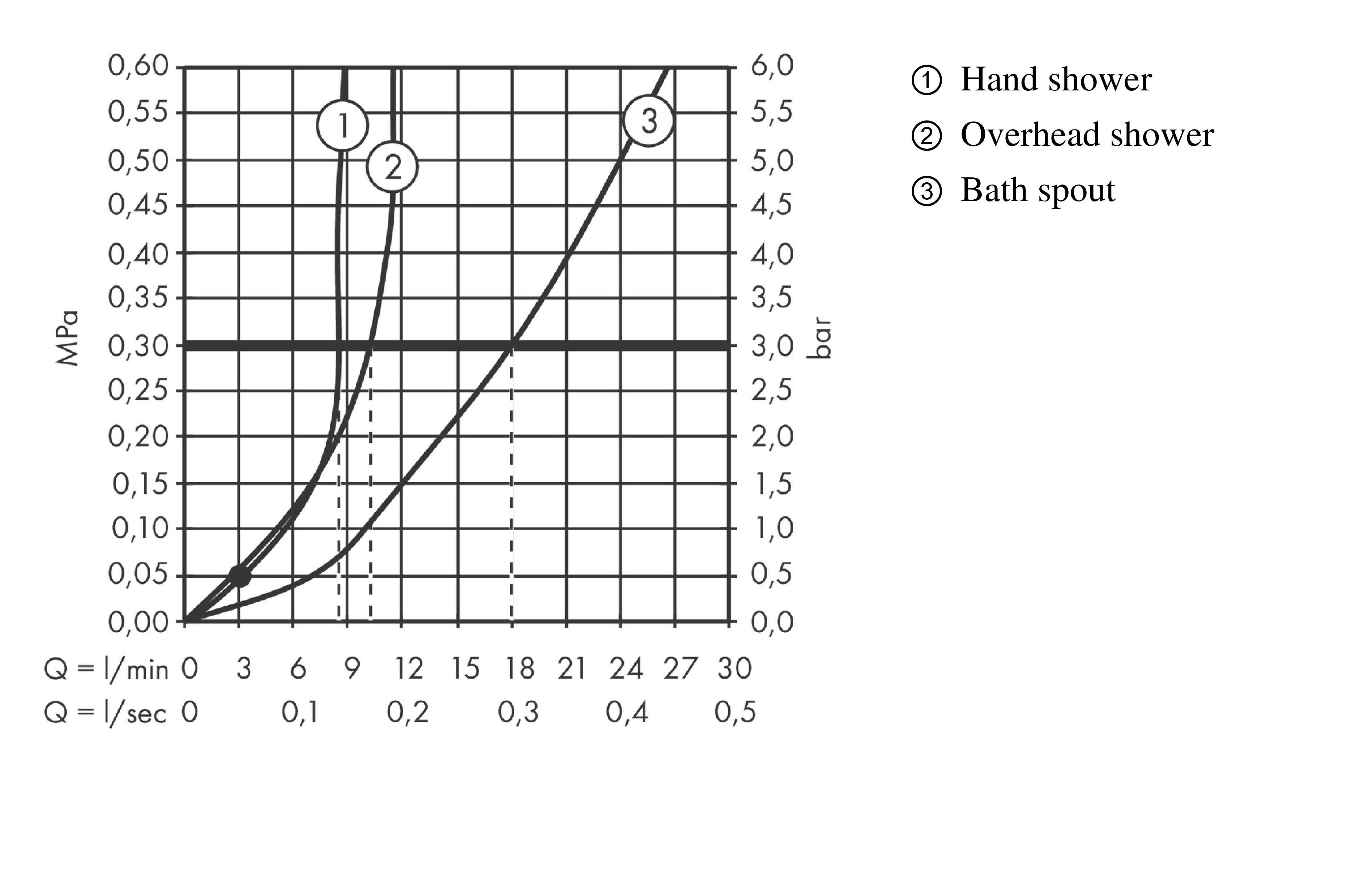

  • flow rate of hand shower at 3 bar: 8,1 l/min
  • maximum flow rate for Showerpipe at 3 bar: 18 l/min
  • minimum flow pressure: 0,5 bar
  • max. operating pressure: 10 bar
  • ball-joint: overhead shower angle adjustable
  • height-adjustable slider
  • shower arm length overhead shower: 350 mm
  • thermostat Ecostat Comfort
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • outlets controlled via turning handle
  • suitable for continuous flow water heaters
  • mounting type: exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • intrinsically safe against backflow
  • shower bar diameter: 22 mm
  • 3 functions

Download area

Product data sheet (PDF)

Planning data

BIM data

Technical data

Instructions

We endeavour to always provide up-to-date, complete information on our website.
However, we do not assume any liability for the up-to-dateness, accuracy, completeness or suitability of the information for particular uses.
