Discontinued product

Raindance S Showerpipe 300 1jet with bath thermostat eCom

Showerpipe 300 1jet with bath thermostat eCom Showerpipe 300 1jet with bath thermostat eCom
Change variant Showerpipe 300 1jet with bath thermostat eCom

Select a variant

Finish Chrome

Art. no. 26164007

Find the right spare part
Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Find a specialist dealer
Raindance S Showerpipe 300 1jet with bath thermostat eCom

Find the right spare part

+
_
{{part.number}}
{{part.text}} Art. no.  {{part.articleNumber}}

Installation information

Installation guide
Installation guide

Download the guide and get going

Download Guide
Professional installation
Professional installation

Leave it to the professionals

Find installer

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Scope of supply

  • Showerpipe with bath thermostat
  • escutcheons
  • S-connections
  • mounting material
  • assembly instruction

Article features

  • consists of: overhead shower, hand shower, bath thermostat, shower hose, slider
  • overhead shower Raindance S 300 Air
  • shower head size overhead shower: 300 mm
  • spray type overhead shower: RainAir
  • function from: 6 l/min

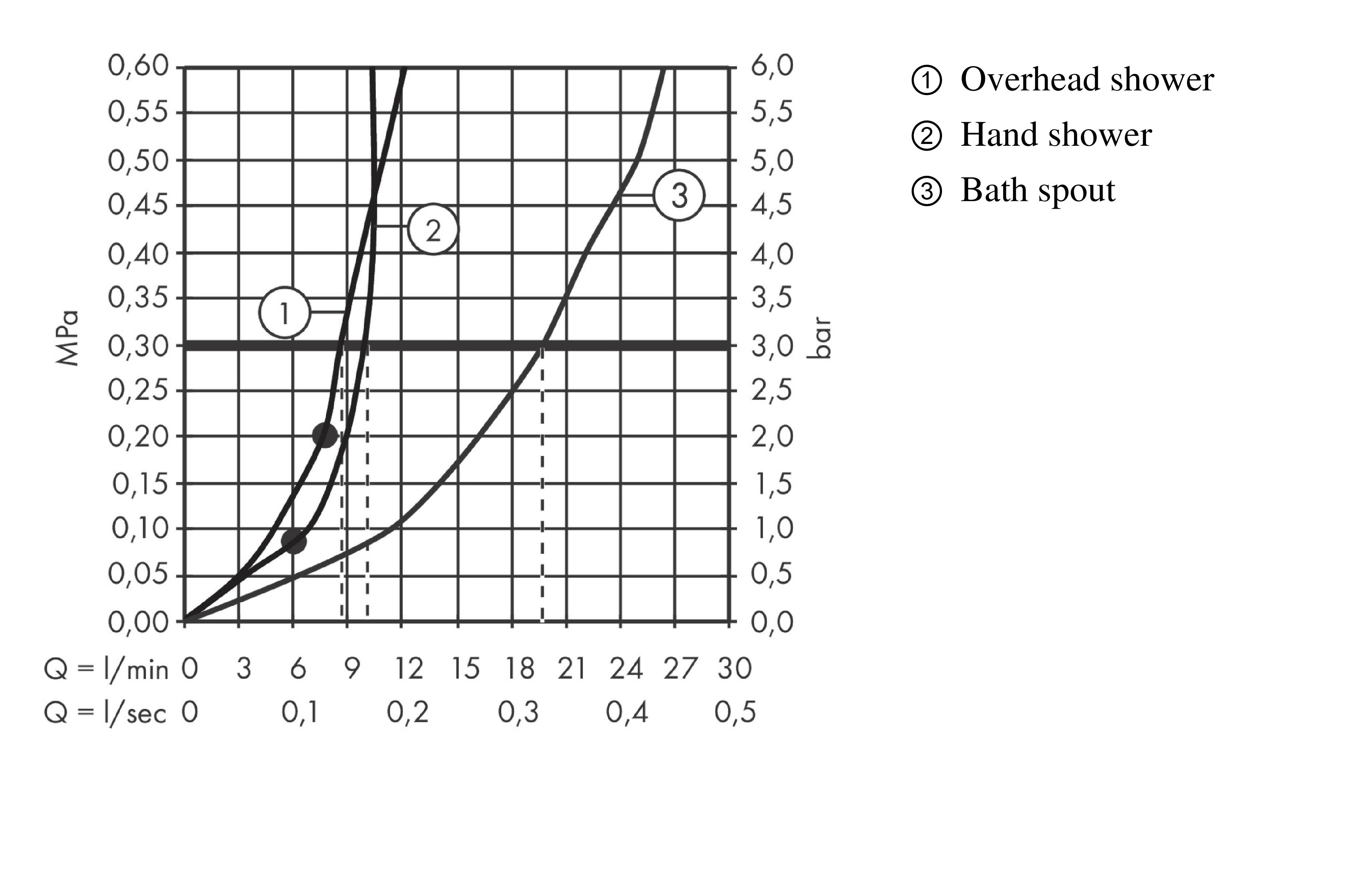

  • flow rate of hand shower at 3 bar: 9,8 l/min
  • maximum flow rate for Showerpipe at 3 bar: 19,5 l/min
  • minimum flow pressure: 2,2 bar
  • max. operating pressure: 10 bar
  • ball-joint: overhead shower angle adjustable
  • shower arm length overhead shower: 390 mm
  • thermostat Ecostat Comfort
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • outlets controlled via turning handle
  • suitable for continuous flow water heaters
  • mounting type: exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • intrinsically safe against backflow
  • shower bar diameter: 22 mm
  • 3 functions

Download area

Product data sheet (PDF)

Technical data

Instructions

We endeavour to always provide up-to-date, complete information on our website.
However, we do not assume any liability for the up-to-dateness, accuracy, completeness or suitability of the information for particular uses.
