Raindance Rainmaker Overhead shower 680/460 3jet without lighting
Art. no. 28417000
Please try again.
Please try again.
Innovative technologies
Large scale shower experience with plenty of comfort and enjoyment
The rectangular Raindance Rainmaker overhead shower 680/460 3jet with fully chrome-plated metal spray disc embodies showering indulgence on a grand scale. Measuring 680 x 460 mm, it makes for an impressively large spa area. Its purist, elegant design and high-quality metal surfaces visibly enhance your bathroom and transform it into your own personal spa.
Three jet types - for an indulgent showering experience that is a cut above the rest
Do you love to relax in the shower? Or do you prefer to indulge in an invigorating, energising shower? This overhead shower offers you three captivating jet types. Select the RainAir jet type to enjoy the feel-good effect with soft shower rain. When plump, air-enriched droplets rain down on you over the entire width of the overhead shower, it feels like a tonic for the soul. Or with RainAir, you can enjoy a luxuriously soft, lush rain jet. The WhirlAir jet offers you more intensive nourishment. Here, three dynamic massage sprays, consisting of three individual jets, tumble soothingly onto the skin.
Intelligent functions make maintenance easy and efficient
Limescale deposits on the silicone nozzles? No problem. Removing them is easy: Thanks to QuickClean technology, a slight rub is all that is needed to make the spray pattern perfect again. It really couldn’t be simpler.
Five-year manufacturer's guarantee
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Similar products
You may also like
Article features

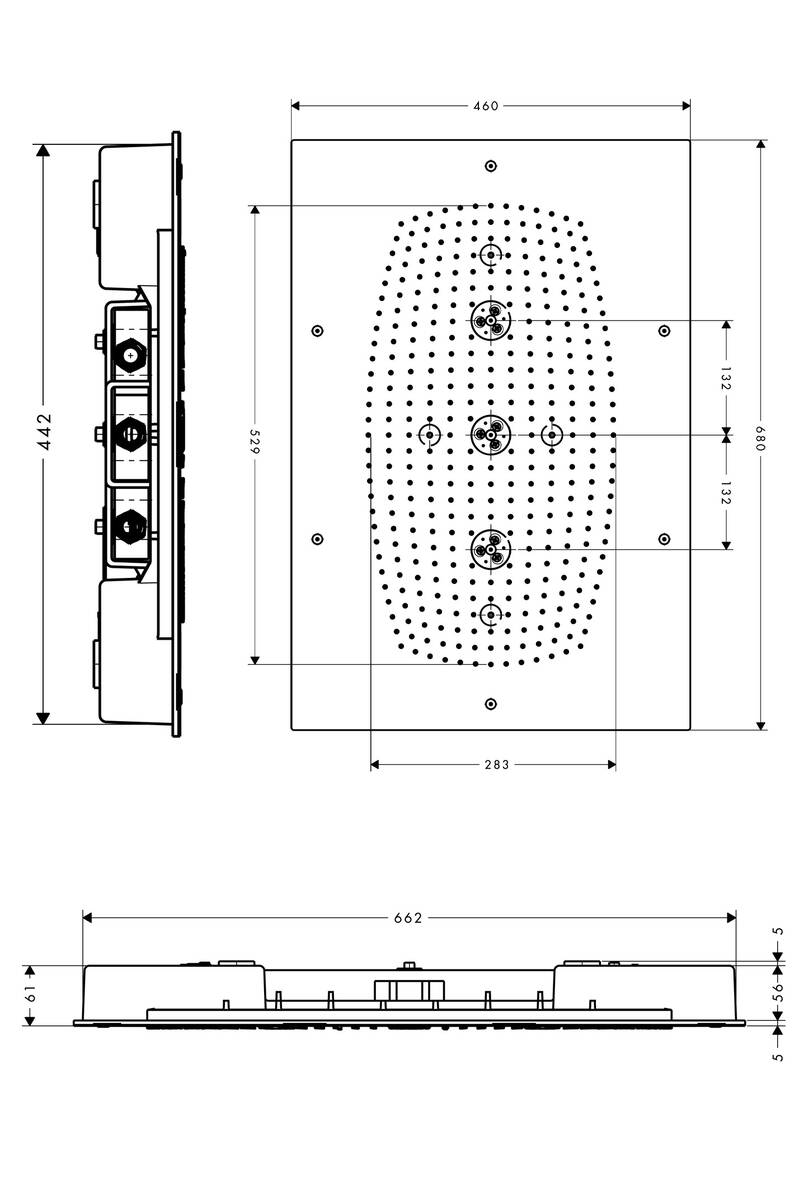

- shower head size: 680 x 460 mm
- spray type: RainAir, Whirl, RainAir XL

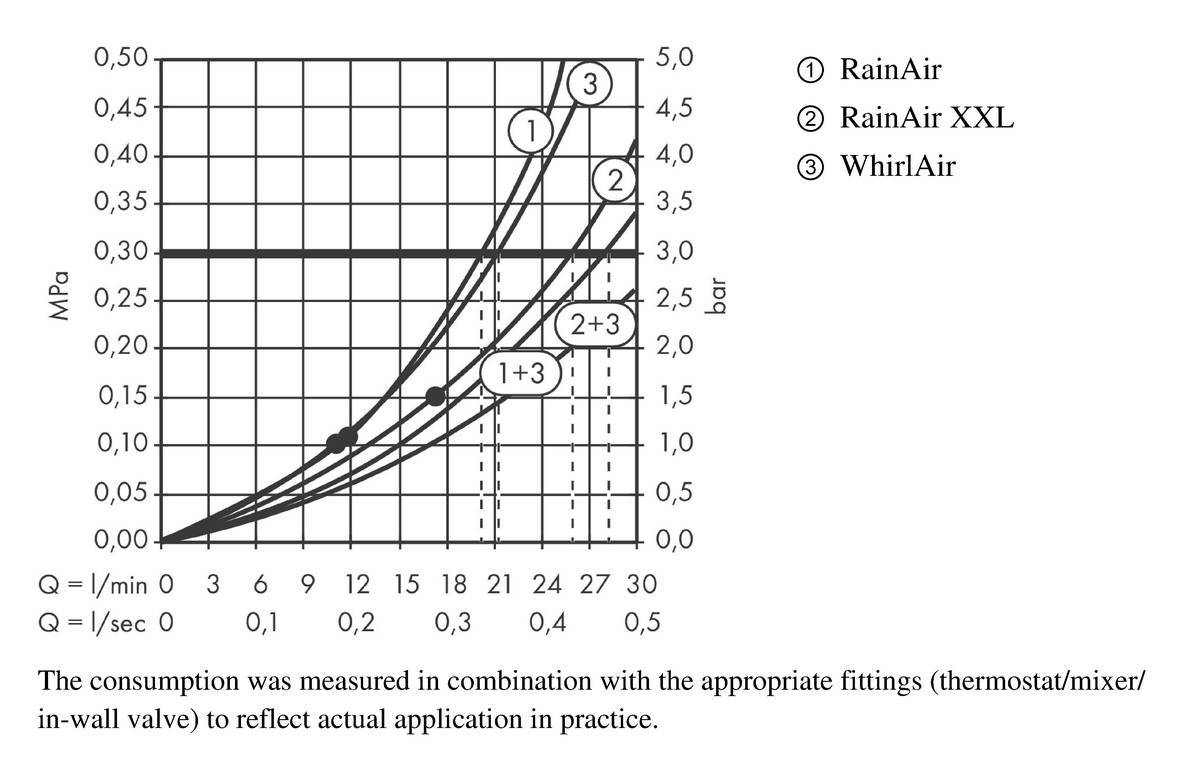

- flow rate RainAir spray (at 0.3 MPa): 20 l/min
- flow rate RainAir XL (at 0.3 MPa): 24 l/min
- flow rate WhirlAir spray (at 0.3 MPa): 22 l/min
- the 3 spray zones must be controlled via 3 valves or a diverter valve with 3 outlets
- material spray disc: metal
- installation: installation type:flush with the ceiling on basic body
- connection dimension: DN15
- TÜV certified
Download area
Product data sheet (PDF)BIM data
- BIM data (3DS) 3DS, 374 KB
- BIM data (Revit) FPX, 1.5 MB
- BIM data (Autodesk FBX) FBX, 272 KB
- BIM data (STL) STL, 442 KB
- BIM data (Wavefront OBJ) ZIP, 174 KB
- BIM data (ArchiCAD) GSM, 2.1 MB
- BIM data (AutoCAD 3D) DWG, 2.4 MB
- BIM data (AutoCAD 2D) DWG, 55 KB
- BIM data (IFC) IFC, 1.5 MB
- BIM data (Sketchup) SKP, 1.4 MB
- BIM data on BIMobject
Certificates
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

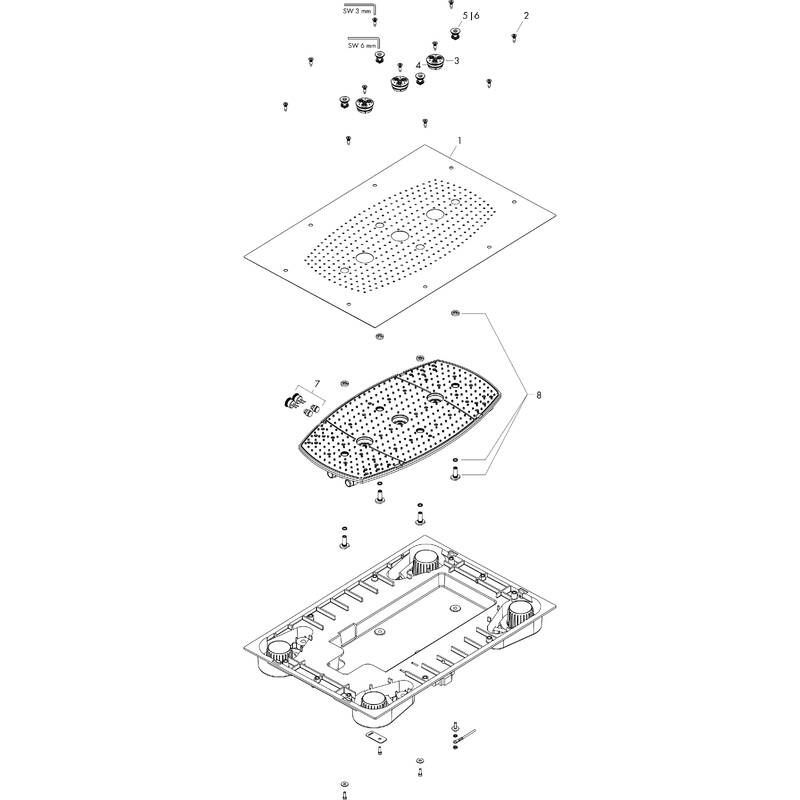

Spare parts for build year 06/08
View older models in the spare parts catalogue
| Item no. | DescriptionArticle no. |
|---|
| a | concealed item28414180 |
| b | spray insert92125000 |
| 1 | cover plate95138000 |
| 2 | screw97723000 |
| 3 | spray body97724000 |
| 4 | O-ring 15x298163000 |
| 5 | air jet97725000 |
| 6 | air jet (special set without air)98871000 |
| 7 | set of non return valves DW 1597350000 |
| 8 | set of screws98820000 |
