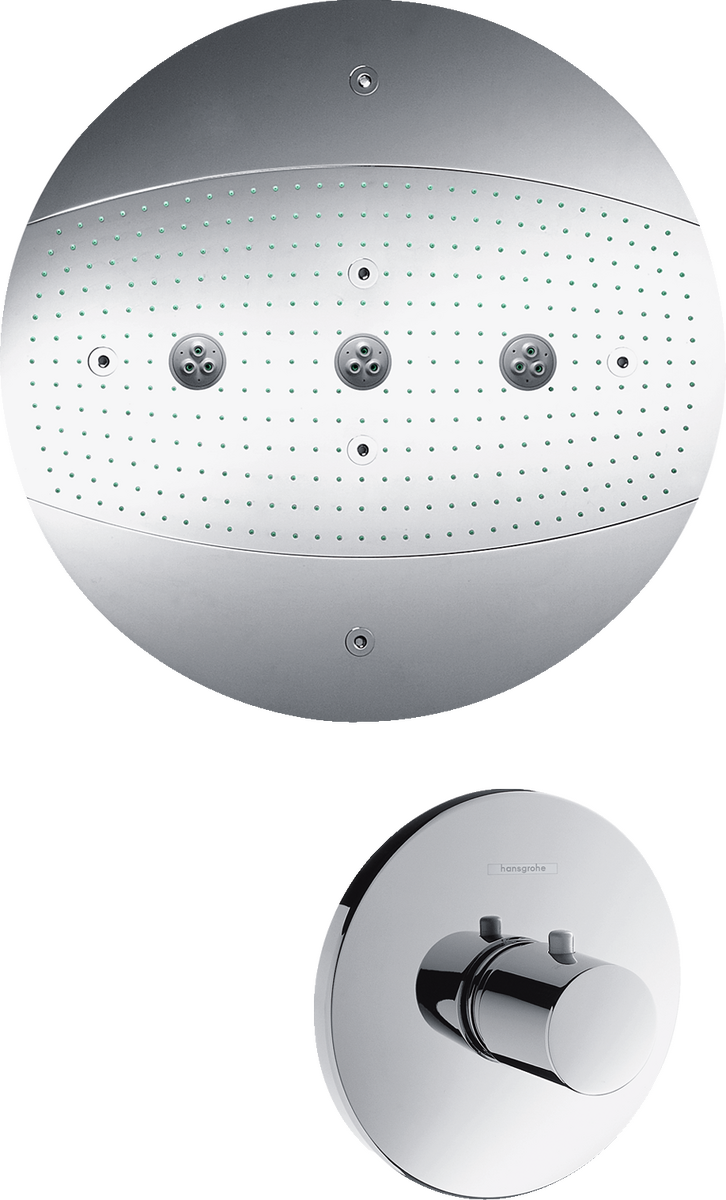

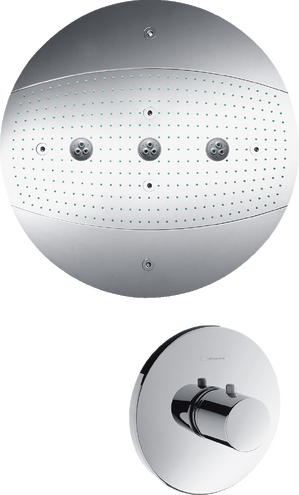

Raindance Rainmaker Overhead shower 600 3jet without lighting set
Art. no. 28403000
Remember product
Product noted
Product saved for 30 daysTo the notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
product added
Product saved for 30 daysTo the Product Comparison
The product could not be saved.
Please try again.
Please try again.
Product features
Innovative technologies
Awards
Design Awards
Trust in highest quality
Five-year manufacturer's guarantee
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Alternative products
Similar products
Matching products
You may also like
Article features
- consists of: overhead shower, shower thermostat

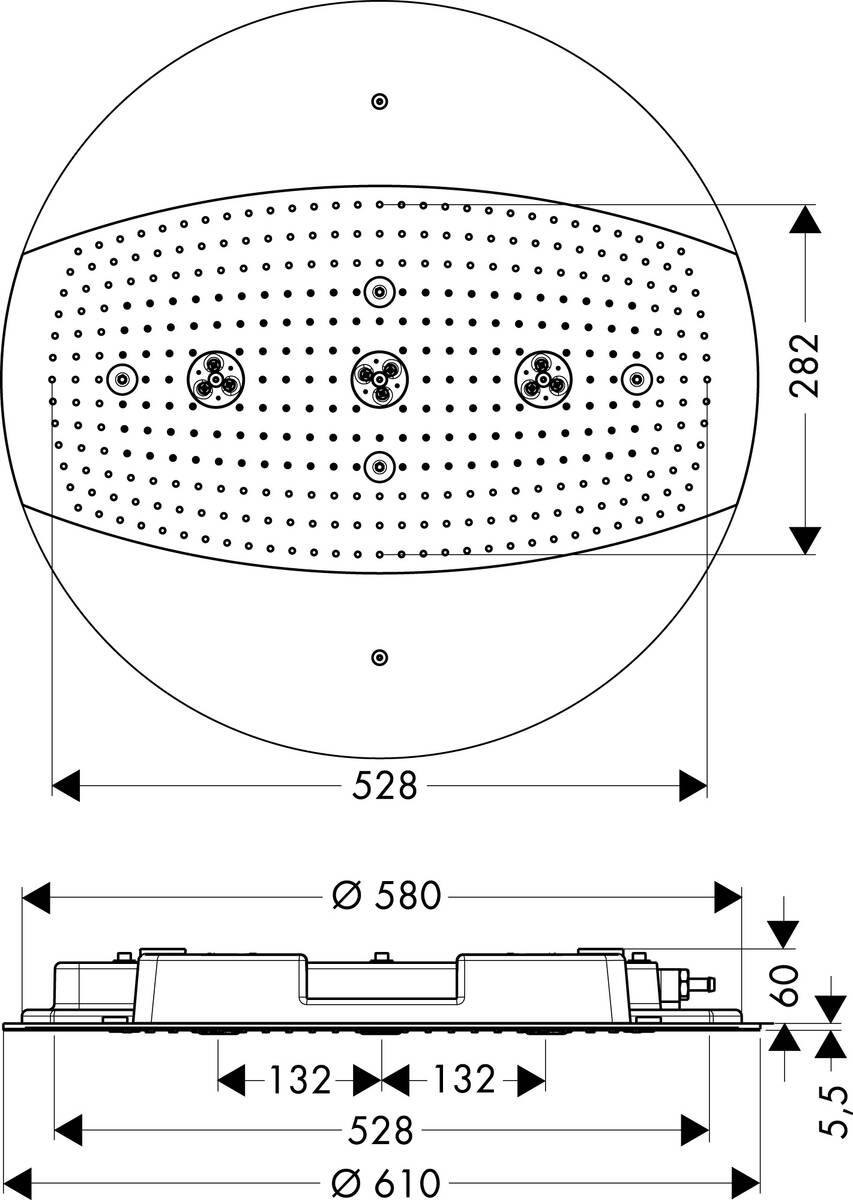

- shower head size: 600 mm
- flow rate RainAir spray (at 3 bar): 20 l/min
- flow rate RainAir XL (at 3 bar): 26 l/min
- flow rate WhirlAir spray (at 3 bar): 21 l/min
- the 3 spray zones must be controlled via 3 valves or a diverter valve with 3 outlets
- installation: flush with the ceiling
- TÜV certified
Download area
Product data sheet (PDF)BIM data
- BIM data (STL) STL, 462 KB
- BIM data (Wavefront OBJ) ZIP, 196 KB
- BIM data (Revit) FPX, 1.5 MB
- BIM data (Sketchup) SKP, 1.5 MB
- BIM data (AutoCAD 2D) DWG, 54 KB
- BIM data (AutoCAD 3D) DWG, 1.6 MB
- BIM data (Filmbox 3D) FBX, 307 KB
- BIM data (3DS) 3DS, 382 KB
- BIM data (IFC) IFC, 1.6 MB
- BIM data (ArchiCAD) GSM, 2.2 MB
- BIM data on BIMobject
Technical data
Instructions
- Assembly instruction (Overhead Shower) PDF, 57 MB
- Service instruction ( Back flow preventer) PDF, 493 KB
- Service instruction ( Back flow preventer) PDF, 970 KB
- Service instruction ( Knop / handle for thermostat) PDF, 46 KB
- Service instruction ( Spray body) PDF, 902 KB
- Service instruction ( Connecting hose) PDF, 128 KB
Certificates
Certificates
Installation information
Required parts
Scope of supply
- overhead shower set
- mixing unit
- mounting material
- assembly instruction

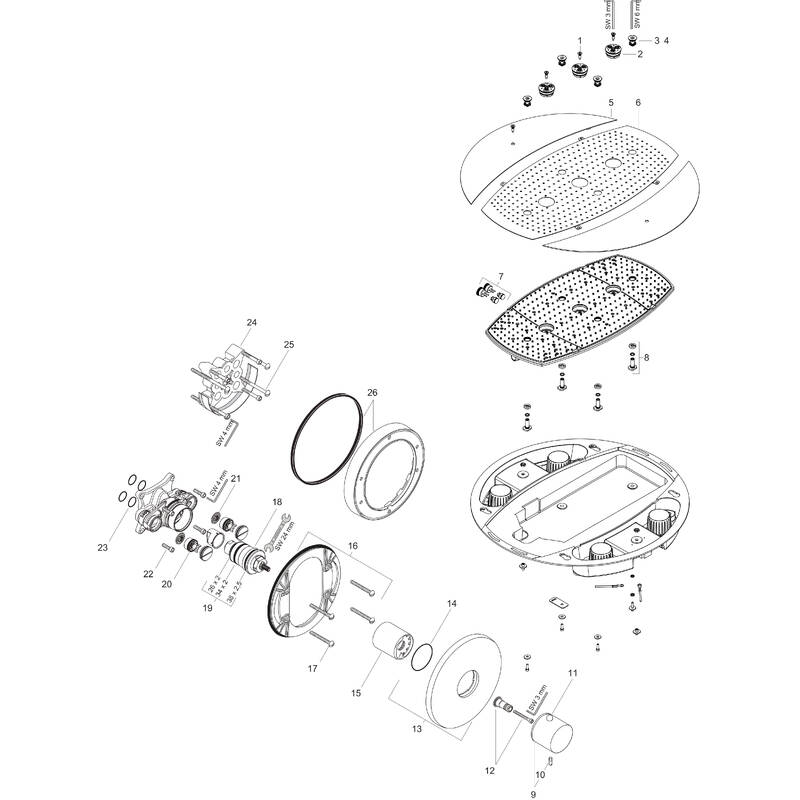

Spare parts for build year 09/05
View older models in the spare parts catalogue
| Item no. | DescriptionArticle no. |
|---|
| a | air jet (special set without air)98871000 |
| b | concealed item28412180 |
| c | spray insert92125000 |
| 1 | screw97723000 |
| 2 | spray body97724000 |
| 3 | air jet97725000 |
| 4 | O-ring 15x298163000 |
| 5 | sidecover97728000 |
| 6 | cover97726000 |
| 7 | set of non return valves DW 1597350000 |
| 8 | set of screws98820000 |
| 9 | handle for thermostat38391000 |
| 10 | hollow set screw M5x1697666000 |
| 11 | pushbutton97792000 |
| 12 | adapter for handle96435000 |
| 13 | escutcheon Ø 170 mm96452000 |
| 14 | O-ring 48x598174000 |
| 15 | sleeve97439000 |
| 16 | sub plate96447000 |
| 17 | set of fixing screws96454000 |
| 18 | thermostat cartridge96633000 |
| 19 | sealing set96636000 |
| 20 | non return valve96655000 |
| 21 | filter97367000 |
| 22 | set of screws96525000 |
| 23 | O-ring 16x298133000 |
| 24 | extension 25 mm13595000 |
| 25 | set of fixing screws97747000 |
| 26 | extension 22 mm (Ø 170 mm)13596000 |
