Art. no. 15473000
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.

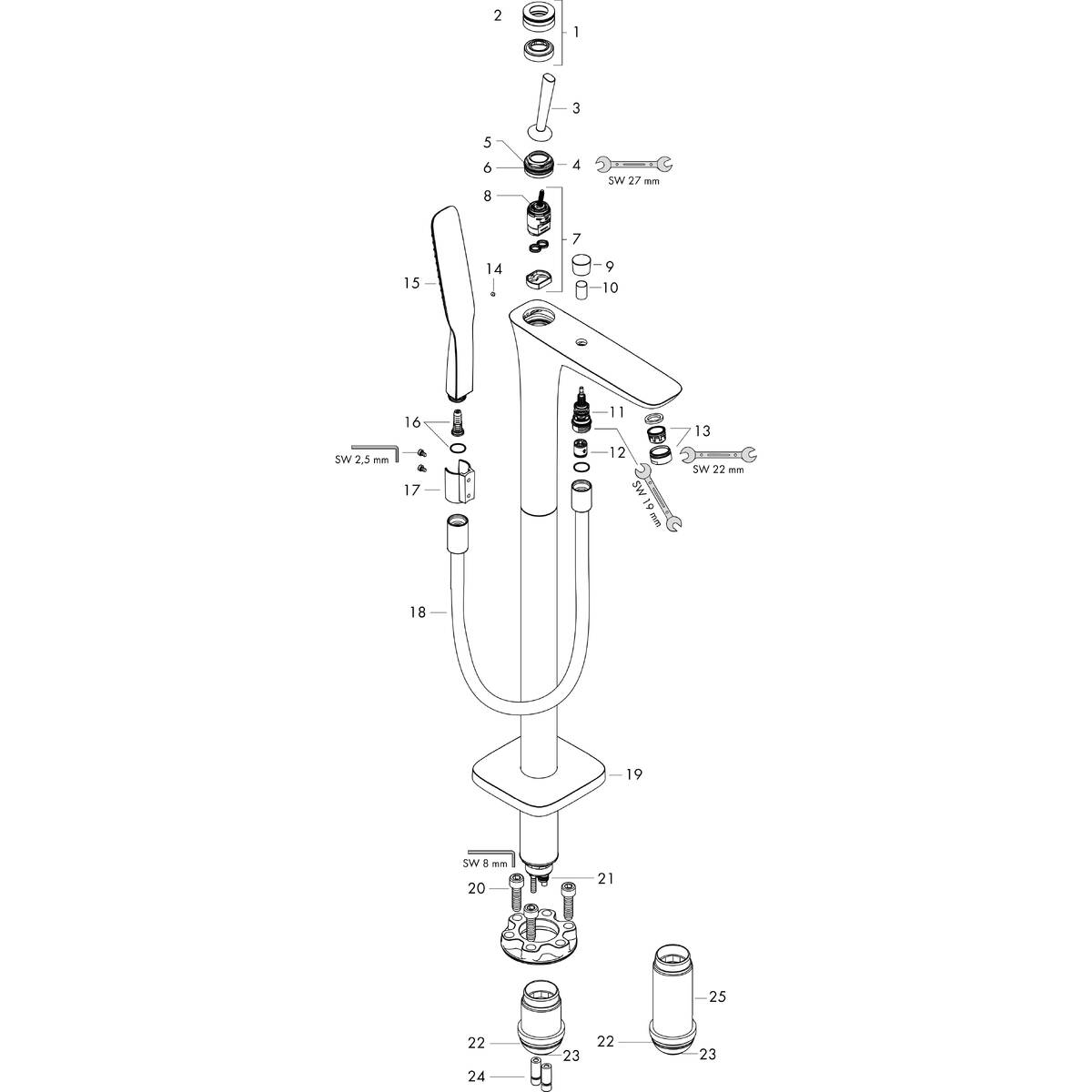

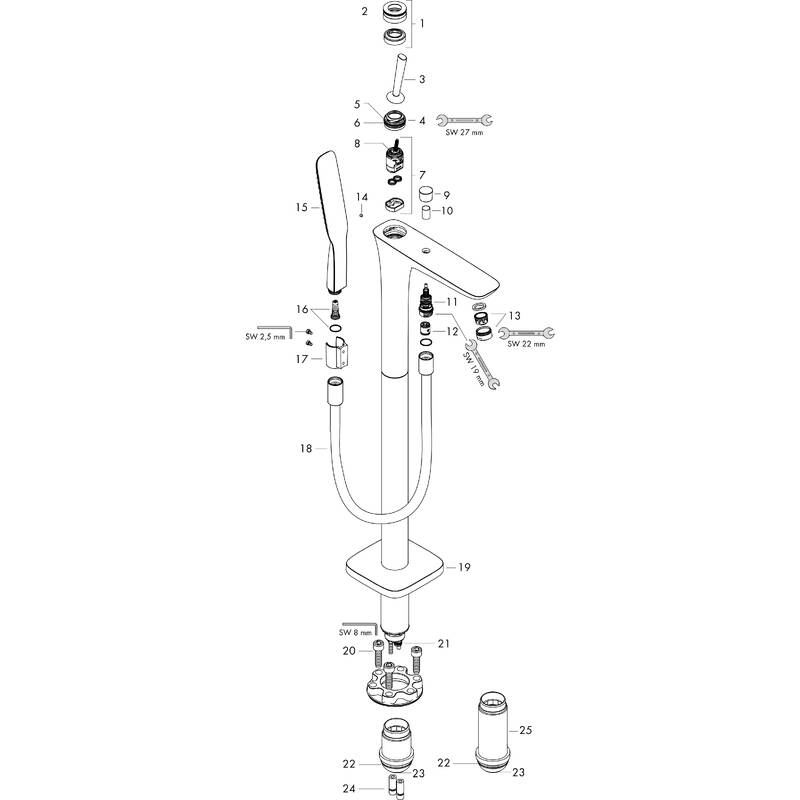

| Item no. | DescriptionArticle no. |
|---|
| a | concealed item10452180 |
| b | service tool for disassembling the handle92124000 |
| c | escutcheon (special)92721000 |
| 1 | escutcheon Ø 37 mm95288000 |
| 2 | O-ring 33x1,598164000 |
| 3 | handle95287000 |
| 4 | nut97157000 |
| 5 | O-ring 30x1,598433000 |
| 6 | O-Ring 30x298186000 |
| 7 | cartridge, assy96339000 |
| 8 | O-ring 21,95x1,7895169000 |
| 9 | diverter knob95284000 |
| 10 | sleeve97979000 |
| 11 | selector97978000 |
| 12 | non return valve97980000 |
| 13 | aerator M24x1 (30 l/min)96512000 |
| 14 | hollow set screw M4x697767000 |
| 15 | handshower28558000 |
| 16 | filter insert97708000 |
| 17 | shower holder, assy96295000 |
| 18 | shower hose 1,25 m28282000 |
| 19 | hexagon socket screw M10x3597670000 |
| 20 | O-ring 9x1,598117000 |
| 21 | O-ring 44x2,598162000 |
| 22 | O-ring 29x398371000 |
| 23 | O-ring 7x298419000 |
| 24 | extension set 60 mm97686000 |
