Art. no. 15081000
Generous proportions, sophisticated technology, intuitive operation. Outstanding design, high safety standards and considerably enhanced comfort: Hansgrohe showers, mixers and thermostats with this trademark extend your ComfortZone.Learn more
Hansgrohe mixers and showers, which are fitted with EcoSmart technology, require up to 60% less water than conventional products – without any loss of comfort. This means you can reduce your water and energy costs and conserve valuable resources.Learn more
Who really likes cleaning? Our invention, QuickClean, rapidly removes dirt and limescale deposits from mixers and showers. Flexible silicon nubs make sure of this. Beware of copies: this QuickClean logo is the only guarantee of genuine Hansgrohe quality.Learn more
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.

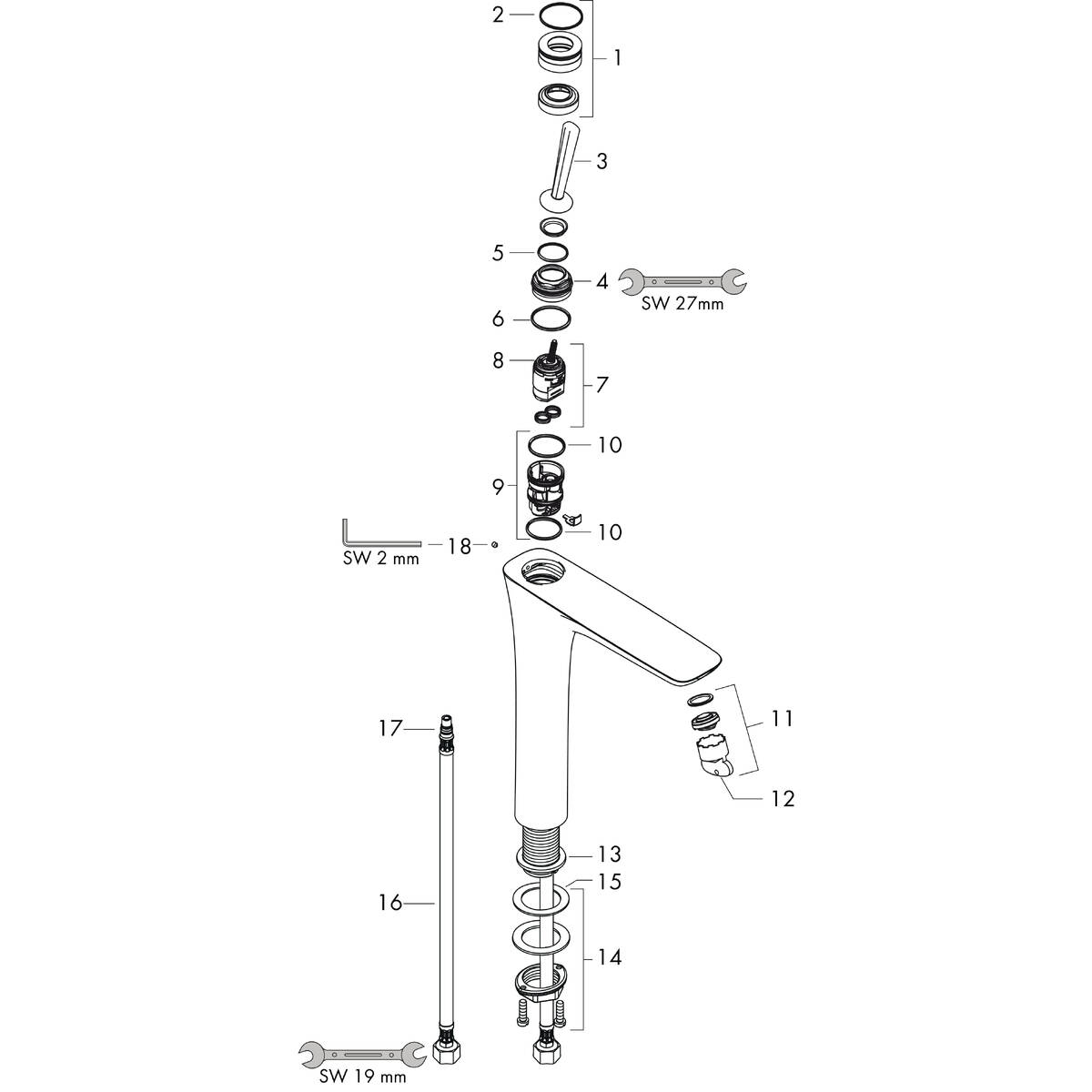

Item no. | DescriptionArticle no. |
---|
b | fixation extension 35 mm13898000 |
c | service tool for disassembling the handle92124000 |
d | escutcheon (special)92721000 |
a | push-open waste set50100000 |
1 | escutcheon Ø 37 mm95288000 |
2 | O-ring 33x1,598164000 |
3 | handle95287000 |
4 | nut97157000 |
5 | O-ring 30x1,598433000 |
6 | O-Ring 30x298186000 |
7 | cartridge, assy96783000 |
8 | O-ring 21,95x1,7895169000 |
9 | adapter for cartridge95289000 |
10 | O-ring 26x298147000 |
11 | aerator M24x1 (5 l/min)95282000 |
12 | special tool95290000 |
13 | flat seal98749000 |
14 | fixing set (Ø 32)13961000 |
15 | lever collar97548000 |
16 | connection hose 600 mm M8x0,75 G3/896556000 |
17 | O-ring 7x1,598422000 |
18 | hollow set screw M4x697767000 |
