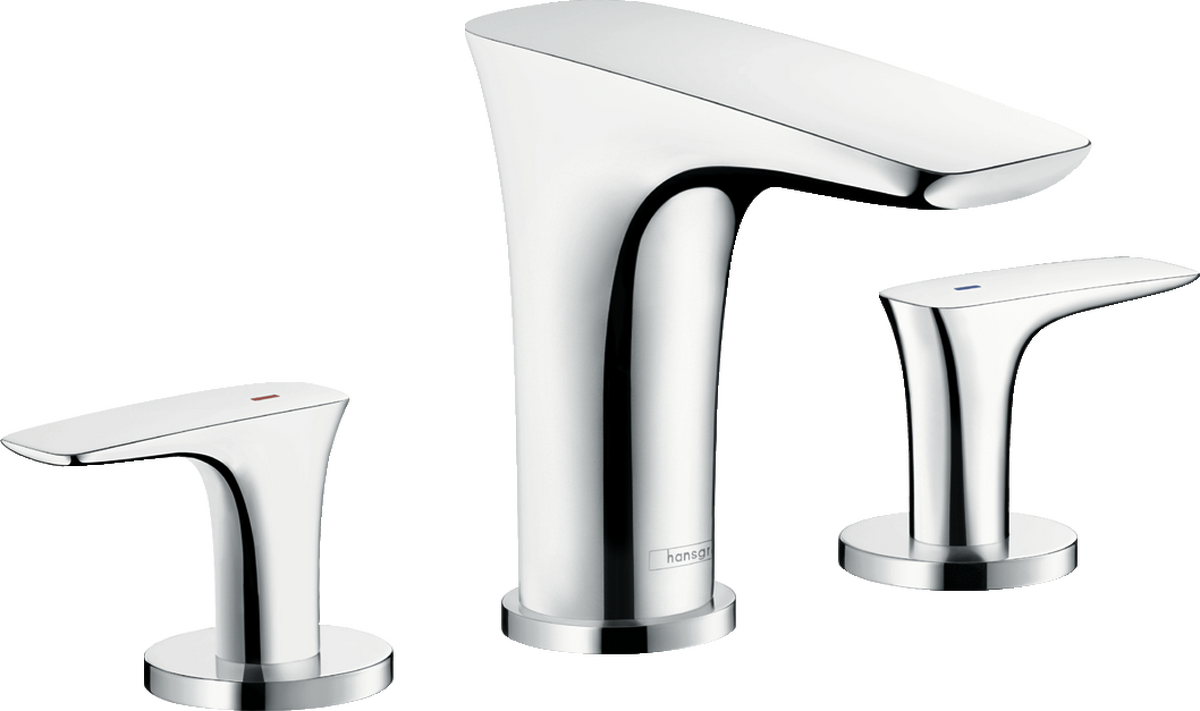

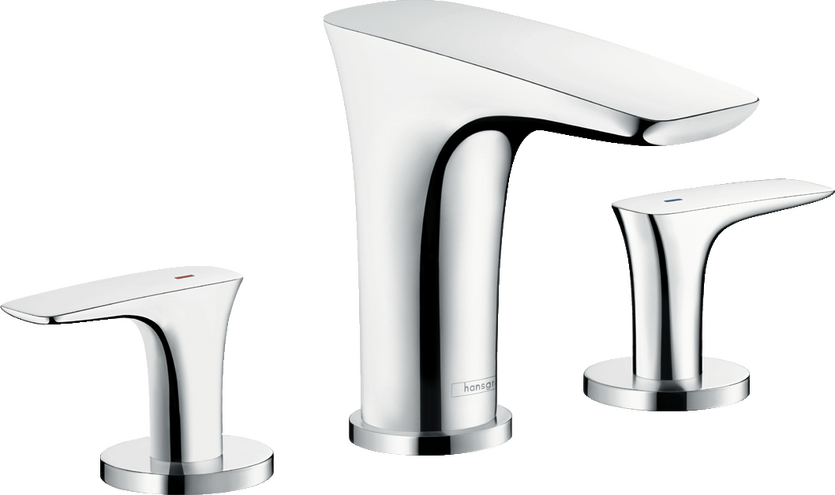

PuraVida 3-hole basin mixer 100 with push-open waste set
Art. no. 15073000
Remember product
Product noted
Product saved for 30 daysTo the notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
product added
Product saved for 30 daysTo the Product Comparison
The product could not be saved.
Please try again.
Please try again.
Product features
Innovative technologies
Trust in highest quality
Five-year manufacturer's guarantee
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Alternative products
Similar products
Matching products
You may also like
Installation information
Scope of supply
- 3-hole basin mixer
- connection hoses
- fixing set
- special tool
- assembly instruction

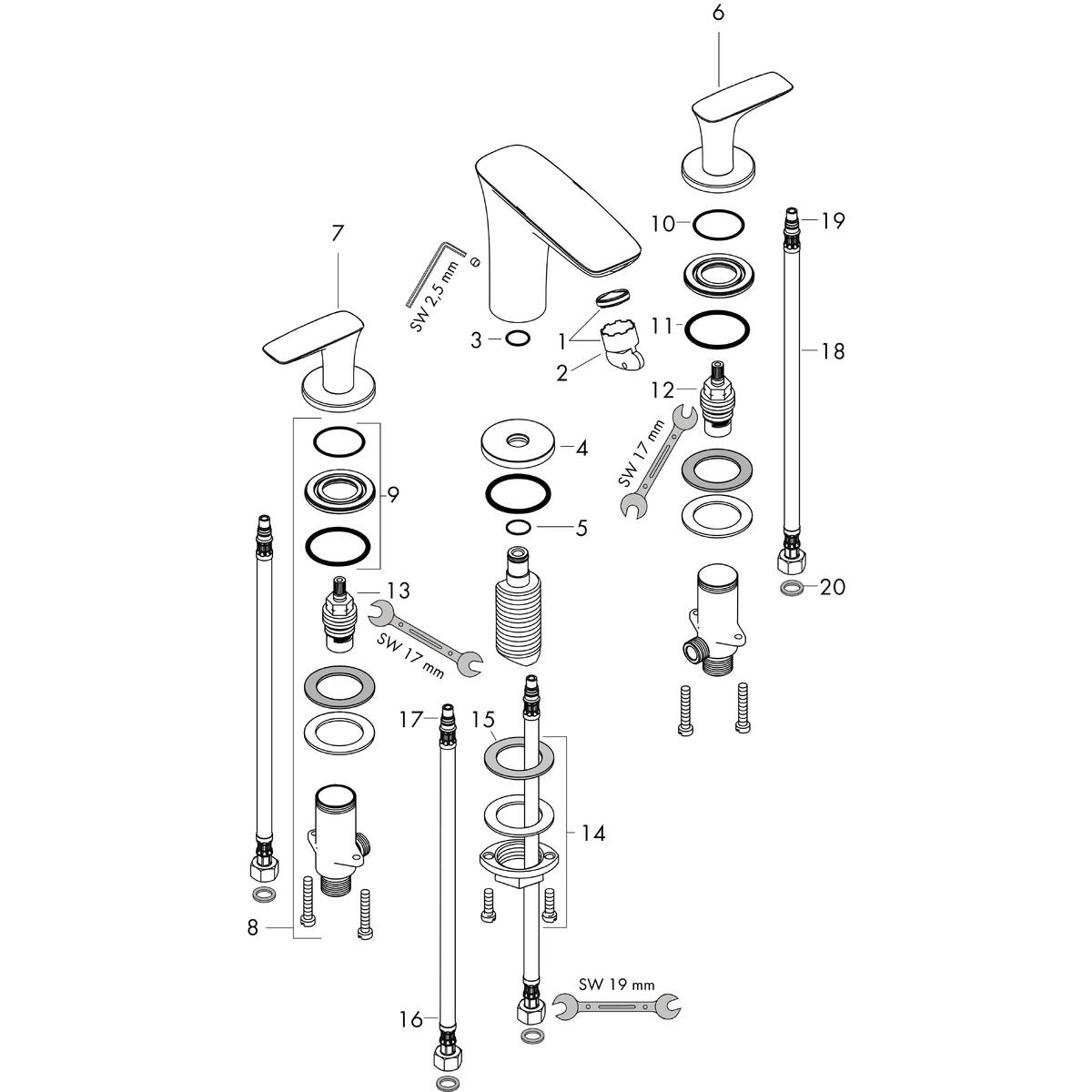

Spare parts for build year 02/11
View older models in the spare parts catalogue
| Item no. | DescriptionArticle no. |
|---|
| a | push-open waste set50100000 |
| b | fixation extension 35 mm13898000 |
| 1 | aerator M24x1 (5 l/min)95282000 |
| 2 | special tool95290000 |
| 3 | O-ring 18x2,598139000 |
| 4 | escutcheon for spout95787000 |
| 5 | O-ring 11x298127000 |
| 6 | handle for cold water95271000 |
| 7 | handle for hot water95270000 |
| 8 | stop valve cpl.97357000 |
| 9 | nut92854000 |
| 10 | O-Ring 32x2,596364000 |
| 11 | O-ring 40x392634000 |
| 12 | shut off unit left closing94008000 |
| 13 | shut off unit right closing94009000 |
| 14 | fixing set (Ø 32)13961000 |
| 15 | lever collar97548000 |
| 16 | connection hose 450 mm M8x0,75 G3/897206000 |
| 17 | O-ring 7x1,598422000 |
| 18 | connection hose 450 mm M10x1 G3/896507000 |
| 19 | O-ring 8x1,7597827000 |
| 20 | sealing set95581000 |
