Discontinued product

Pulsify S Puro Showerpipe 260 1jet with Ecostat Fine

Showerpipe 260 1jet with Ecostat Fine Showerpipe 260 1jet with Ecostat Fine
Change variant Showerpipe 260 1jet with Ecostat Fine

Select a variant

Finish Chrome

Art. no. 24223007

Find the right spare part
Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Find a specialist dealer
Pulsify S Puro Showerpipe 260 1jet with Ecostat Fine

Find the right spare part

+
_
{{part.number}}
{{part.text}} Art. no.  {{part.articleNumber}}

Installation information

Installation guide
Installation guide

Download the guide and get going

Download Guide
Professional installation
Professional installation

Leave it to the professionals

Find installer

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Scope of supply

  • Showerpipe with thermostat
  • S-connections
  • mounting material
  • assembly instruction

Article features

  • consists of: overhead shower, hand shower, shower thermostat, shower bar, slider, shower hose
  • overhead shower Pulsify 260 1jet
  • shower head size overhead shower: 260 mm
  • spray type overhead shower: PowderRain
  • spray disc surface: graphite
  • Fast Drain empties the overhead shower from an angle of 10°
  • removable shower head
  • function from: 5 l/min

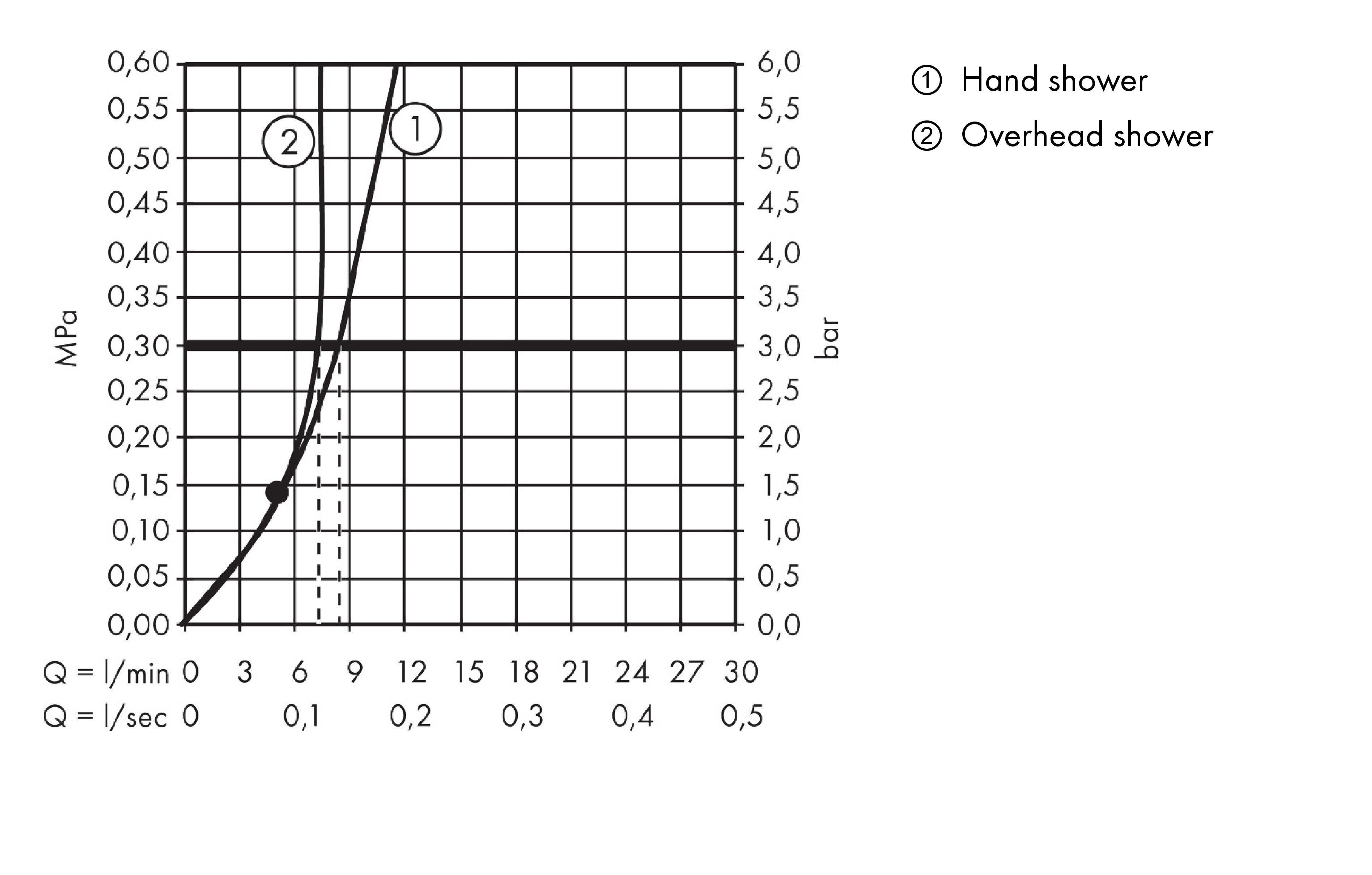

  • flow rate PowderRain spray at 3 bar: 8,4 l/min
  • spray type hand shower: PowderRain
  • flow rate of hand shower at 3 bar: 8,4 l/min
  • maximum flow rate for Showerpipe at 3 bar: 8,4 l/min
  • minimum flow pressure: 1,4 bar
  • ball-joint: overhead shower angle adjustable
  • height-adjustable slider with locking push-button slider
  • slider rotatable on the pipe for left or right operation
  • swivelling shower arm
  • thermostat Ecostat Fine
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • outlets controlled via turning handle
  • Outlets may not be operated simultaneously
  • suitable for continuous flow water heaters
  • mounting type: exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • pipe can be shortened in height
  • intrinsically safe against backflow
  • 2 functions

Download area

Product data sheet (PDF)

BIM data

Technical data

Instructions

We endeavour to always provide up-to-date, complete information on our website.
However, we do not assume any liability for the up-to-dateness, accuracy, completeness or suitability of the information for particular uses.
