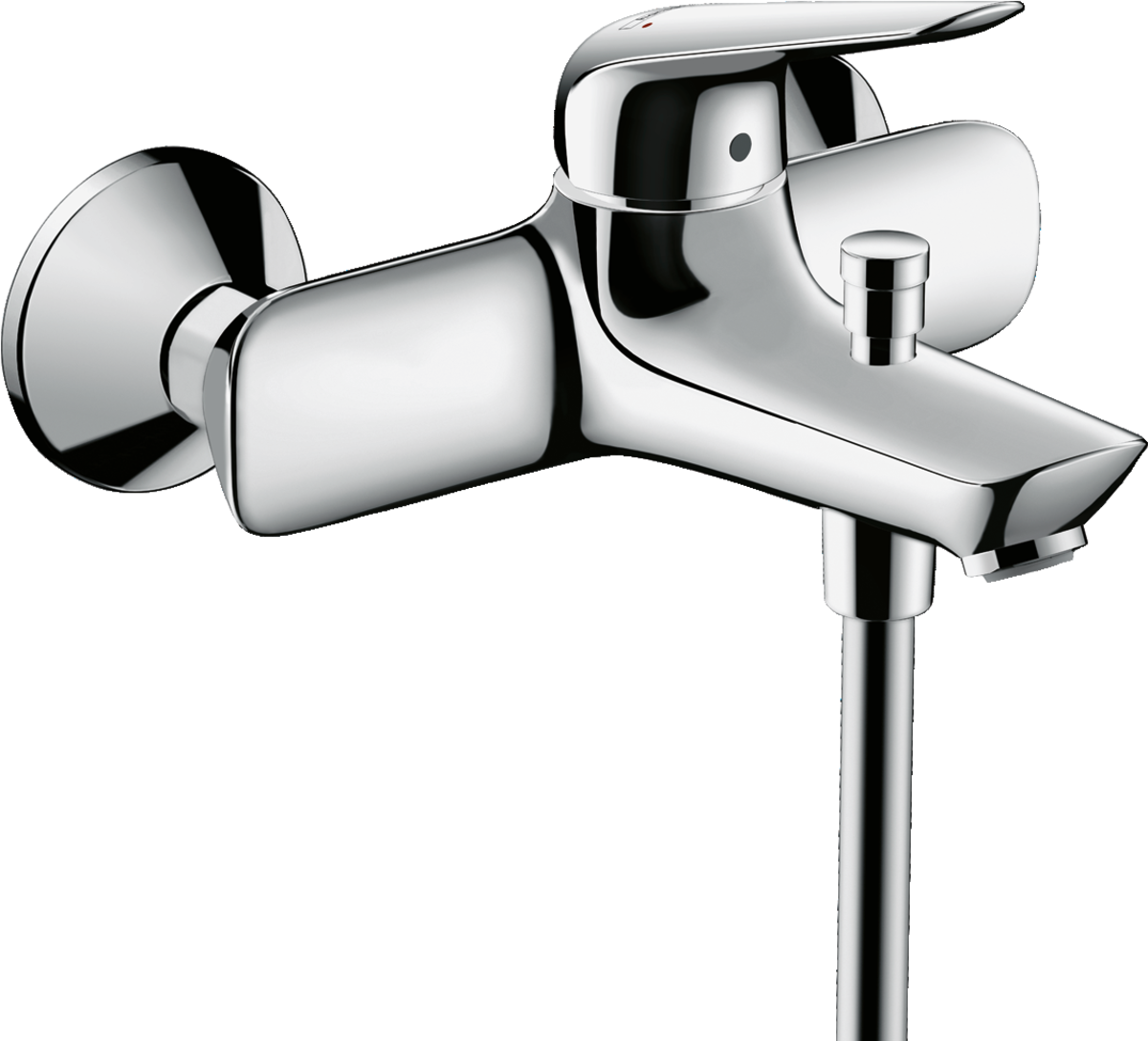

Novus Single lever bath mixer for exposed installation
Art. no. 71040000
Please try again.
Please try again.
Innovative technologies
More pleasure, more efficiency
Products with this shower technology combined water with air to pamper you with more voluminous, lighter and softer water droplets on your skin. For greater showering pleasure with water efficiency.Learn more
Fast anti-limescale function
Who really likes cleaning? Our invention, QuickClean, rapidly removes dirt and limescale deposits from mixers and showers. Flexible silicon nubs make sure of this. Beware of copies: this QuickClean logo is the only guarantee of genuine Hansgrohe quality.Learn more
Five-year manufacturer's guarantee
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Similar products
You may also like
Article features
- projection 192 mm
- connection type: s-shaped connections
- centre distance: 150 ± 12 mm
- spray type mixer: normal spray

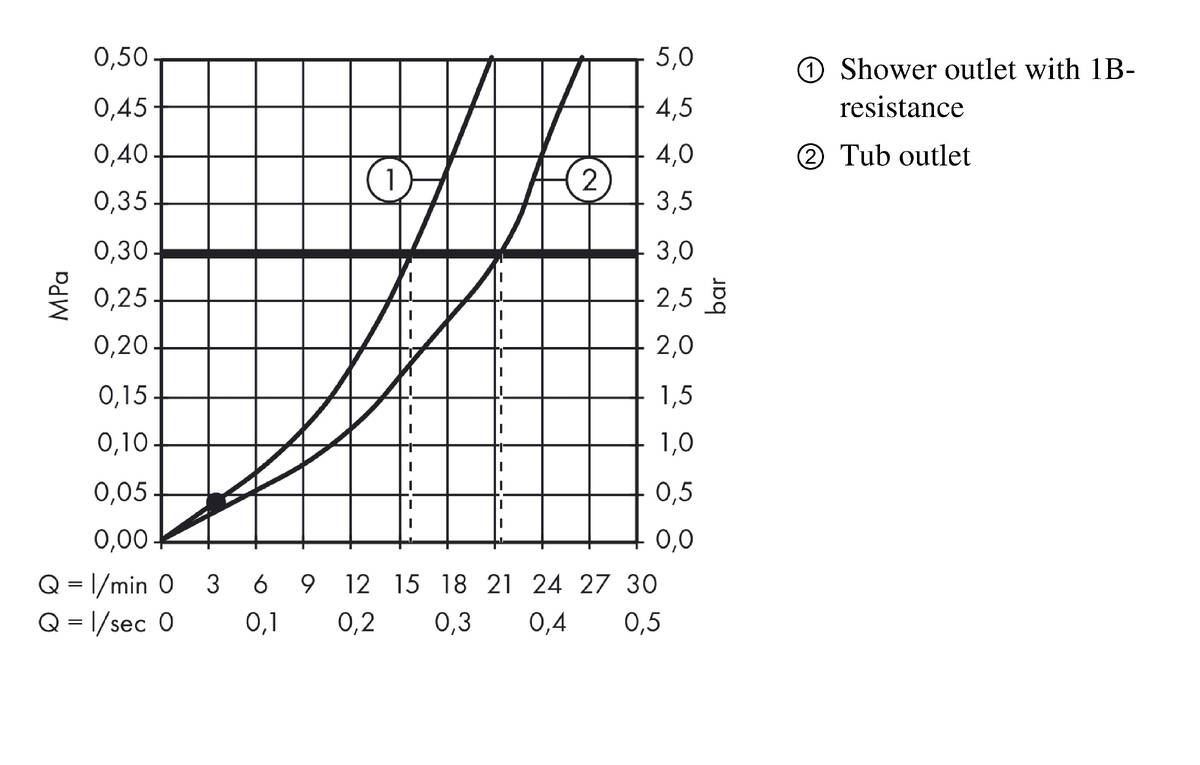

- flow rate for bath spout at 3 bar: 19 l/min
- flow rate of hand shower at 3 bar: 16 l/min
- ceramic cartridge
- min. operating pressure: 1 bar
- max. operating pressure: 10 bar
- temperature limitation adjustable
- with automatic resetting
- non-return valve
- with silencer
- suitable for continous flow water heaters
- connection dimension: DN15
Download area
Product data sheet (PDF)BIM data
- BIM data (AutoCAD 3D) DWG, 246 KB
- BIM data (Sketchup) SKP, 815 KB
- BIM data (Revit) FPX, 1.4 MB
- BIM data (Sketchup) SKP, 815 KB
- BIM data (3DS) 3DS, 129 KB
- BIM data (ArchiCAD) GSM, 1.3 MB
- BIM data (AutoCAD 3D) DWG, 246 KB
- BIM data (IFC) IFC, 928 KB
- BIM data (Revit) RFA, 1.4 MB
- BIM data (IFC) IFC, 928 KB
- BIM data (3DS) TIF, 129 KB
- BIM data (AutoCAD 2D) DWG, 328 KB
- BIM data (ArchiCAD) GSM, 1.3 MB
- BIM data (AutoCAD 2D) DWG, 328 KB
- BIM data on BIMobject

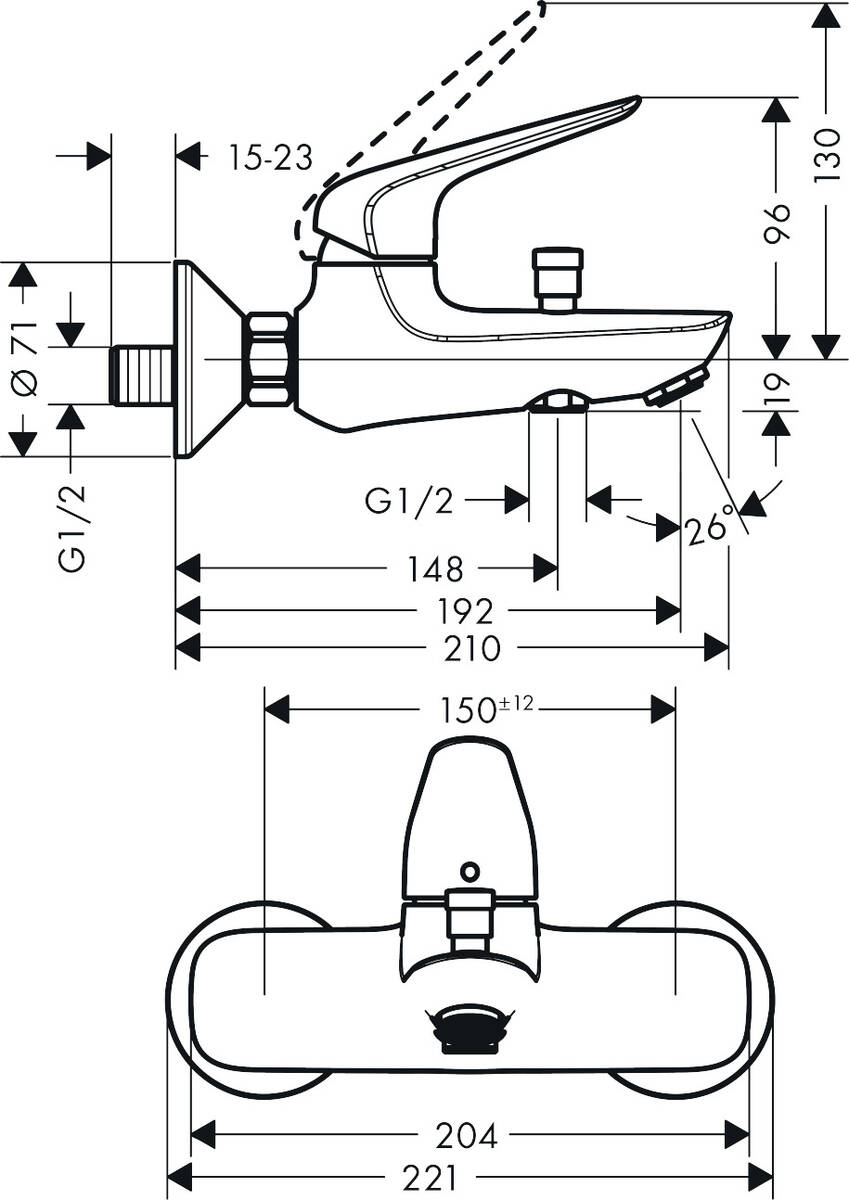

Technical data
Installation information
Scope of supply
- Single lever bath mixer
- escutcheons
- S-connections
- assembly instruction

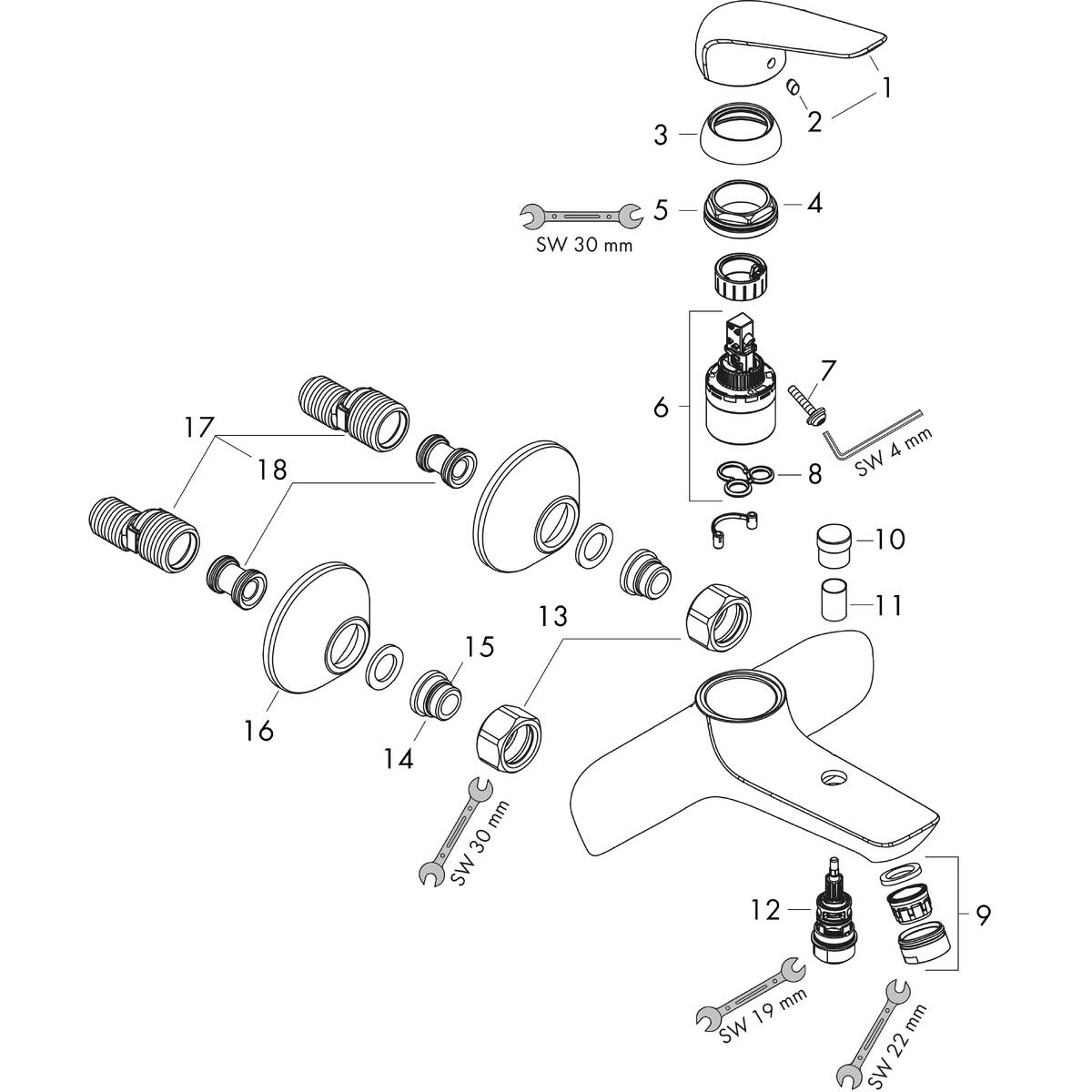

Spare parts for build year 06/19
View older models in the spare parts catalogueItem no. | DescriptionArticle no. |
---|
1 | handle93192000 |
2 | screw cover96338000 |
3 | flange97406000 |
4 | nut97209000 |
5 | O-Ring 32x298193000 |
6 | cartridge, assy92730000 |
7 | locking screw for handle95140000 |
8 | seal95008000 |
9 | aerator M24x1 (30 l/min)92360000 |
10 | diverter knob97981000 |
11 | sleeve97979000 |
12 | selector97978000 |
13 | set of nuts96157000 |
14 | connecting thread97220000 |
15 | O-ring 15x298163000 |
16 | escutcheon Ø 70 mm94135000 |
17 | set of S-unions (±12 mm)94140000 |
18 | noise reduction96429000 |
