Art. no. 71030000
Products with this shower technology combined water with air to pamper you with more voluminous, lighter and softer water droplets on your skin. For greater showering pleasure with water efficiency.Learn more
Generous proportions, sophisticated technology, intuitive operation. Outstanding design, high safety standards and considerably enhanced comfort: Hansgrohe showers, mixers and thermostats with this trademark extend your ComfortZone.Learn more
Hansgrohe mixers and showers, which are fitted with EcoSmart technology, require up to 60% less water than conventional products – without any loss of comfort. This means you can reduce your water and energy costs and conserve valuable resources.Learn more
Who really likes cleaning? Our invention, QuickClean, rapidly removes dirt and limescale deposits from mixers and showers. Flexible silicon nubs make sure of this. Beware of copies: this QuickClean logo is the only guarantee of genuine Hansgrohe quality.Learn more
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
BIM data

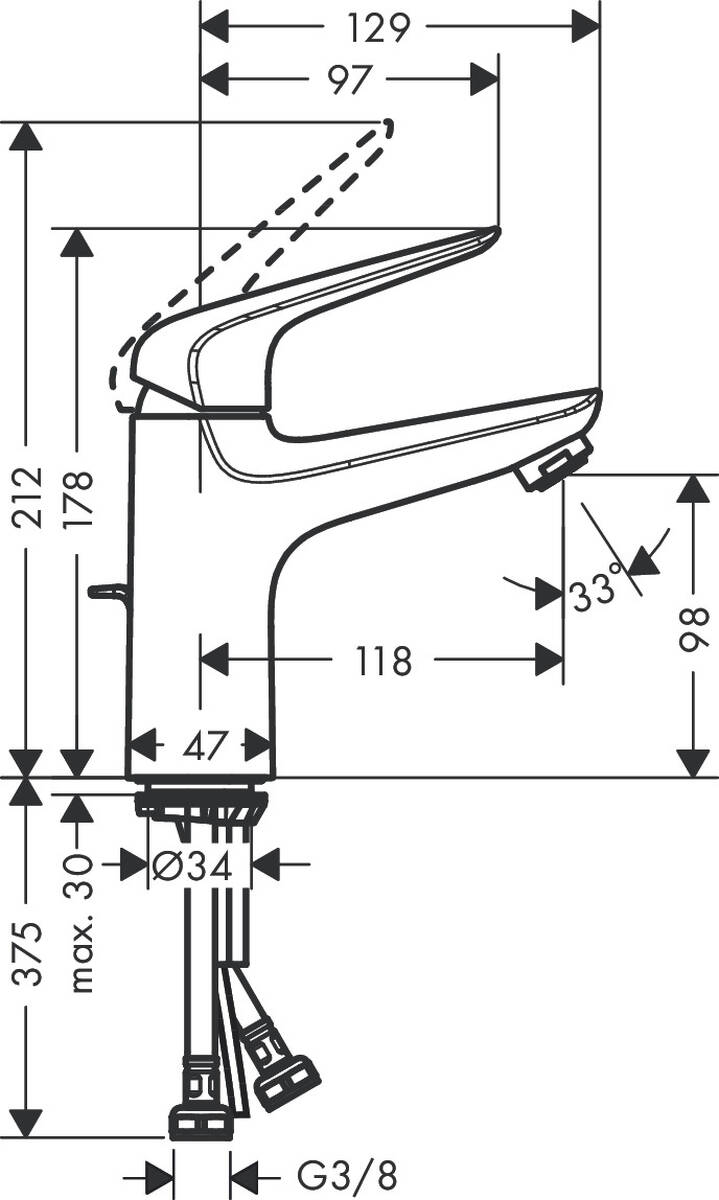

Technical data

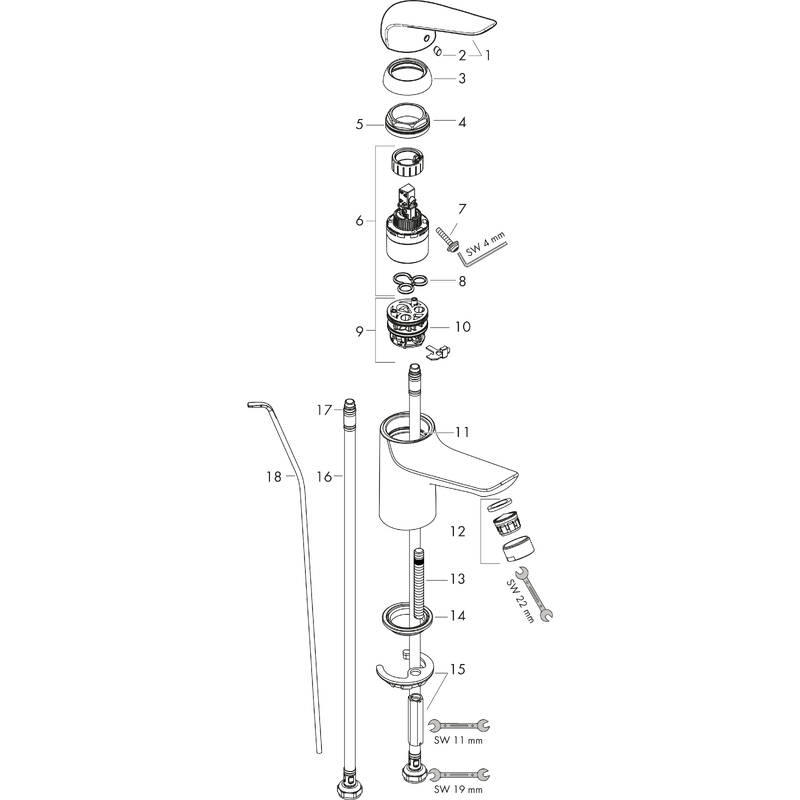

Item no. | DescriptionArticle no. |
---|
a | pop up waste94139000 |
1 | handle93192000 |
2 | screw cover96338000 |
3 | flange97406000 |
4 | nut97209000 |
5 | O-Ring 32x298193000 |
6 | cartridge, assy92730000 |
7 | locking screw for handle95140000 |
8 | seal95008000 |
9 | adapter for cartridge98750000 |
10 | O-Ring 30x298186000 |
11 | O-ring 35x292604000 |
12 | aerator M24x1 (5 l/min)92372000 |
13 | screw M8 x 6897736000 |
14 | seal Ø 4298722000 |
15 | fixing set96016000 |
16 | connection hose 450 mm M8x0,75 G3/897206000 |
17 | O-ring 6,6x1,693019000 |
18 | pull rod96657000 |
