Art. no. 31445090
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.

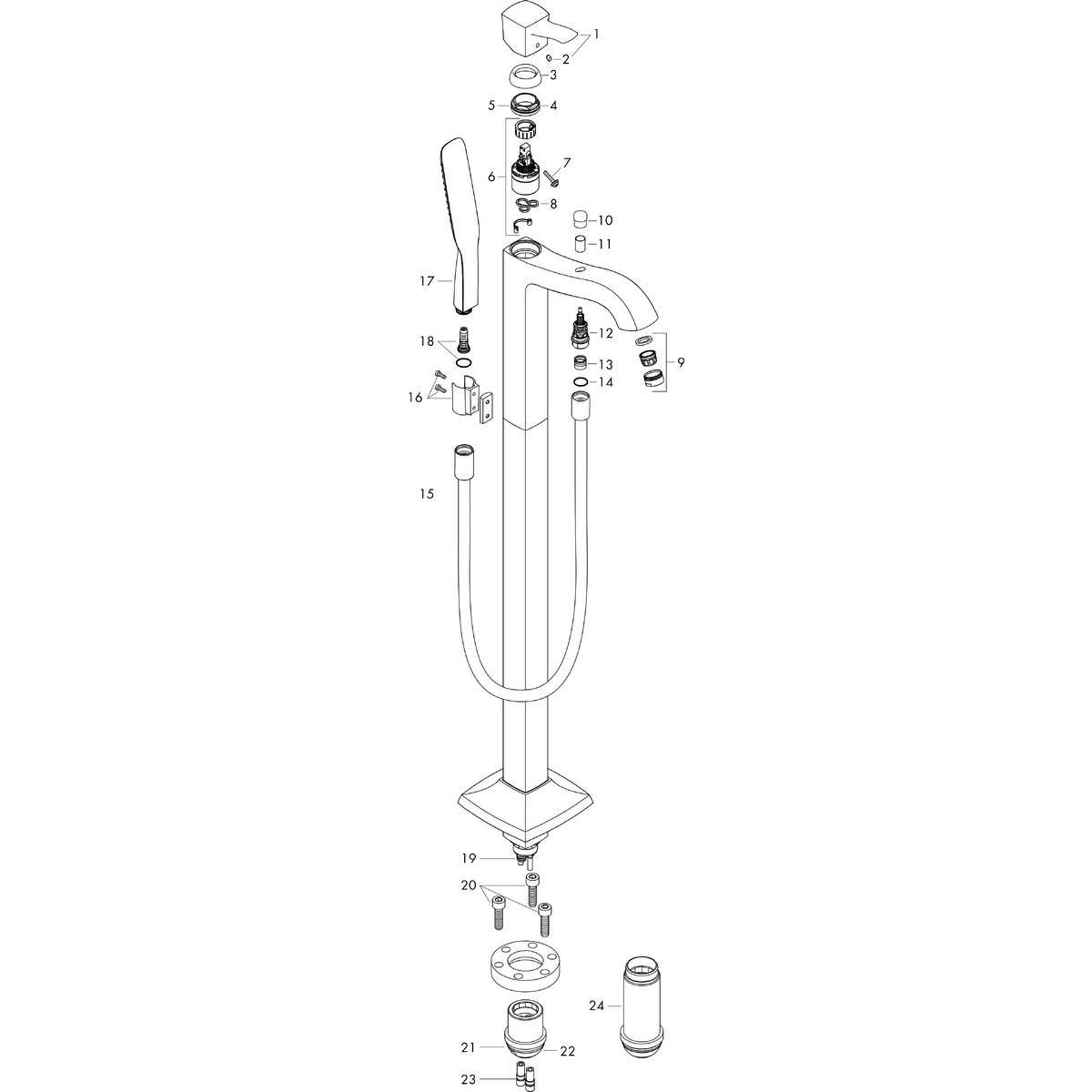

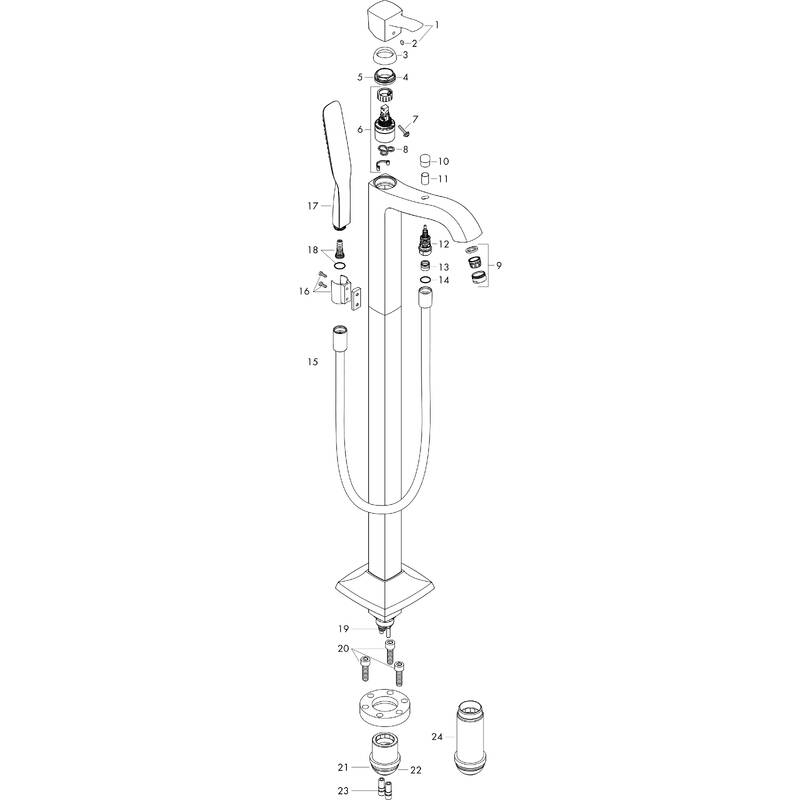

| Item no. | DescriptionArticle no. |
|---|
| 1 | handle92817090 |
| 2 | screw cover96338000 |
| 3 | flange97406000 |
| 4 | nut97209000 |
| 5 | O-Ring 32x298193000 |
| 6 | cartridge, assy92730000 |
| 7 | locking screw for handle95140000 |
| 8 | seal95008000 |
| 9 | aerator M24x1 (30 l/min)96512990 |
| 10 | diverter knob97981000 |
| 11 | sleeve97979000 |
| 12 | selector97978000 |
| 13 | set of non return valves DW 1594074000 |
| 14 | seal98058000 |
| 15 | shower hose 1,25 m28282000 |
| 16 | shower holder, assy96295000 |
| 17 | handshower28558000 |
| 18 | filter insert97708000 |
| 19 | O-ring 9x1,598117000 |
| 20 | hexagon socket screw M10x3597670000 |
| 21 | O-ring 29x398371000 |
| 22 | O-ring 44x2,598162000 |
| 23 | O-ring 7x298419000 |
| 24 | extension set 60 mm97686000 |
