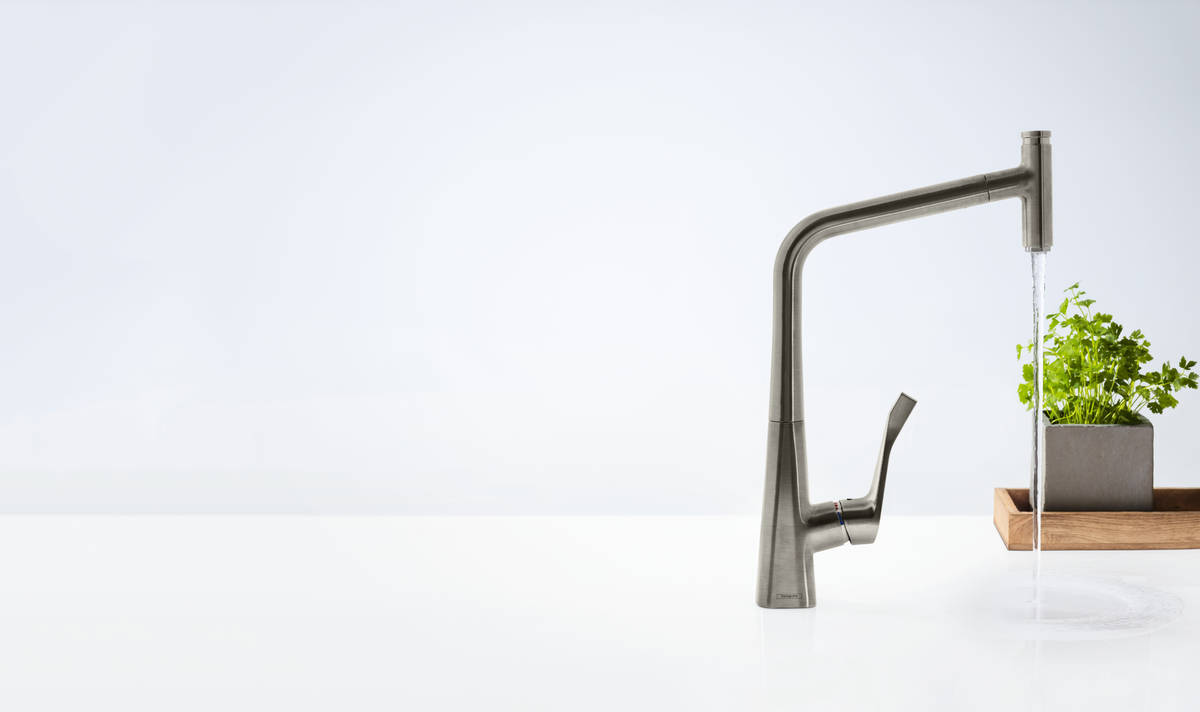

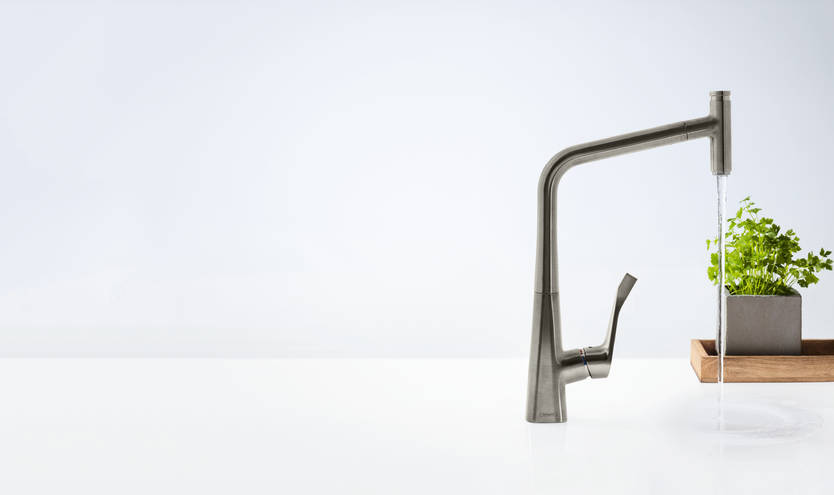

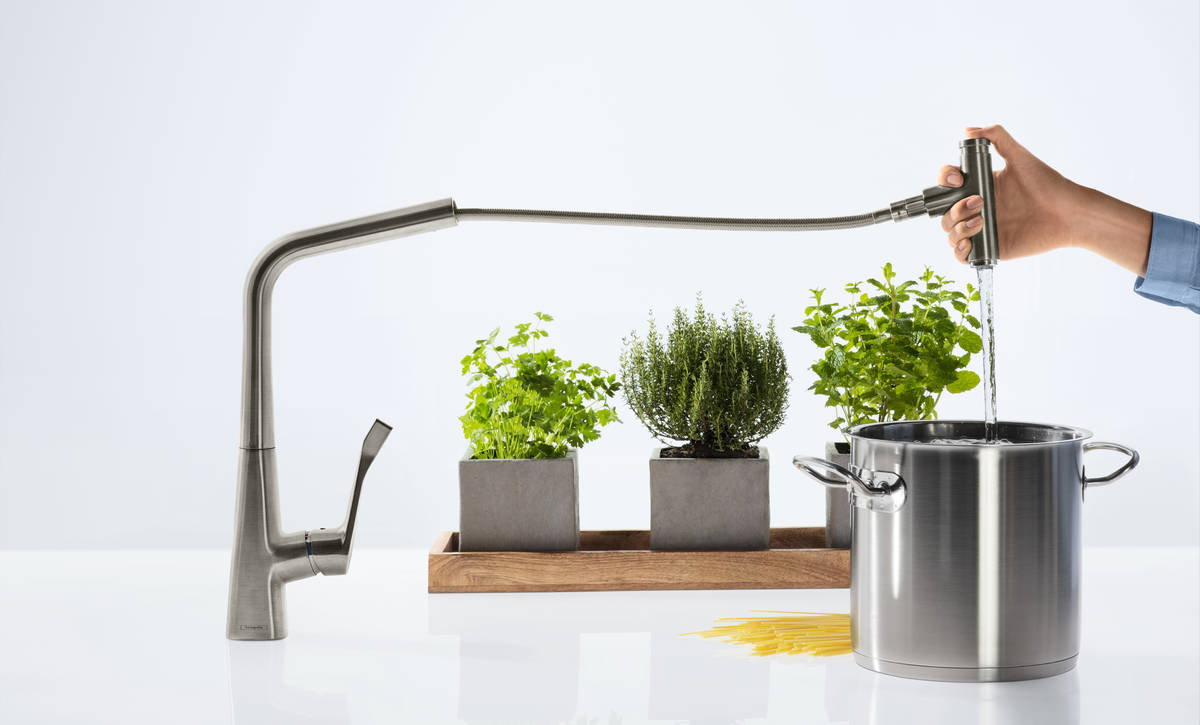

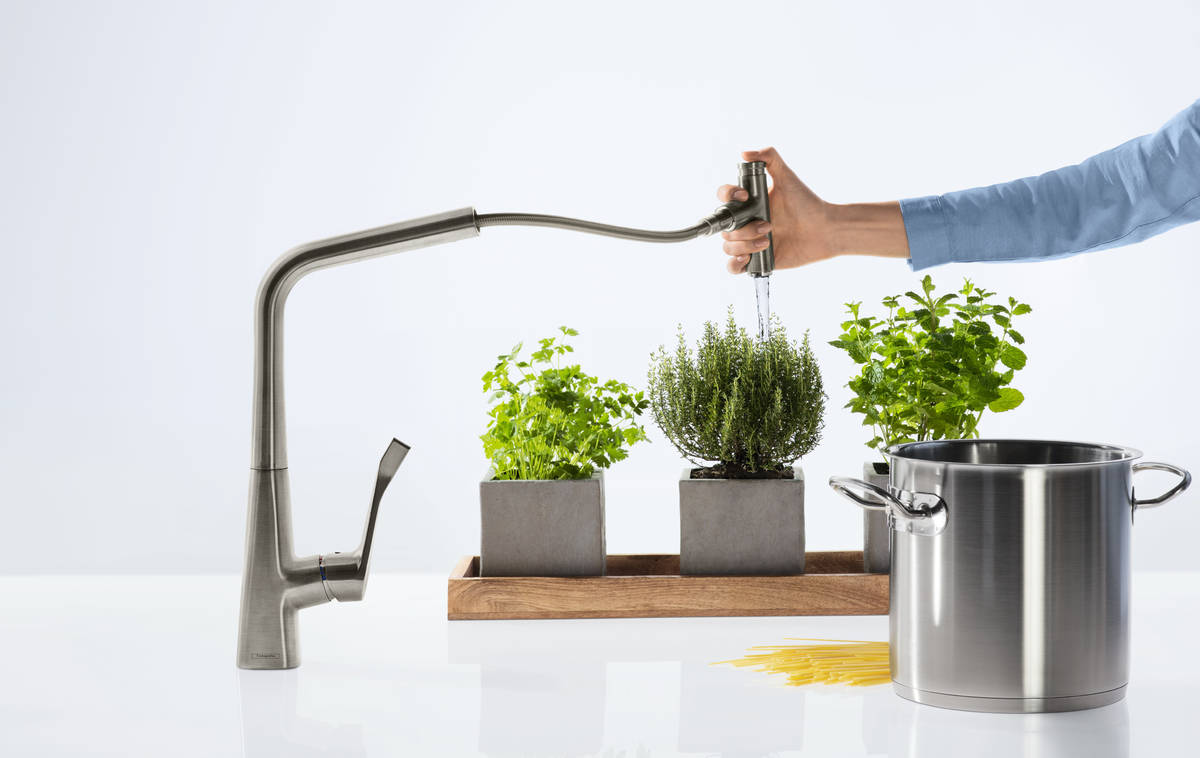

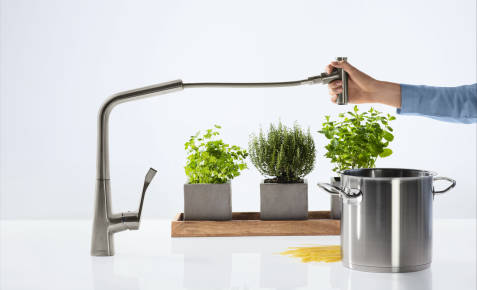

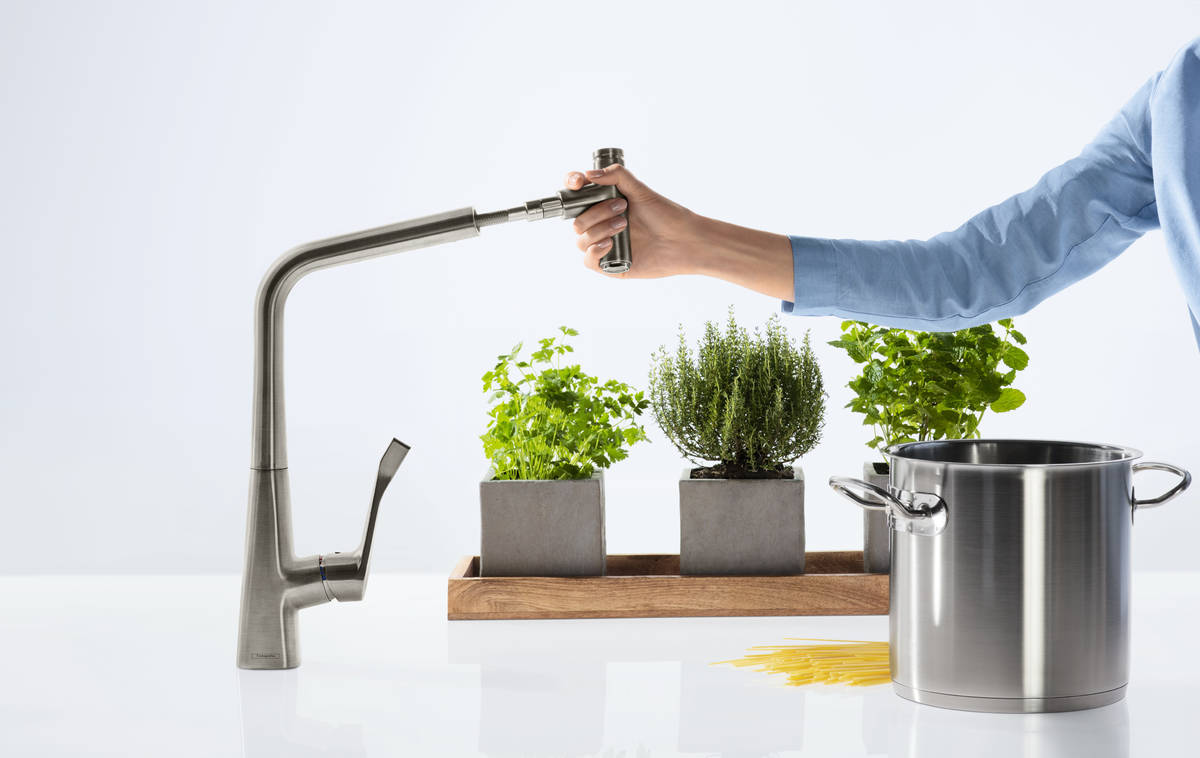

Metris Select M71 Single lever kitchen mixer 320, pull-out spout, 1jet
Art. no. 14884000
Please try again.
Please try again.
Innovative technologies
Excellent user comfort
Generous proportions, sophisticated technology, intuitive operation. Outstanding design, high safety standards and considerably enhanced comfort: Hansgrohe showers, mixers and thermostats with this trademark extend your ComfortZone.Learn more
Intuitive jet adjustment
Soft water droplets or an invigorating massage? Select the jet type you want in just one click, for even more showering fun.Learn more
Design Awards
Five-year manufacturer's guarantee
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Similar products
Article features
- ComfortZone 320
- swivel range adjustable in 2 steps to 110° or 150°
- laminar spray
- Select button for a comfortable start/stop of the water flow
- MagFit magnetic shower support
- connection dimension: DN15

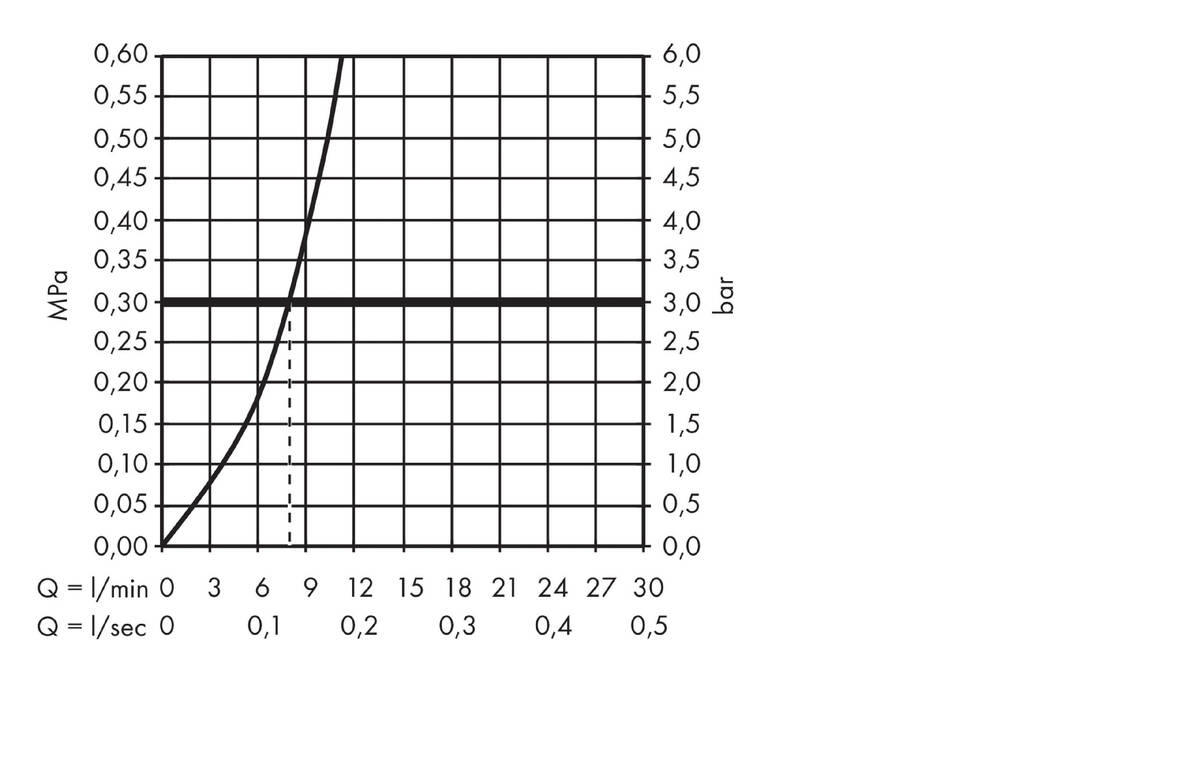

- flow rate 8 l/min
- ceramic cartridge
- connection type: G ⅜ connections
- integrated non-return valve
- suitable for continuous flow water heaters
- significantly reduced splashing by soft start of the water flow
Download area

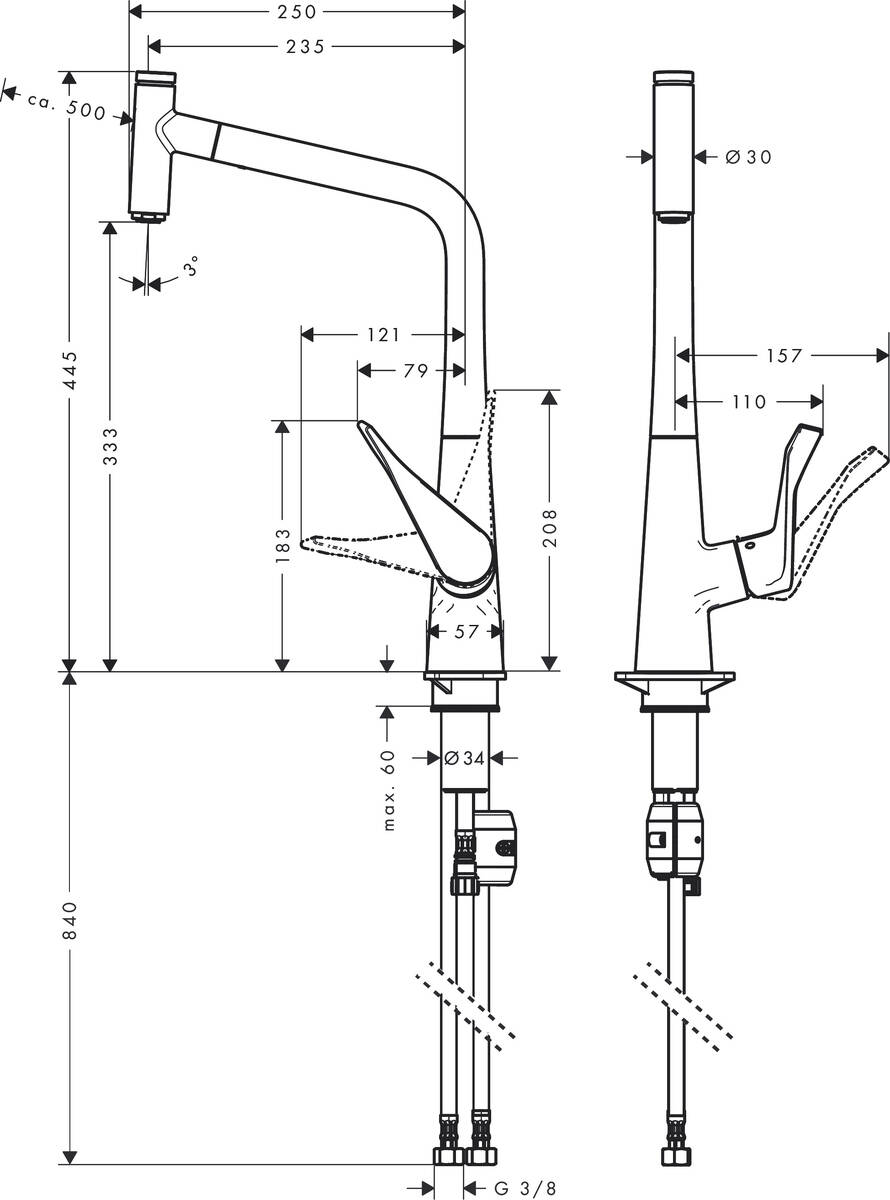

Product data sheet (PDF)Planning data
- Planning data (2D side view) DWG, 29 KB
- Planning data (2D front view) DWG, 27 KB
- Planning data (3D) DXF, 1.5 MB
- Planning data (2D side view) DXF, 35 KB
- Planning data (2D front view) DXF, 33 KB
- Planning data (2D top view) DWG, 28 KB
- Planning data (3D) DWG, 355 KB
- Planning data (2D top view) DXF, 31 KB
Technical data
Instructions
Installation information
Scope of supply
- single lever kitchen mixer
- connection hoses
- fixing set
- assembly instruction
Spare parts for build year 05/19
View older models in the spare parts catalogueItem no. | DescriptionArticle no. |
---|
1 | spout cpl.92736000 |
2 | O-ring 8x298112000 |
3 | handspray92737000 |
4 | cover92566000 |
5 | O-Ring 14x1,598201000 |
6 | nut92567000 |
7 | shut off unit98463000 |
8 | aerator laminar M24x1 (15 l/min)92517000 |
9 | set of lever collars98365000 |
10 | O-ring 21x2,598211000 |
11 | handle98455000 |
12 | screw cover96338000 |
13 | flange95498000 |
14 | nut97209000 |
15 | O-Ring 32x298193000 |
16 | cartridge, assy92730000 |
17 | locking screw for handle95140000 |
18 | seal95008000 |
19 | seal92582000 |
20 | weight92500000 |
21 | support97523000 |
22 | fixing set (Ø 34)95049000 |
23 | lever collar97548000 |
24 | hose 1,50 m92569000 |
25 | squeezing connection96099000 |
26 | connection hose 600 mm M10x192568000 |
27 | O-ring 8x1,7597827000 |
28 | connection hose 900 mm M8x0,75 G3/895372000 |
29 | O-ring 7x1,598422000 |
30 | non return valve DW 1096456000 |
31 | filter packing95291000 |
