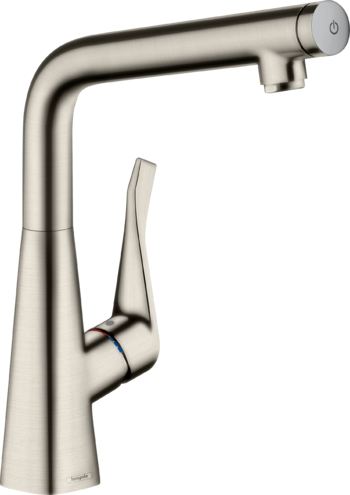

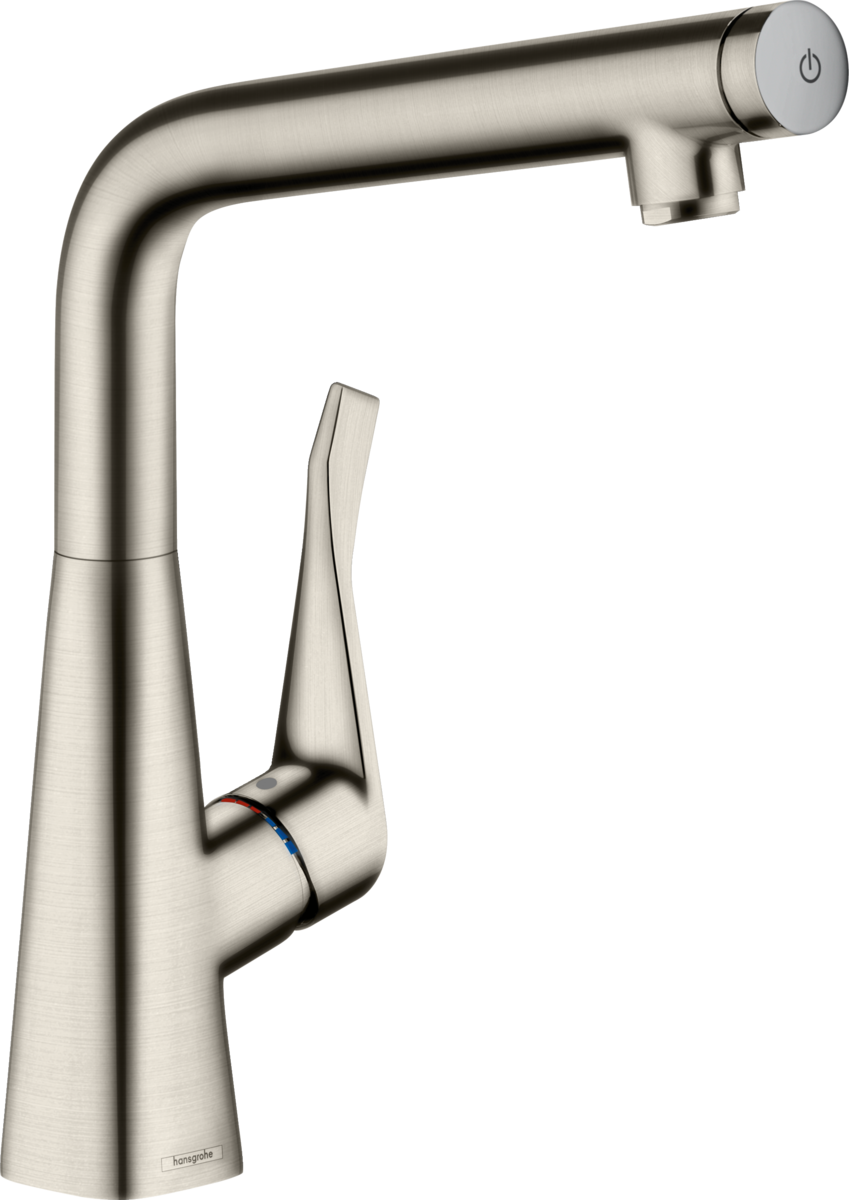

Metris Select M71 Single lever kitchen mixer 320, 1jet

Finish Stainless Steel Finish

Art. no. 14883800

Product features

Innovative technologies

Select

Select: convenience at the touch of a button

The Select function can be used to stop and start the water flow at your kitchen tap conveniently at the touch of a button. For precise, ergonomic water control and easier housework.Learn more

ComfortZone

ComfortZone: for more space at the kitchen sink

The hansgrohe ComfortZone describes the space you can use between the tap and sink. All taps come with sophisticated technology and are extremely user-friendly.

Laminar

Crystal clear and economical with no added air. Great for filling large containers quickly. Splashing can be prevented.

Trust in highest quality

Five-year manufacturer's guarantee

Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.

Alternative products

Similar products

Metris Select M71 Single lever kitchen mixer 320, Eco, 1jet

Metris Select M71 Single lever kitchen mixer 320, Eco, pull-out spout, 1jet

Metris Select M71 Single lever kitchen mixer 260, 1jet

Metris Select M71 Single lever kitchen mixer 240, pull-out spout, 1jet

Metris Select M71 Single lever kitchen mixer 320, pull-out spout, 1jet

Metris Select M71 Single lever kitchen mixer 320, pull-out spray, 2jet, sBox (nordic)

Metris Select M71 Single lever kitchen mixer 240, pull-out spray, sBox (Nordic)

Metris Select M71 Single lever kitchen mixer 240, pull-out spout, 1jet, sBox

Metris Select M71 Single lever kitchen mixer 320, pull-out spout, 1jet, sBox

Metris Select M71 2-hole single lever kitchen mixer 200, pull-out spout, 1jet, sBox

Metris Select M71 2-hole single lever kitchen mixer 220, pull-out spray, 2jet, sBox

Article features

ComfortZone 320
swivel range adjustable in 3 steps 110°, 150° or 360°
laminar spray
Select button for a comfortable start/stop of the water flow
connection dimension: DN15
maximum flow rate at 3 bar: 8 l/min
ceramic cartridge
connection type: G ⅜ connections
temperature limitation adjustable
integrated non-return valve
suitable for continuous flow water heaters
significantly reduced splashing by soft start of the water flow

Download area

Product data sheet (PDF)

Planning data

Technical data

Instructions

Brochures

hansgrohe Kitchen Brochure 2018 PDF, 7.3 MB

Installation information

Find plumber Assembly instruction (Mixer) PDF, 8.6 MB

Scope of supply

single lever kitchen mixer
connection hoses
fixing set
assembly instruction

Spare parts for build year 10/14

View older models in the spare parts catalogue

Item no.	DescriptionArticle no.

1	spout cpl.92288800
2	aerator laminar M24x1 (15 l/min)92517800
3	shut off unit98462000
4	nut98368000
5	sealing set93115000
6	O-ring 23x1,592287000
7	cover92289000
8	tappet92505000
9	set of locating rings (110° / 150°)98486000
10	sealing set92646000
11	O-Ring 14x2,598189000
12	screw97662000
13	axialring97558000
14	O-ring 11x392481000
15	non return valve95699000
16	handle98455800
17	screw cover96338000
18	flange95498800
19	nut97209000
20	O-Ring 32x298193000
21	cartridge, assy92730000
22	locking screw for handle95140000
23	seal95008000
24	seal92582000
25	support97523000
26	fixing set (Ø 34)95049000
27	lever collar97548000
28	connection hose 900 mm M8x0,75 G3/895372000
29	O-ring 7x1,598422000
30	non return valve DW 1096456000
31	filter packing95291000

More information in the spare parts catalogue
