Metris Select M71 2-hole single lever kitchen mixer 320, pull-out spray, 2jet, sBox

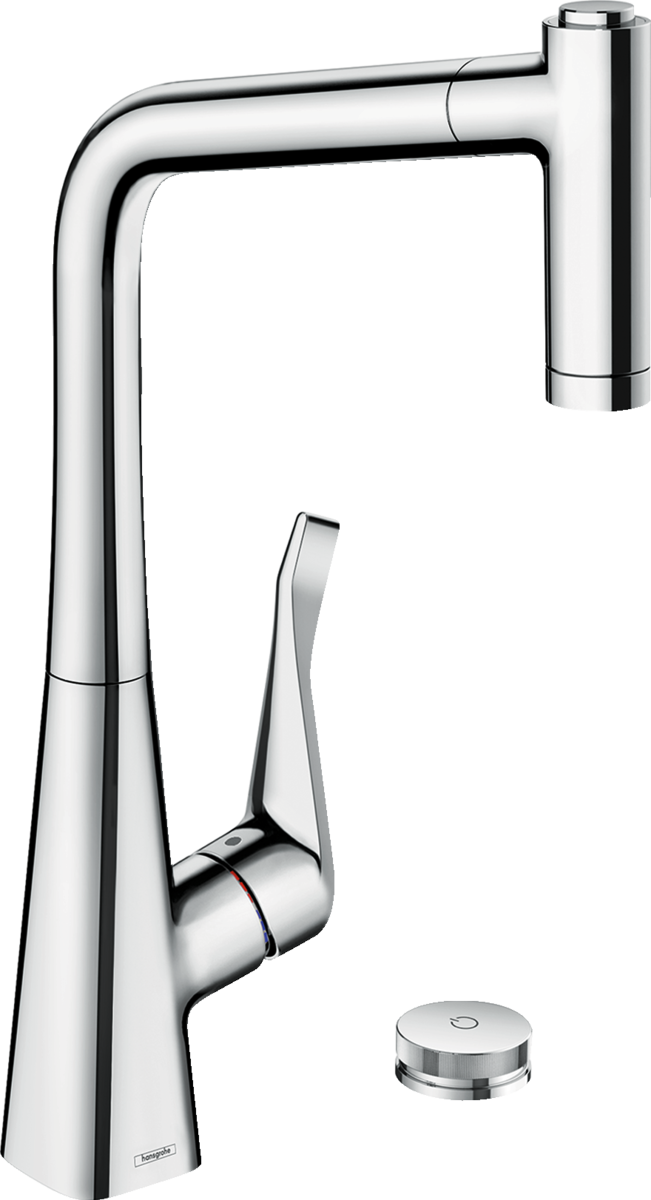

2-hole single lever kitchen mixer 320

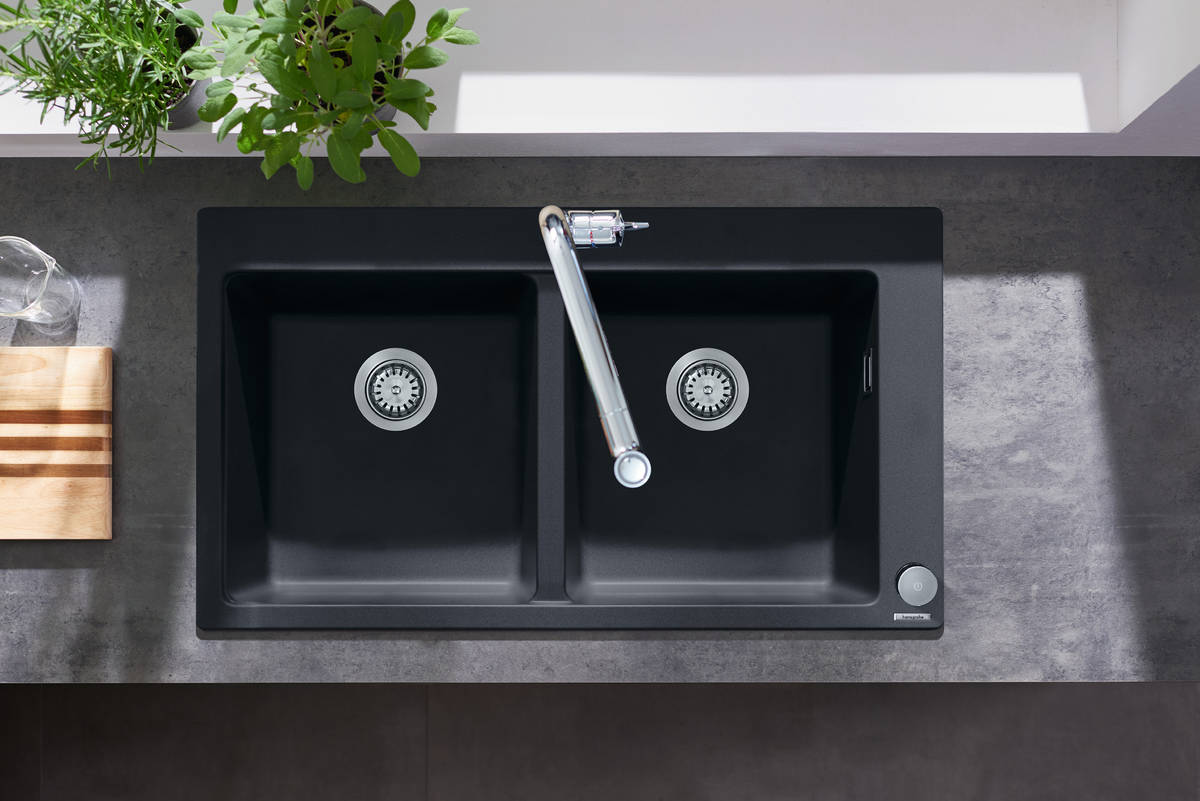

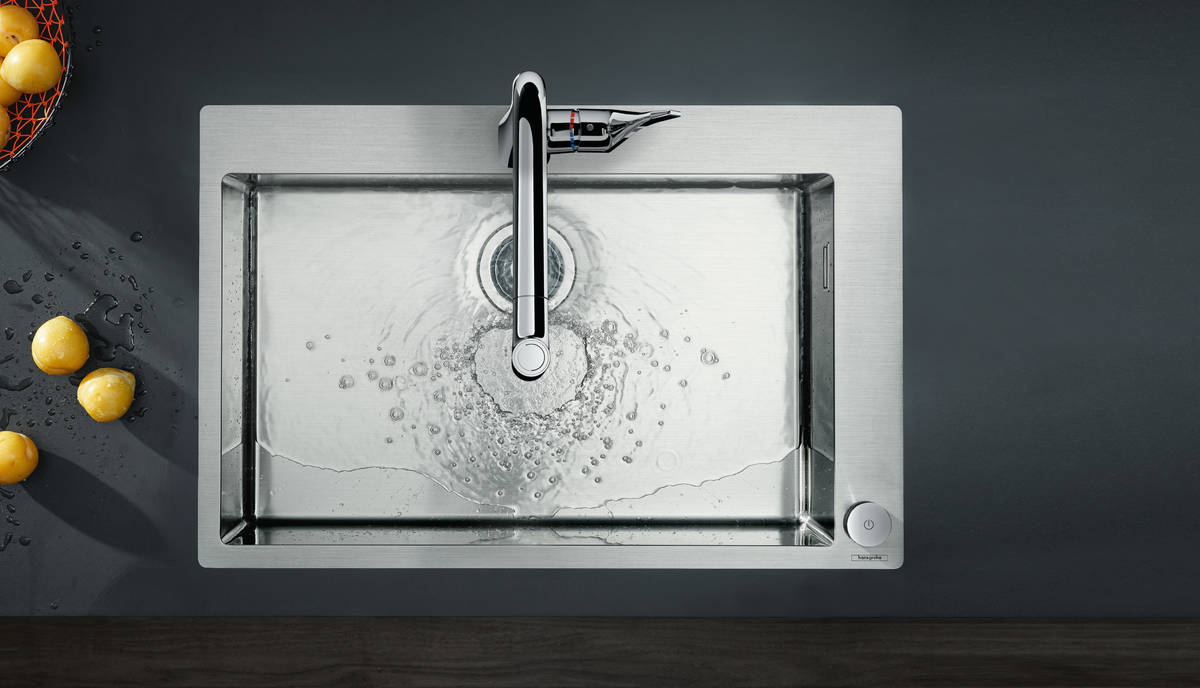

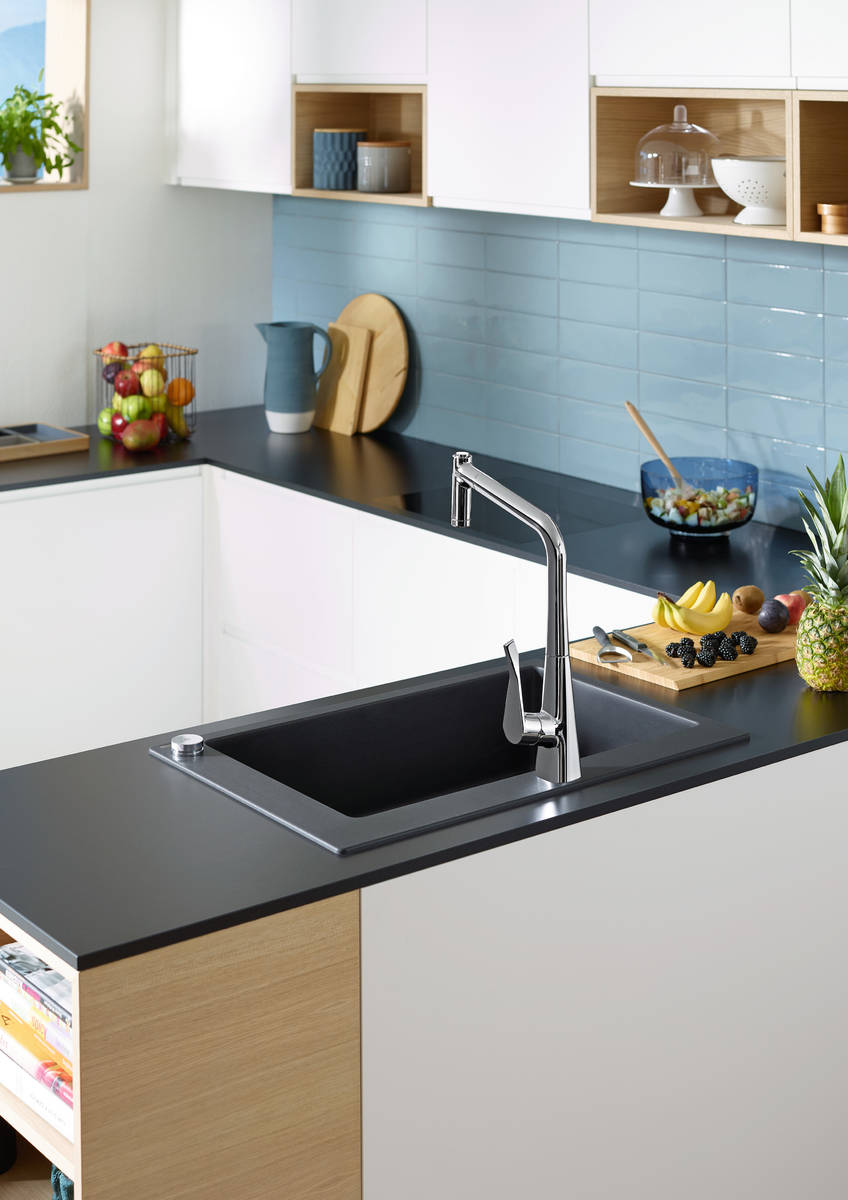

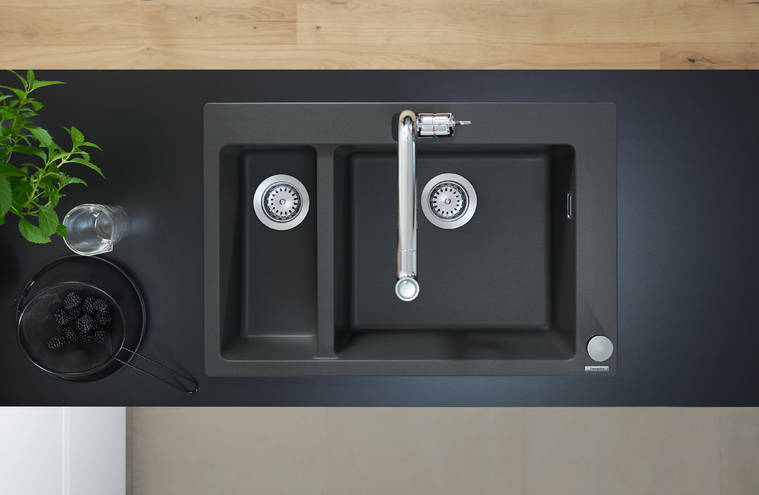

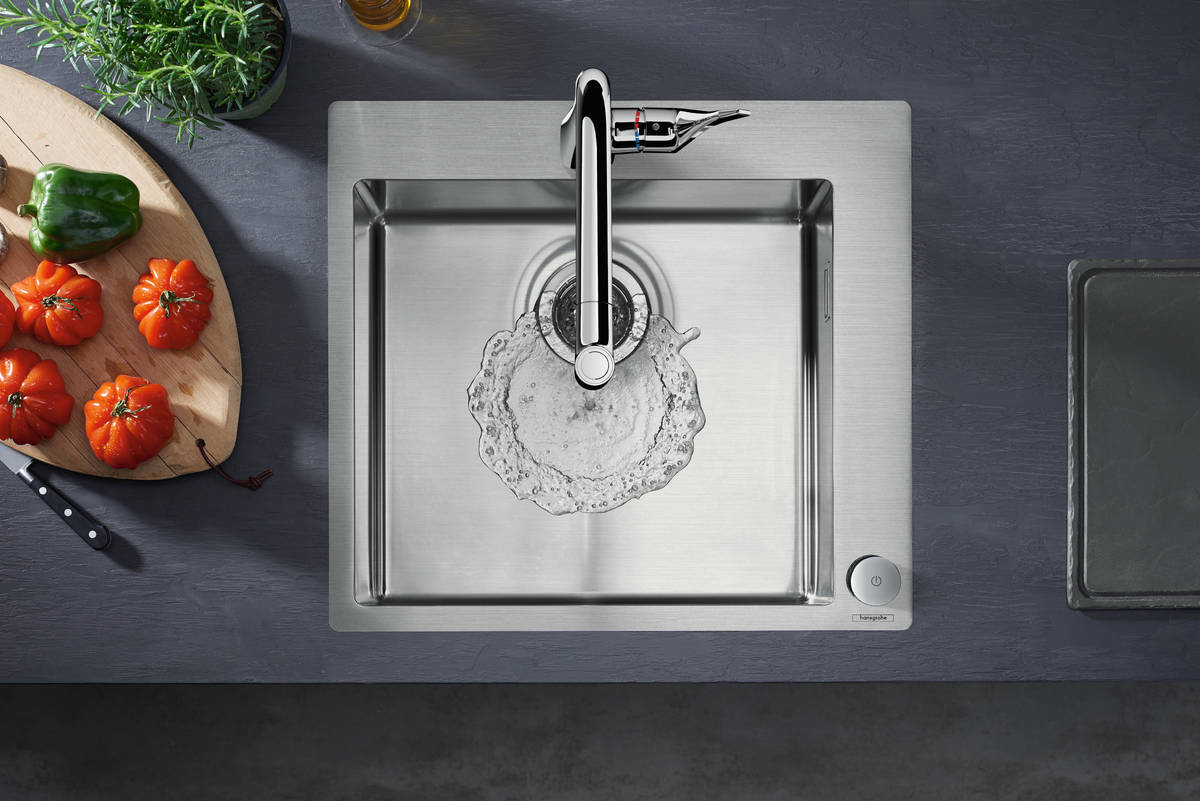

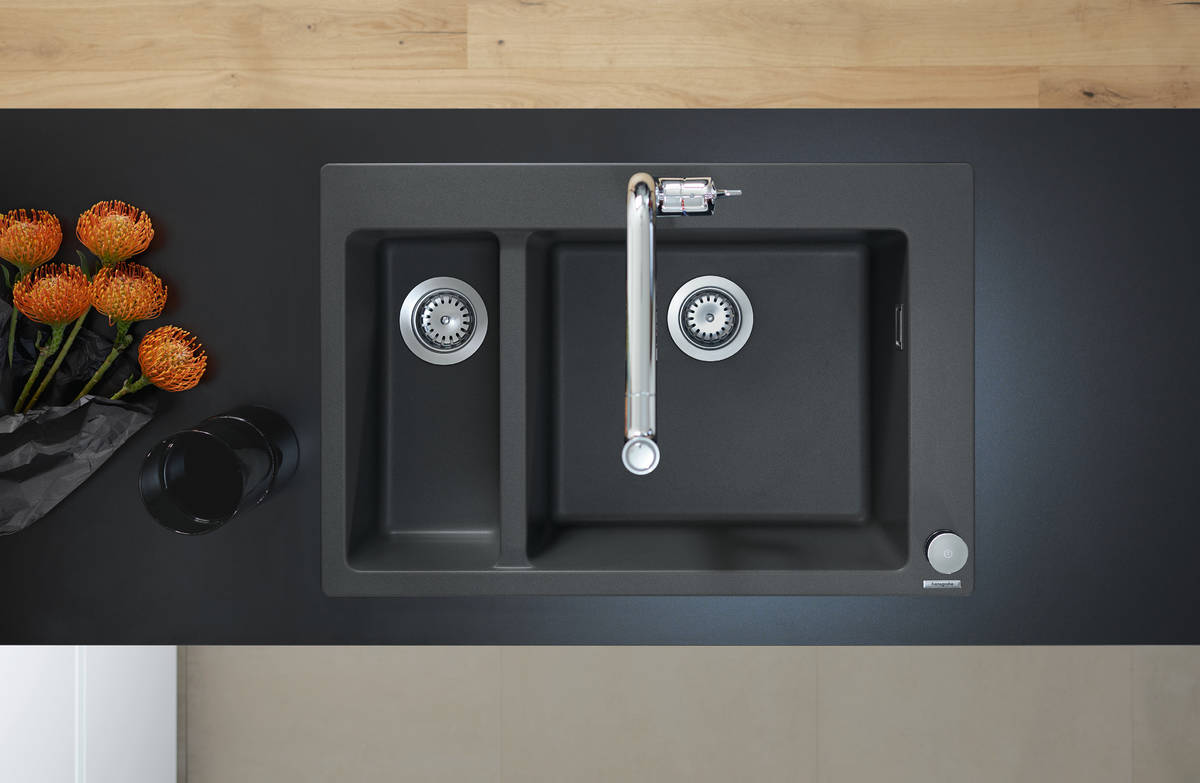

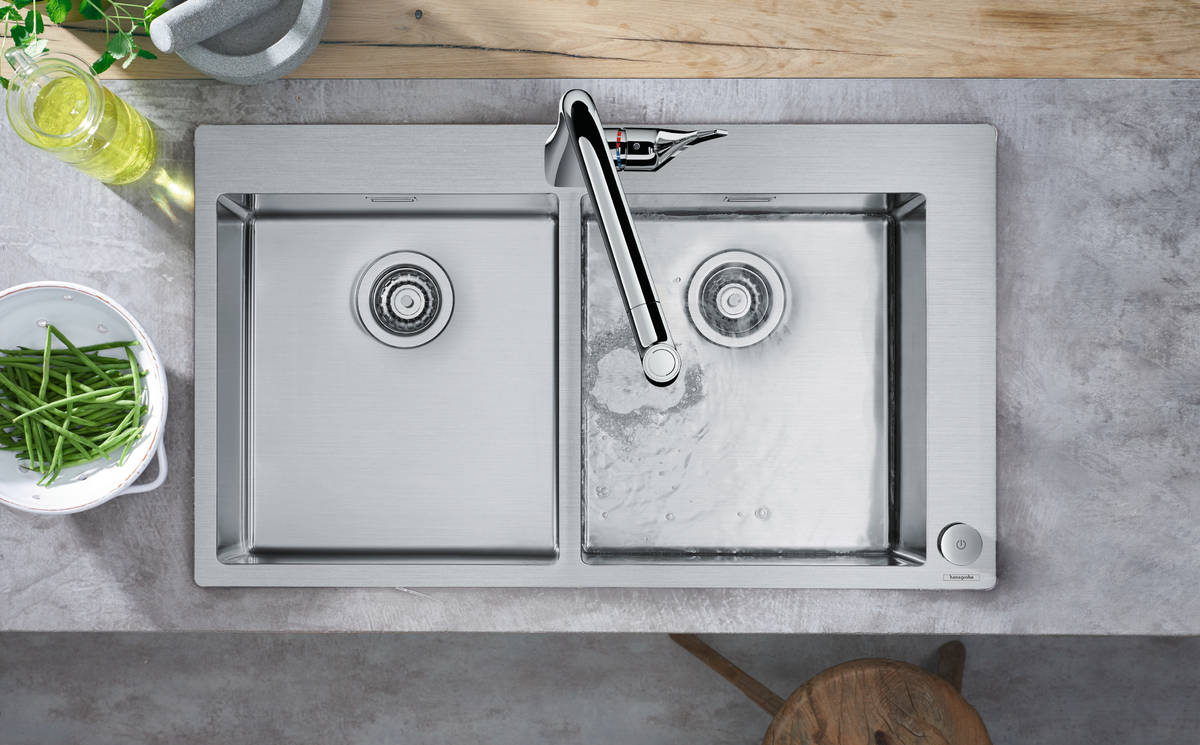

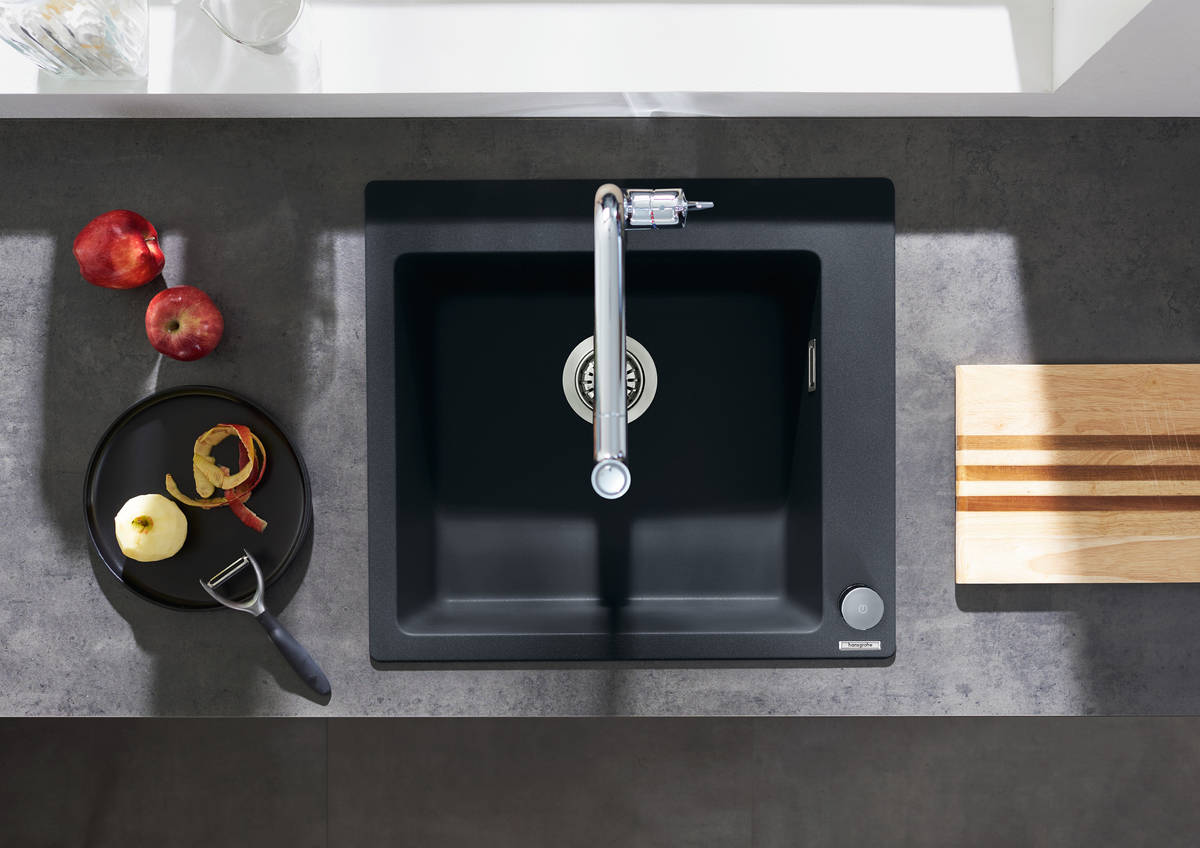

Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
2-hole single lever kitchen mixer 320
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Close-up: 2-hole single lever kitchen mixer 320 pull-out spray
Change variant 2-hole single lever kitchen mixer 320, pull-out spray, 2jet, sBox
Select a variant
2-hole single lever kitchen mixer 220, pull-out spray, 2jet, sBox
2-hole single lever kitchen mixer 320, pull-out spray, 2jet, sBox
2-hole single lever kitchen mixer 220, Eco, pull-out spray, 2jet, sBox
2-hole single lever kitchen mixer 320, Eco, pull-out spray, 2jet, sBox
Finish Chrome

Art. no. 73806000

Find a specialist dealer Details
Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Compare products product added Product saved for 30 daysTo the Product Comparison The product could not be saved.
Please try again.
Product features

Innovative technologies

Excellent user comfort
ComfortZone
ComfortZone

Excellent user comfort

Generous proportions, sophisticated technology, intuitive operation. Outstanding design, high safety standards and considerably enhanced comfort: Hansgrohe showers, mixers and thermostats with this trademark extend your ComfortZone.Learn more

Fast anti-limescale function
QuickClean
QuickClean

Fast anti-limescale function

Who really likes cleaning? Our invention, QuickClean, rapidly removes dirt and limescale deposits from mixers and showers. Flexible silicon nubs make sure of this. Beware of copies: this QuickClean logo is the only guarantee of genuine Hansgrohe quality.Learn more

Select: convenience at the touch of a button
Select_Kitchen
Select_Kitchen

Select: convenience at the touch of a button

The Select function can be used to stop and start the water flow at your kitchen tap conveniently at the touch of a button. For precise, ergonomic water control and easier housework.Learn more

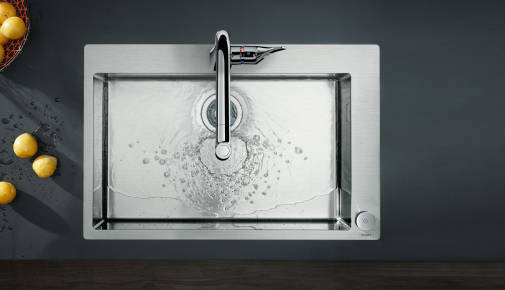

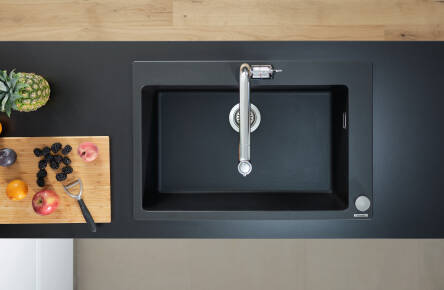

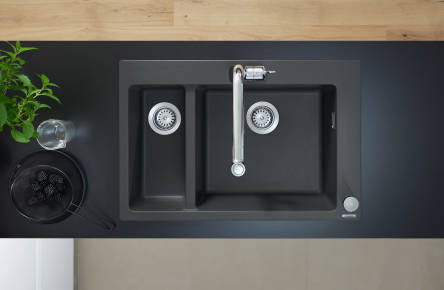

Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Lifestyle: 2-hole single lever kitchen mixer 320 pull-out spray
Trust in highest quality

Five-year manufacturer's guarantee

Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.

Alternative products

Similar products

Single lever kitchen mixer 320, Eco, 1jet

Metris Select M71 Single lever kitchen mixer 320, Eco, 1jet
Single lever kitchen mixer 320, Eco, pull-out spout, 1jet

Metris Select M71 Single lever kitchen mixer 320, Eco, pull-out spout, 1jet
Single lever kitchen mixer 260, 1jet

Metris Select M71 Single lever kitchen mixer 260, 1jet
Single lever kitchen mixer 240, pull-out spout, 1jet

Metris Select M71 Single lever kitchen mixer 240, pull-out spout, 1jet
Single lever kitchen mixer 320, 1jet

Metris Select M71 Single lever kitchen mixer 320, 1jet
Single lever kitchen mixer 320, pull-out spout, 1jet

Metris Select M71 Single lever kitchen mixer 320, pull-out spout, 1jet
Single lever kitchen mixer 320, pull-out spray, 2jet, sBox (nordic)

Metris Select M71 Single lever kitchen mixer 320, pull-out spray, 2jet, sBox (nordic)
Single lever kitchen mixer 240, pull-out spray, sBox (Nordic)

Metris Select M71 Single lever kitchen mixer 240, pull-out spray, sBox (Nordic)
Single lever kitchen mixer 240, pull-out spout, 1jet, sBox

Metris Select M71 Single lever kitchen mixer 240, pull-out spout, 1jet, sBox
Single lever kitchen mixer 320, pull-out spout, 1jet, sBox

Metris Select M71 Single lever kitchen mixer 320, pull-out spout, 1jet, sBox
2-hole single lever kitchen mixer 200, pull-out spout, 1jet, sBox

Metris Select M71 2-hole single lever kitchen mixer 200, pull-out spout, 1jet, sBox

Article features

  • consists of: 2-hole single lever kitchen mixer, control unit, hose box
  • ComfortZone 320
  • swivel range adjustable in 2 steps to 110° or 150°
  • flexible position of faucet controls, 2 tap holes with Ø 35 mm required

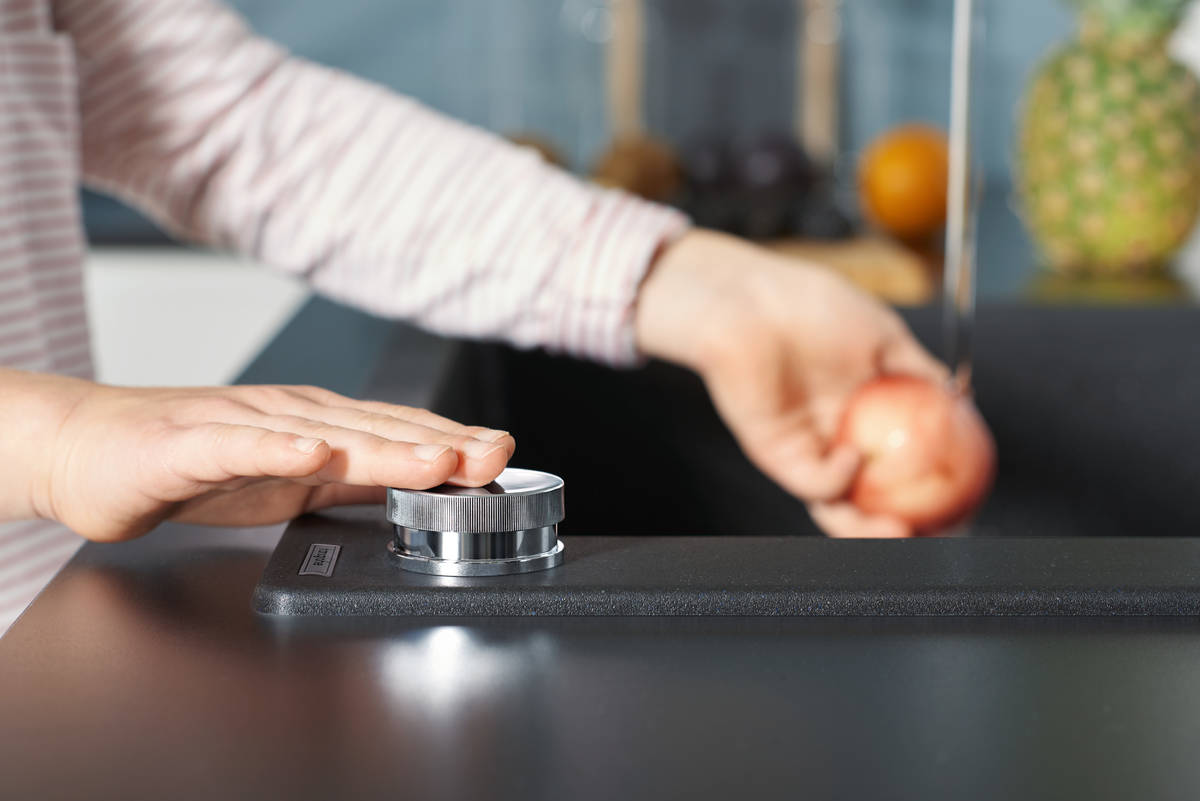

  • push of control unit: intuitive start and stop function of the water flow, turn: automatic drain operation
  • laminar spray and shower spray
  • lockable shower spray, spray returns automatically through handle closing
  • MagFit magnetic shower support
  • connection dimension: DN15
  • maximum flow rate at 3 bar: 7 l/min
  • ceramic cartridge
  • connection type: G ⅜ connections
  • integrated non-return valve
  • suitable for continuous flow water heaters
  • sBox for quiet, smooth and protected hose guidance in the cabinet, under the countertop, with extension length up to 76 cm

Download area

Product data sheet (PDF)

BIM data

Technical data

Instructions

Brochures

Installation information

Find plumber Assembly instruction (Mixer)  PDF, 22 MB

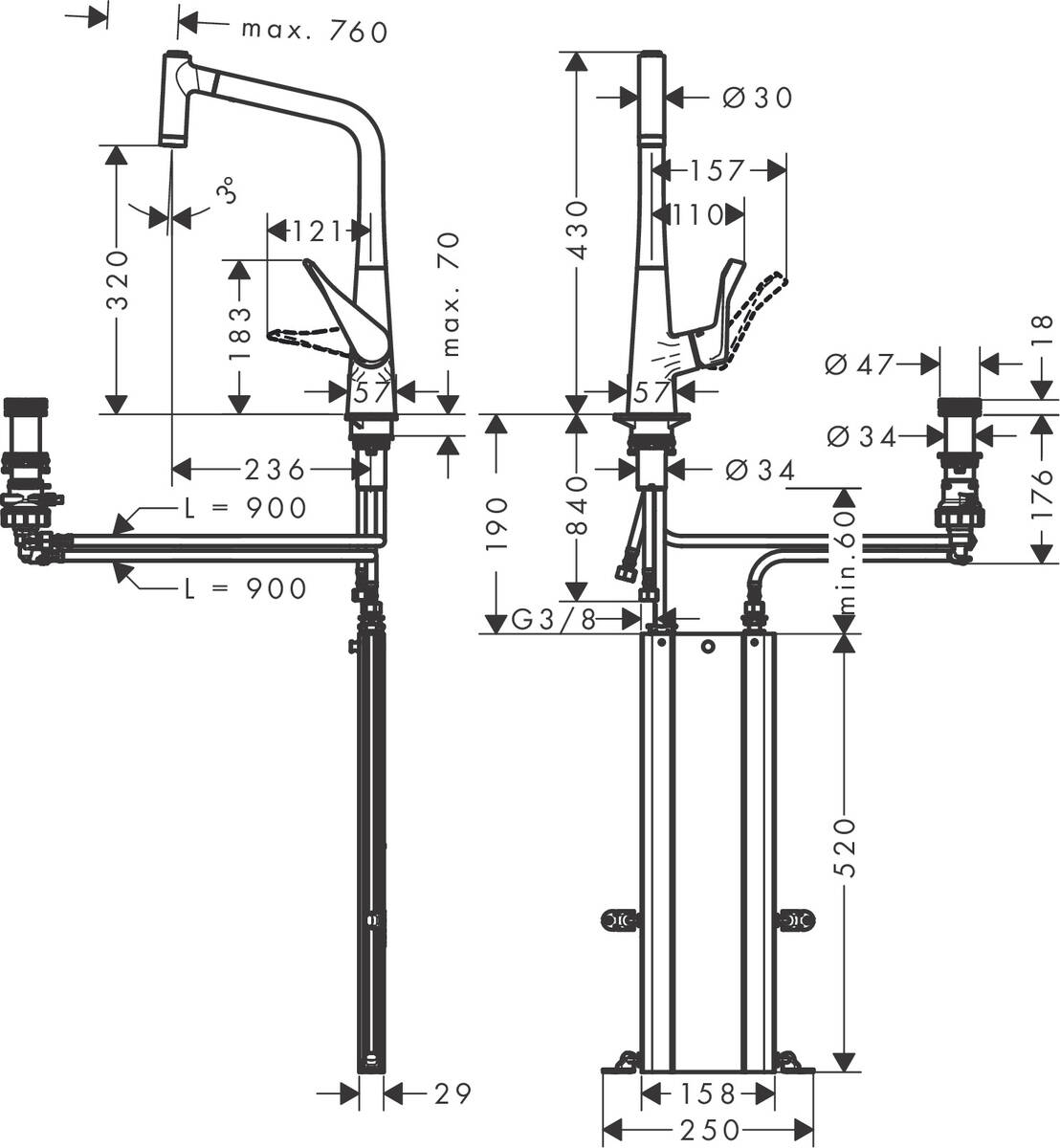

Scale drawing

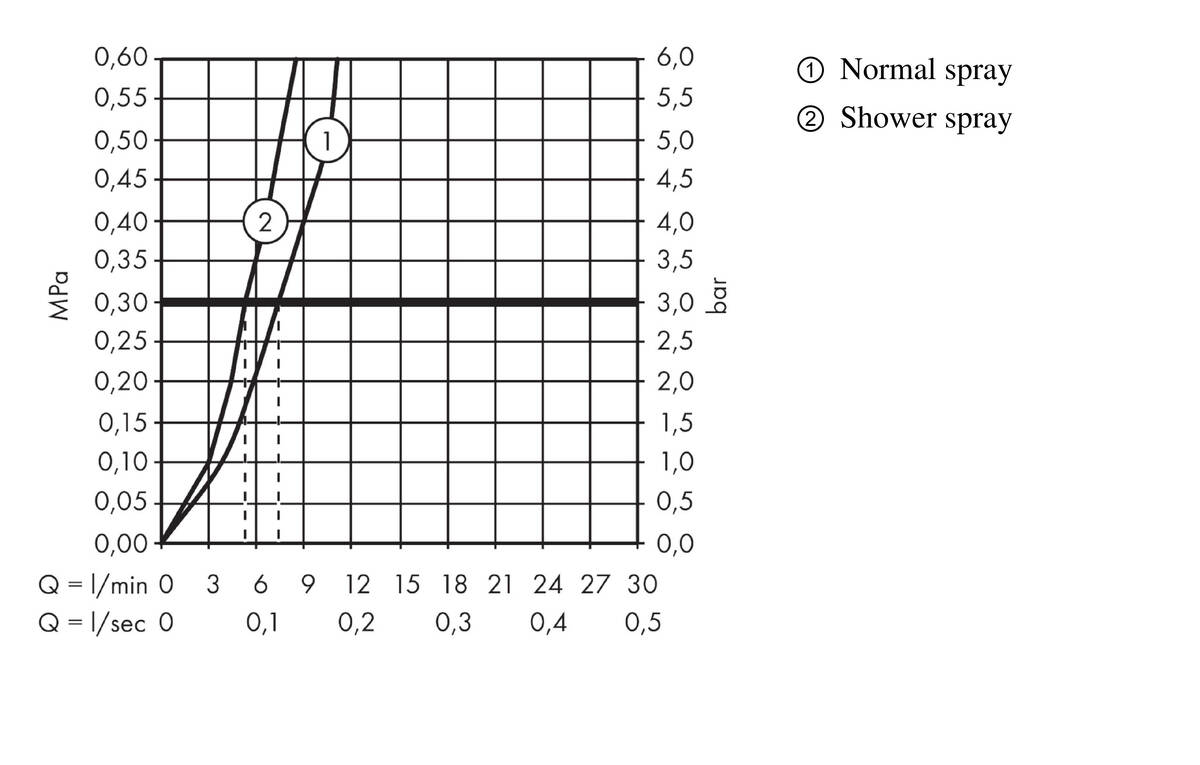

Flow diagram

Scope of supply

  • 2-hole single lever kitchen mixer
  • connection hoses
  • fixing set
  • mounting material
  • assembly instruction

Spare parts for build year 04/17

View older models in the spare parts catalogue

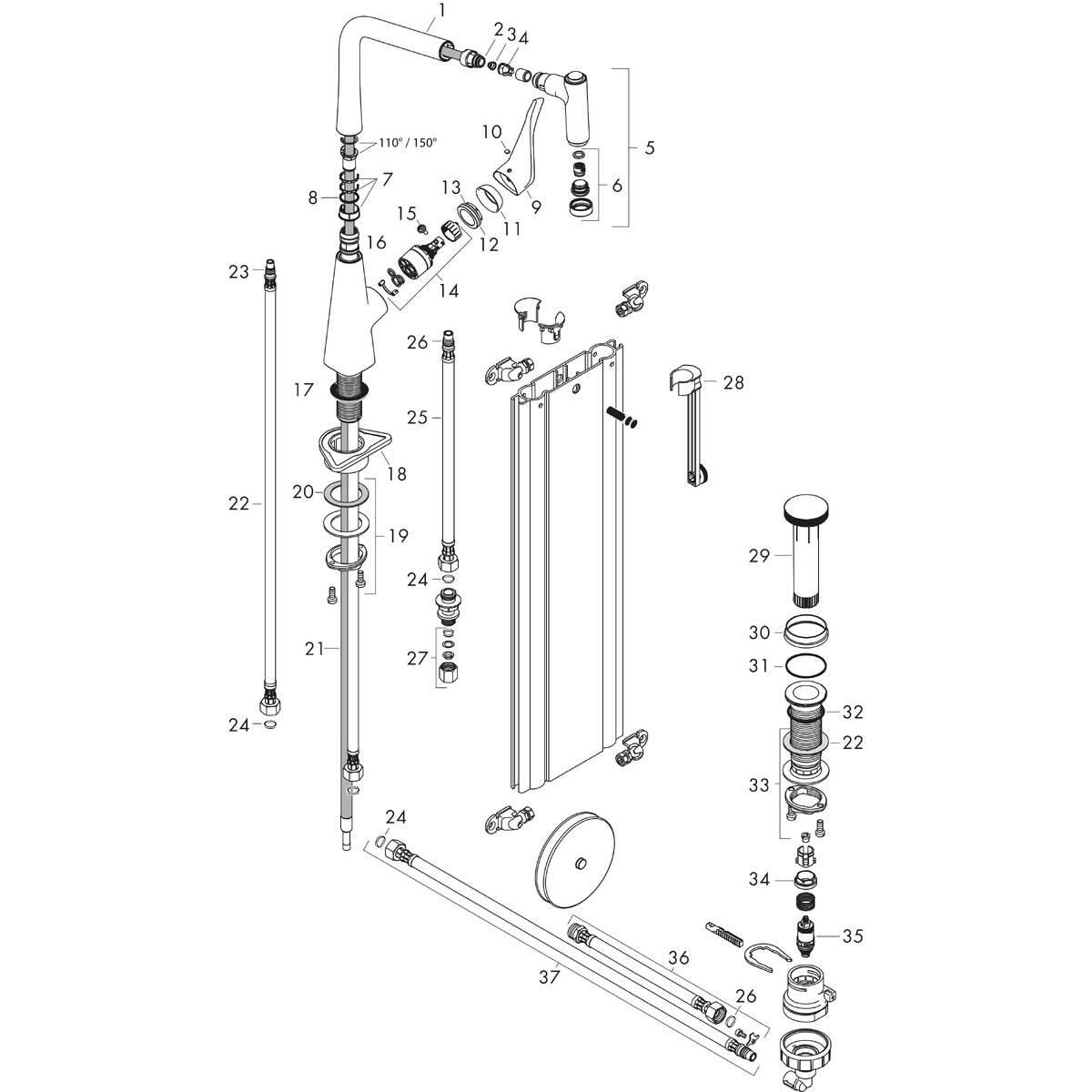

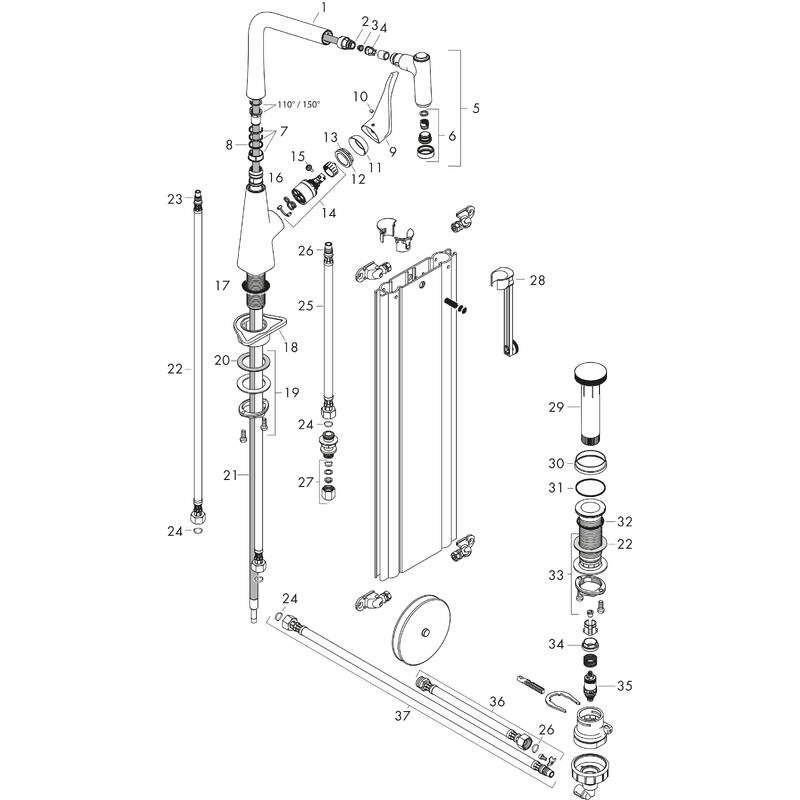

Spare parts for products 73806000
Spare parts for products 73806000
Item no. DescriptionArticle no.
1 spout cpl.98491000
2 O-ring 11x298127000
3 filter97735000
4 non return valve96737000
5 handspray98492000
6 spray former92183000
7 set of lever collars98365000
8 O-ring 21x2,598211000
9 handle98455000
10 screw cover96338000
11 flange95498000
12 nut97209000
13 O-Ring 32x298193000
14 cartridge, assy92730000
15 locking screw for handle95140000
16 seal95008000
17 seal92582000
18 support97523000
19 fixing set (Ø 34)95049000
20 lever collar97548000
21 hose93191000
22 connection hose 900 mm M8x0,75 G3/896316000
23 O-ring 7x1,598422000
24 sealing set95581000
25 connection hose 450 mm M10x1 G3/896507000
26 O-ring 8x1,7597827000
27 squeezing connection96099000
28 extension set43333000
29 turning handle93200000
30 escutcheon93201000
31 O-ring 40x1,598464000
32 O-ring 36x298156000
33 fixing set (special)93253000
34 nut92567000
35 shut off unit98463000
36 connection hose 900 mm M10x1 G3/898785000
37 connection hose 700 mm G3/8 x G3/895896000
More information in the spare parts catalogue
