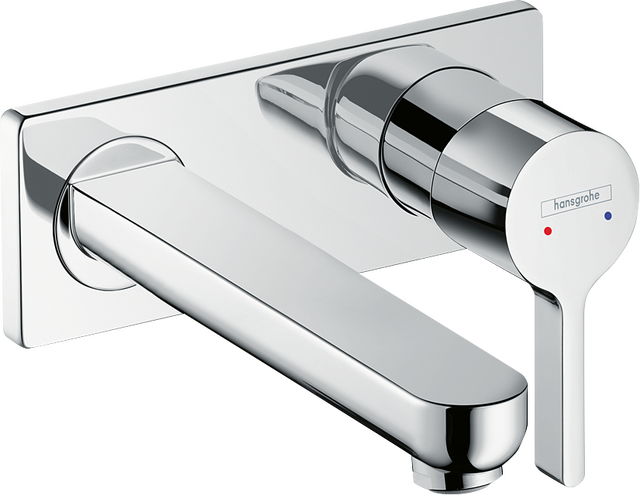

Metris S Single lever basin mixer for concealed installation wall-mounted with spout 22.5 cm
Finish Chrome
Art. no. 31163000
Remember product
Product noted
Product saved for 30 daysTo the notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
product added
Product saved for 30 daysTo the Product Comparison
The product could not be saved.
Please try again.
Please try again.
Product features
Innovative technologies
Trust in highest quality
Five-year manufacturer's guarantee
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Alternative products
Similar products
Matching products
You may also like
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Spare parts for build year 12/10
View older models in the spare parts catalogue
| Item no. | DescriptionArticle no. |
|---|
| a | base body13622180 |
| 1 | handle31093000 |
| 2 | screw cover96338000 |
| 3 | sleeve98790000 |
| 4 | nut95622000 |
| 5 | O-ring 39x1,598400000 |
| 6 | cartridge, assy92730000 |
| 7 | locking screw for handle95140000 |
| 8 | seal95008000 |
| 9 | adapter for cartridge95779000 |
| 10 | O-ring 26x298147000 |
| 11 | O-ring 43x398418000 |
| 12 | spout 220 mm95640000 |
| 13 | aerator M24x1 (5 l/min)13185000 |
| 14 | escutcheon95642000 |
| 15 | O-ring 41x298212000 |
| 16 | escutcheon95641000 |
| 17 | connecting thread G½95626000 |
| 18 | O-ring 13x298128000 |
