Metris S Electronic basin mixer with temperature pre-adjustment mains connection 230 V
Finish Chrome
Art. no. 31103000
Remember product
Product noted
Product saved for 30 daysTo the notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
product added
Product saved for 30 daysTo the Product Comparison
The product could not be saved.
Please try again.
Please try again.
Product features
Innovative technologies
Trust in highest quality
Five-year manufacturer's guarantee
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Alternative products
Similar products
Matching products
You may also like
Article features
- ComfortZone 150
- projection 128 mm
- flow rate at 3 bar: 5 l/min
- theft-proof aerator
- temperature limitation adjustable
- temperature pre-adjustable
- non-return valve
- suitable for continous flow water heaters
- infrared sensor technology
- automatic environmental adjustment of infrared sensor
- adjustable optical range of infrared sensor (2 settings)
- 230 V / 50 Hz mains connection
- hygiene rinse activatable (automatic water flow for 10 seconds every 24 hours following the last operation)
- permanent rinse activatable (single water flow for 180 seconds, suitable for thermal disinfection)
- manual water stop for washbasin cleaning
- performance may be impaired if the sensor is obscured by the design of the wash basin, or when the wash basin is oversized and the distance between sensor and the wash basin edge is larger than 75 mm
- functional restriction due to too large distance
- connection dimension: DN15
- TÜV certified
- dirt filters in the connection hoses
- two filter units with fine filter to protect from incoming dirt, for assembly on existing angle valves, filter element can be removed and cleaned
Download area
Product data sheet (PDF)BIM data
- BIM data (AutoCAD 3D) DWG, 266 KB
- BIM data (Wavefront OBJ) ZIP, 48 KB
- BIM data (ArchiCAD) GSM, 545 KB
- BIM data (3DS) 3DS, 60 KB
- BIM data (Filmbox 3D) FBX, 84 KB
- BIM data (IFC) IFC, 349 KB
- BIM data (AutoCAD 2D) DWG, 166 KB
- BIM data (Sketchup) SKP, 315 KB
- BIM data (STL) STL, 102 KB
- BIM data (Revit) FPX, 648 KB
- BIM data on BIMobject
Technical data
Instructions
- Service instruction ( Cleaning Recommendation) PDF, 722 KB
- Service instruction ( Solenoid valve) PDF, 1.5 MB
- Service instruction ( Aerator) PDF, 276 KB
- Service instruction ( Special tool) PDF, 221 KB
- Service instruction ( Electronics) PDF, 979 KB
- Service instruction ( Fixing set) PDF, 79 KB
- Service instruction ( Backflow preventer cartridge) PDF, 285 KB
- Assembly instruction (Mixer) PDF, 6.7 MB
Certificates
Certificates
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

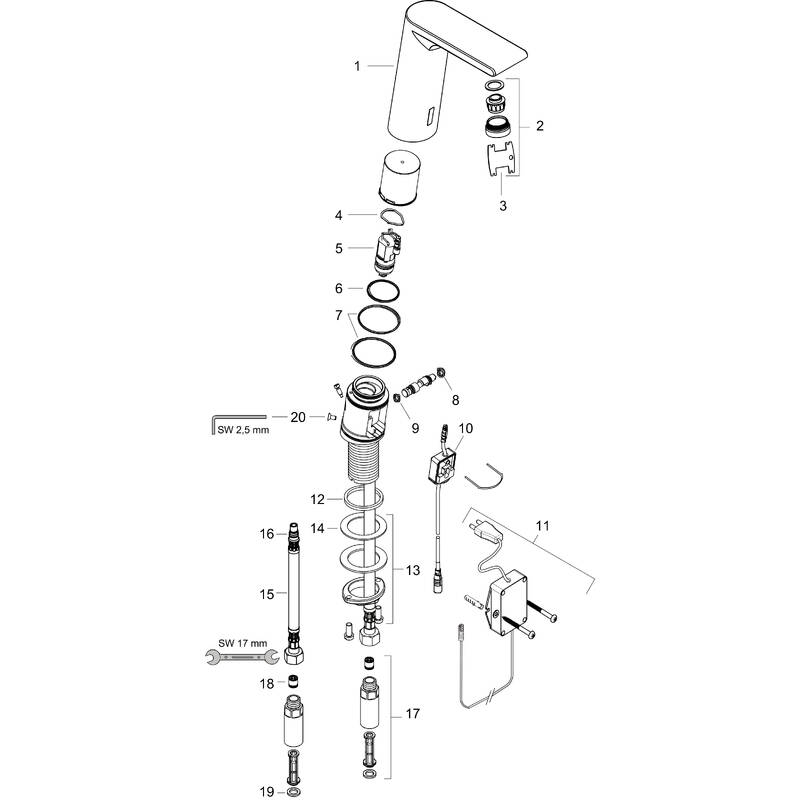

Spare parts for build year 02/16
View older models in the spare parts catalogue
| Item no. | DescriptionArticle no. |
|---|
| a | fixation extension 35 mm13898000 |
| 1 | mixer-hood92308000 |
| 2 | aerator M24x1 (5 l/min)98802000 |
| 3 | service tool98808000 |
| 4 | O-ring 17x298199000 |
| 5 | solenoid valve95654000 |
| 6 | O-ring 31x298204000 |
| 7 | O-ring 41x298212000 |
| 8 | O-ring 6x298458000 |
| 9 | O-ring 5x298215000 |
| 10 | electronics92346000 |
| 11 | transformer98800000 |
| 12 | flat seal98749000 |
| 13 | fixing set (Ø 32)13961000 |
| 14 | lever collar97548000 |
| 15 | connection hose 450 mm92345000 |
| 16 | O-ring 7x1,598422000 |
| 17 | back flow preventor cartridge with microfilter92297000 |
| 18 | non return valve DW 1096456000 |
| 19 | sealing set95581000 |
| 20 | screw93272000 |
