Logis Single lever basin mixer 210 with swivel spout without waste set
Art. no. 71131000
Remember product
Product noted
Product saved for 30 daysTo the notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
product added
Product saved for 30 daysTo the Product Comparison
The product could not be saved.
Please try again.
Please try again.
Product features
Innovative technologies
Trust in highest quality
Five-year manufacturer's guarantee
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Alternative products
Similar products
Matching products
You may also like
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

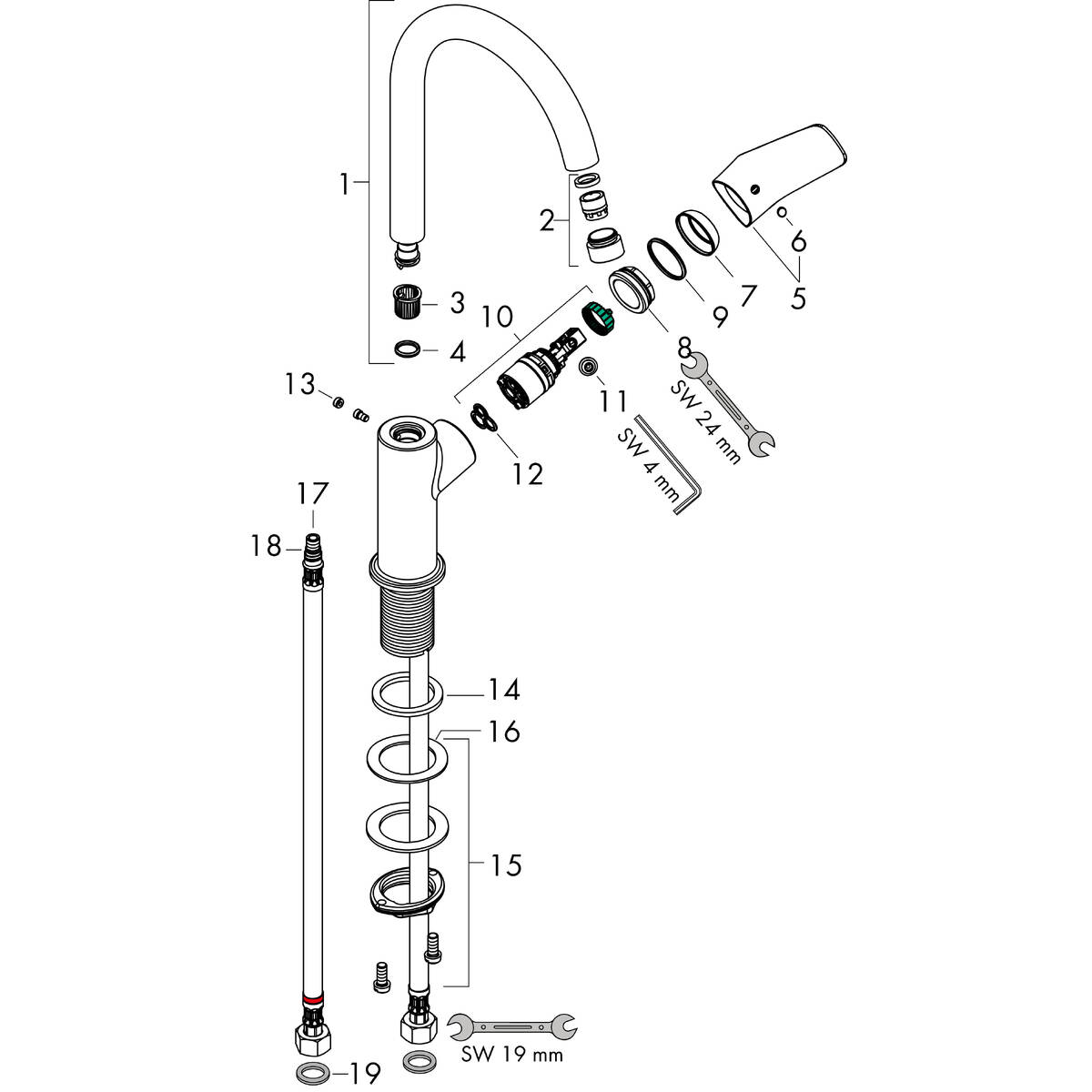

Spare parts for build year 04/14
View older models in the spare parts catalogue
| Item no. | DescriptionArticle no. |
|---|
| a | fixation extension 35 mm13898000 |
| 1 | spout cpl.95494000 |
| 2 | aerator M18x1 (5 l/min)95387000 |
| 3 | O-ring 11x298127000 |
| 4 | handle92245000 |
| 5 | screw cover96338000 |
| 6 | flange95493000 |
| 7 | nut95178000 |
| 8 | O-ring 24x298388000 |
| 9 | cartridge, assy97685000 |
| 10 | locking screw for handle95140000 |
| 11 | seal98865000 |
| 12 | screw cover95181000 |
| 13 | fixing set (Ø 32)13961000 |
| 14 | lever collar97548000 |
| 15 | O-ring 30x1,598433000 |
| 16 | connection hose 450 mm M8x0,75 G3/897206000 |
| 17 | lever collar92849000 |
| 18 | sealing set95581000 |
