Discontinued product

LivaFine Showerpipe 240 1jet EcoSmart with thermostat

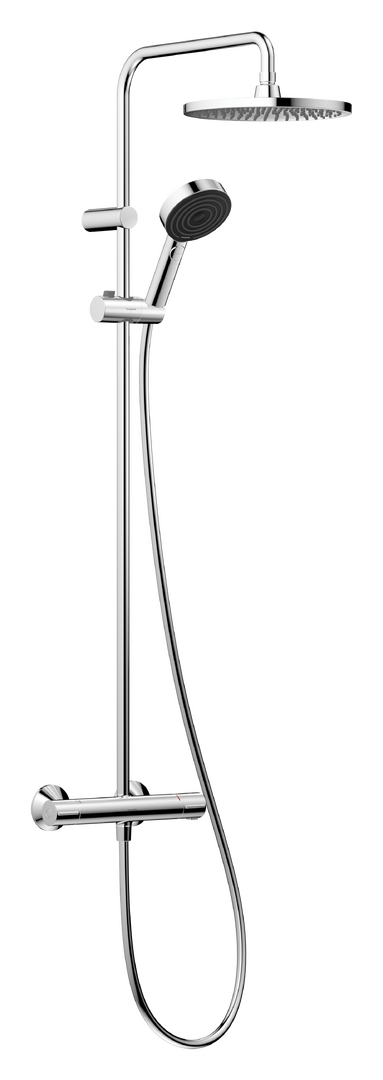

Showerpipe 240 1jet EcoSmart with thermostat Showerpipe 240 1jet EcoSmart with thermostat

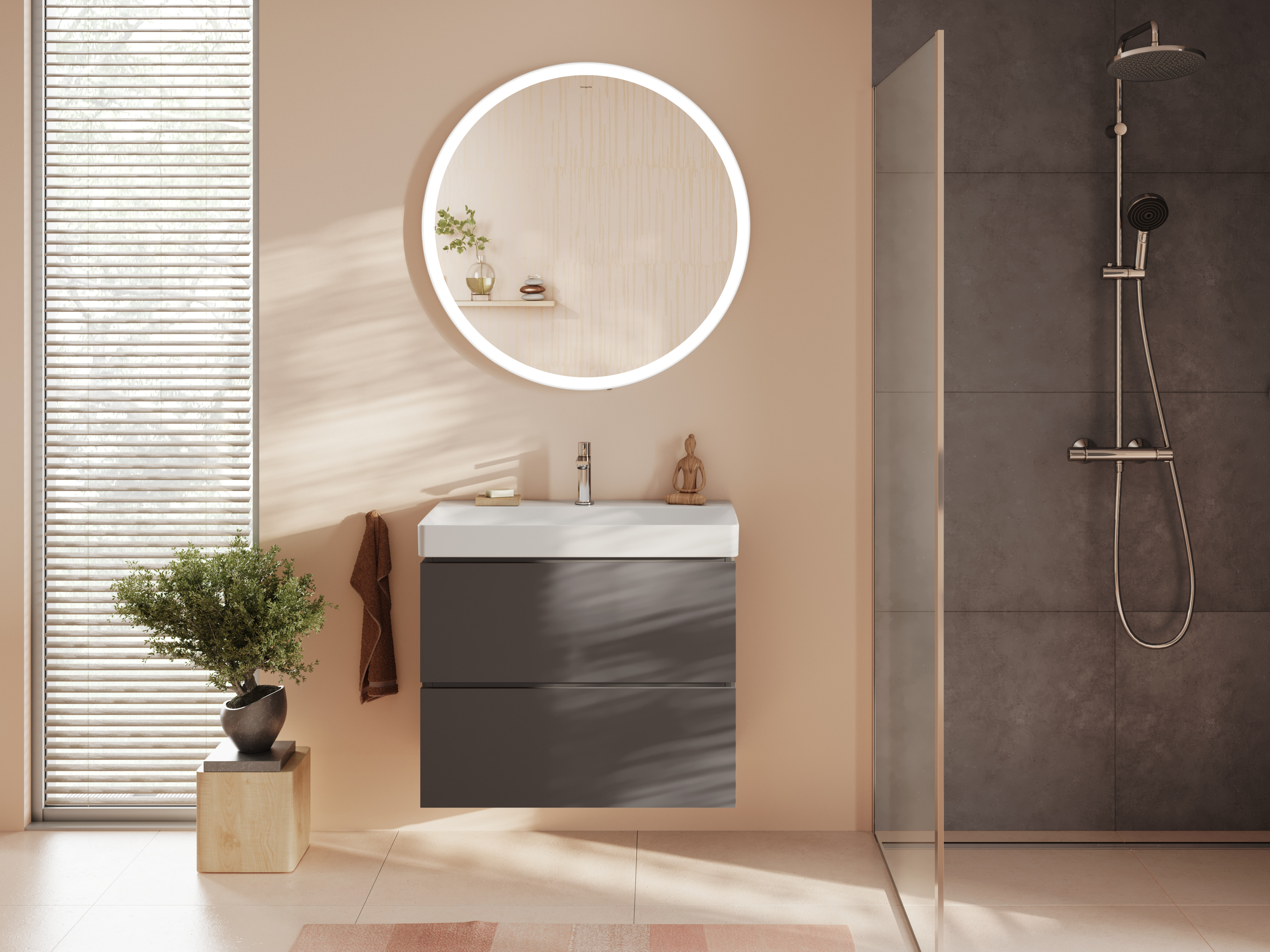

Close-up: Showerpipe 240 1jet EcoSmart with thermostat 1 Close-up: Showerpipe 240 1jet EcoSmart with thermostat 1

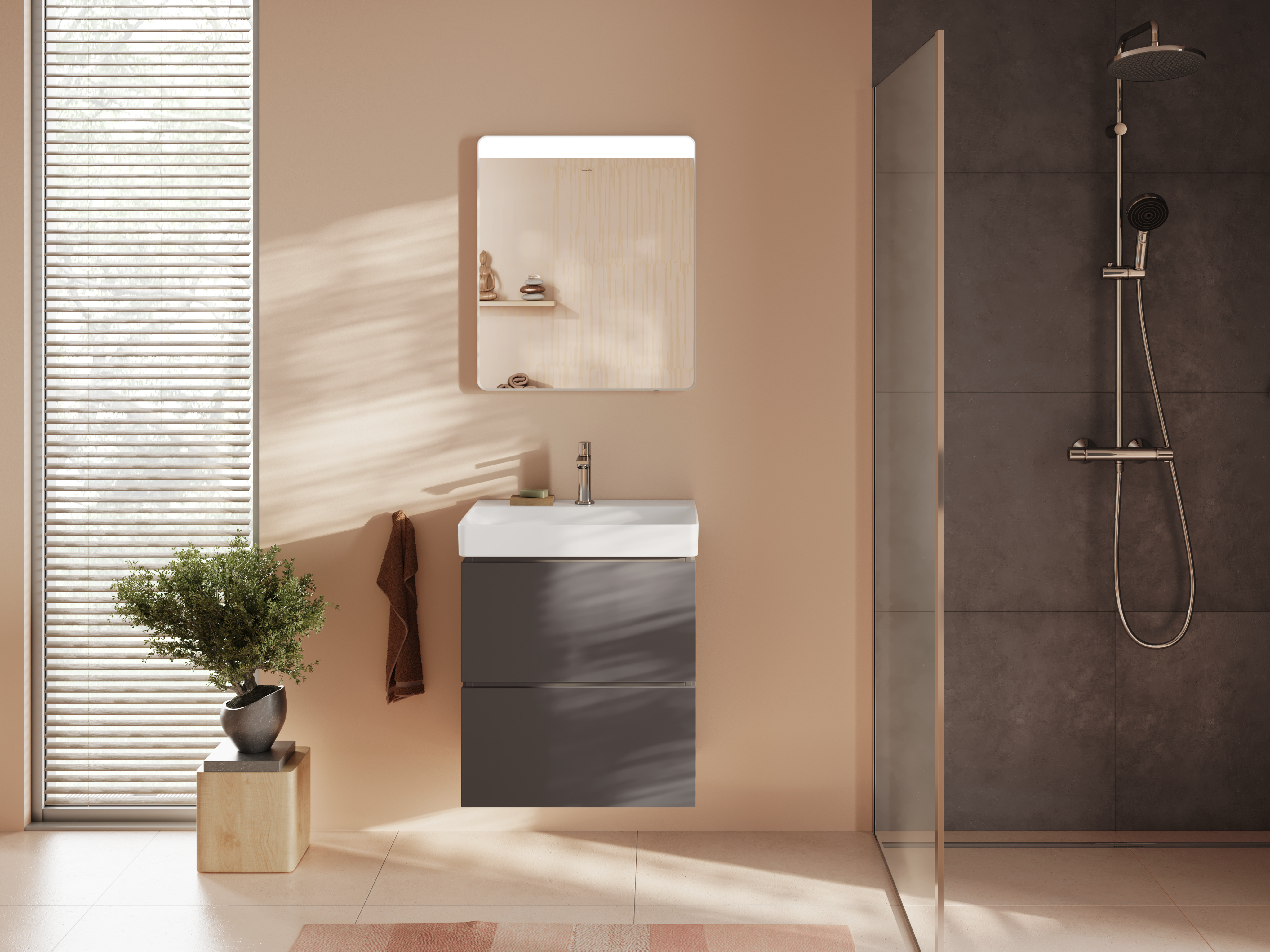

Close-up: Showerpipe 240 1jet EcoSmart with thermostat 2 Close-up: Showerpipe 240 1jet EcoSmart with thermostat 2

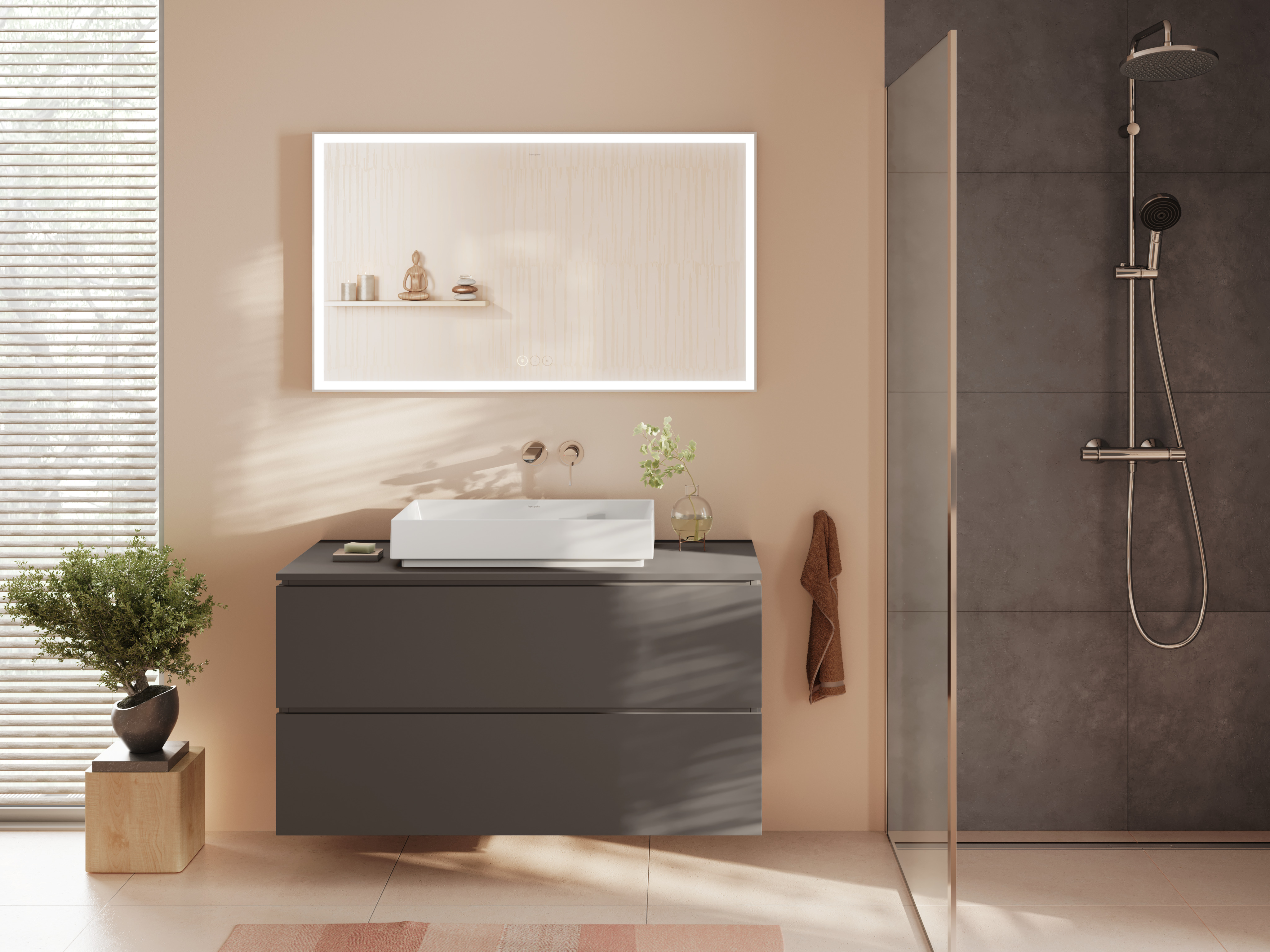

Close-up: Showerpipe 240 1jet EcoSmart with thermostat 3 Close-up: Showerpipe 240 1jet EcoSmart with thermostat 3

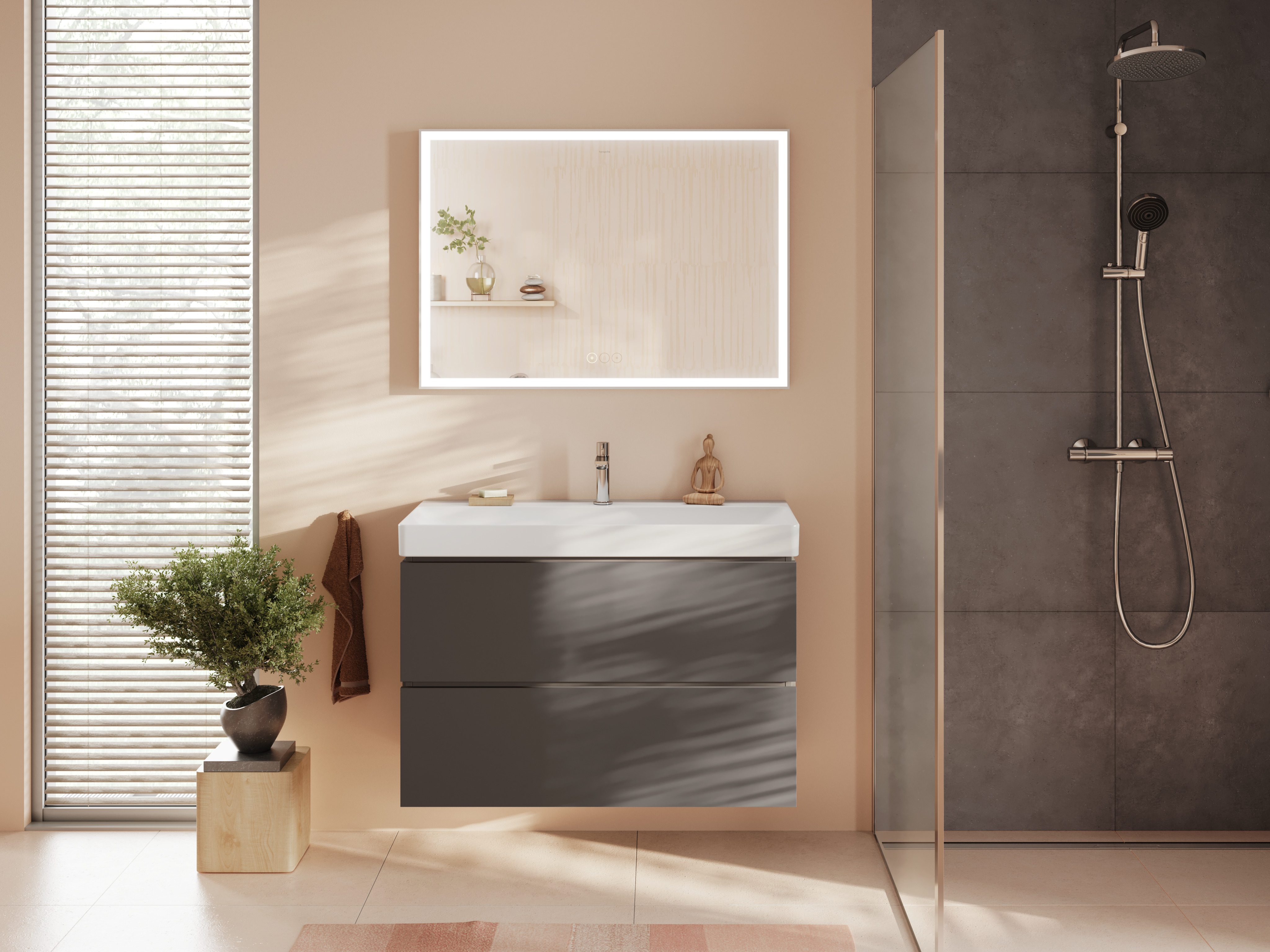

Close-up: Showerpipe 240 1jet EcoSmart with thermostat 4 Close-up: Showerpipe 240 1jet EcoSmart with thermostat 4
1 / 5

Art. no. 26076000

Find the right spare part
Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Find a specialist dealer

Installation information

Installation guide
Installation guide

Download the guide and get going

Download Guide
Professional installation
Professional installation

Leave it to the professionals

Find installer

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Scope of supply

  • Showerpipe with thermostat
  • escutcheons
  • S-connections
  • mounting material
  • assembly instruction

Article features

  • consists of: overhead shower, hand shower, shower thermostat, shower hose, shower bar, slider
  • overhead shower Crometta S 240
  • shower head size overhead shower: 240 mm
  • spray type overhead shower: Rain
  • function from: 4,4 l/min
  • flow rate IntenseRain spray at 3 bar: 6,8 l/min
  • flow rate massage spray at 3 bar: 6,7 l/min
  • flow rate Rain spray at 3 bar: 6,8 l/min
  • flow rate PowderRain spray at 3 bar: 6,8 l/min
  • spray type hand shower: PowderRain, IntenseRain, Massage spray
  • maximum flow rate for Showerpipe at 3 bar: 6,8 l/min
  • minimum flow pressure: 1 bar
  • max. operating pressure: 10 bar
  • ball-joint: overhead shower angle adjustable
  • height-adjustable slider with locking push-button slider
  • shower arm length overhead shower: 426 mm
  • thermostat Vernis
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • outlets controlled via turning handle
  • suitable for continuous flow water heaters
  • mounting type: exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • intrinsically safe against backflow
  • shower bar diameter: 19 mm
  • 2 functions

Download area

Product data sheet (PDF)

We endeavour to always provide up-to-date, complete information on our website.
However, we do not assume any liability for the up-to-dateness, accuracy, completeness or suitability of the information for particular uses.
