Art. no. 31519000
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.

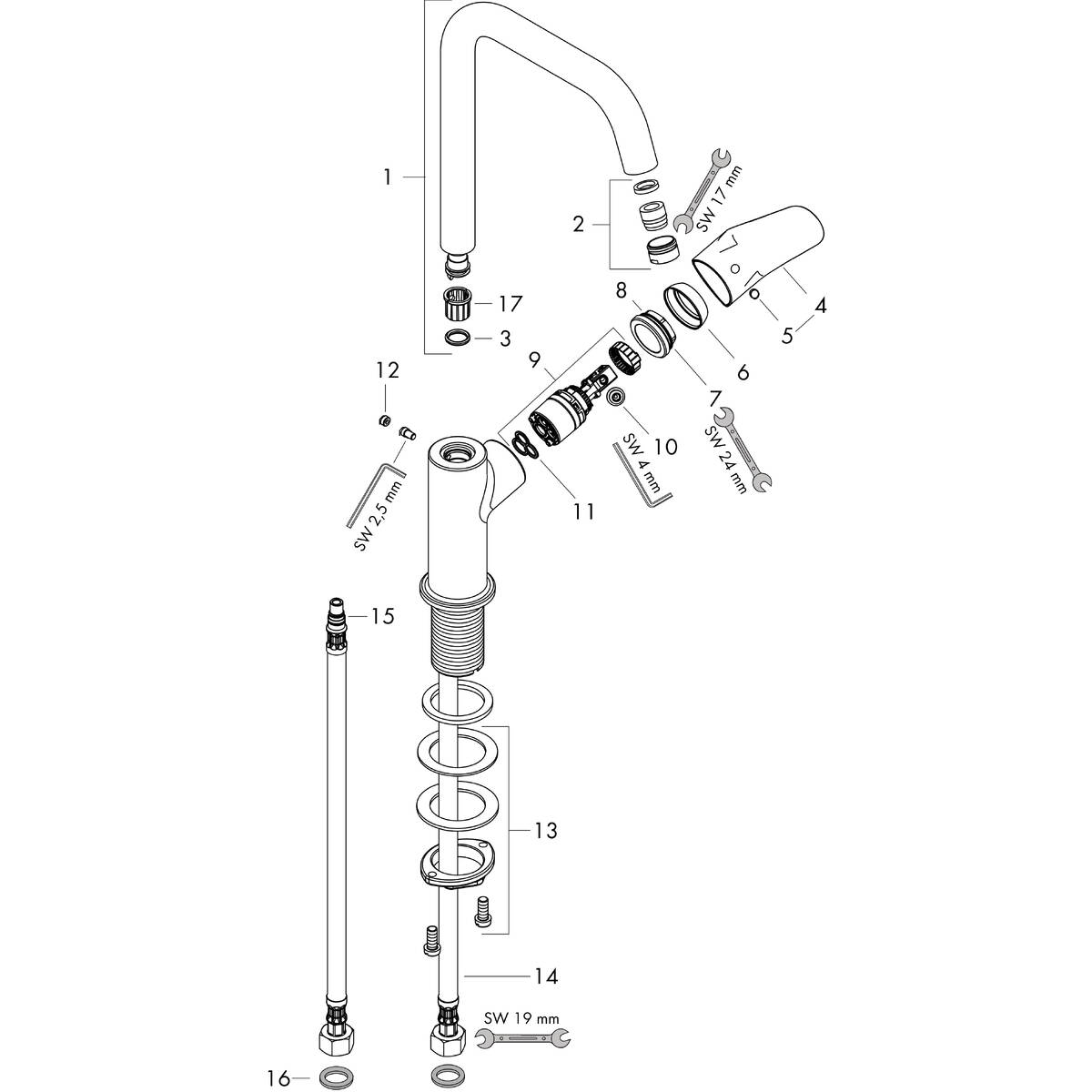

| Item no. | DescriptionArticle no. |
|---|
| a | fixation extension 35 mm13898000 |
| 1 | spout cpl.95856000 |
| 2 | aerator M18x1 (5 l/min)95384000 |
| 3 | O-ring 11x298127000 |
| 4 | handle95855000 |
| 5 | screw cover96338000 |
| 6 | flange95493000 |
| 7 | nut95178000 |
| 8 | O-ring 24x298388000 |
| 9 | cartridge, assy97685000 |
| 10 | locking screw for handle95140000 |
| 11 | seal98865000 |
| 12 | screw cover95181000 |
| 13 | fixing set (Ø 32)13961000 |
| 14 | connection hose 450 mm M8x0,75 G3/897206000 |
| 15 | O-ring 7x1,598422000 |
| 16 | sealing set95581000 |
| 17 | lever collar92849000 |
