Focus Single lever basin mixer 100 CoolStart with extra long handle without waste set

Single lever basin mixer 100 CoolStart with extra long handle without waste set
Single lever basin mixer 100 CoolStart with extra long handle without waste set
Change variant Single lever basin mixer 100 CoolStart with extra long handle without waste set
Select a variant
Single lever basin mixer 70 with extra long handle and pop-up waste set
Single lever basin mixer 100 with extra long handle and pop-up waste set
Single lever basin mixer 70 with extra long handle without waste set
Single lever basin mixer 100 with extra long handle without waste set
Single lever basin mixer 100 CoolStart with extra long handle without waste set
Finish Chrome

Art. no. 31917000

Find a specialist dealer Details
Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Compare products product added Product saved for 30 daysTo the Product Comparison The product could not be saved.
Please try again.
Product features

Innovative technologies

Excellent user comfort
ComfortZone
ComfortZone

Excellent user comfort

Generous proportions, sophisticated technology, intuitive operation. Outstanding design, high safety standards and considerably enhanced comfort: Hansgrohe showers, mixers and thermostats with this trademark extend your ComfortZone.Learn more

Save energy automatically
CoolStart
CoolStart

Save energy automatically

Wash basin mixers cleverly conserve resources with this environmentally friendly technology from Hansgrohe.Learn more

Save water, protect the climate
EcoSmart
EcoSmart

Save water, protect the climate

Hansgrohe mixers and showers, which are fitted with EcoSmart technology, require up to 60% less water than conventional products – without any loss of comfort. This means you can reduce your water and energy costs and conserve valuable resources.Learn more

Trust in highest quality

Five-year manufacturer's guarantee

Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.

Alternative products

Similar products

Pillar tap 70 without waste set

Focus Pillar tap 70 without waste set
Tap wall-mounted without waste set

Focus Tap wall-mounted without waste set
Single lever basin mixer 70 for vented hot water cylinders with pop-up waste set

Focus Single lever basin mixer 70 for vented hot water cylinders with pop-up waste set
Electronic basin mixer 130 with temperature control battery operation

Focus Electronic basin mixer 130 with temperature control battery operation
Electronic basin mixer with temperature pre-adjustment battery operation

Focus Electronic basin mixer with temperature pre-adjustment battery operation
Electronic basin mixer 130 with temperature control mains connection 230 V

Focus Electronic basin mixer 130 with temperature control mains connection 230 V
Electronic basin mixer with temperature pre-adjustment mains connection 230 V

Focus Electronic basin mixer with temperature pre-adjustment mains connection 230 V
Single lever basin mixer 100 CoolStart without waste set

Focus Single lever basin mixer 100 CoolStart without waste set
Single lever basin mixer 100 LowFlow without waste set

Focus Single lever basin mixer 100 LowFlow without waste set
Single lever basin mixer 100 without waste set

Focus Single lever basin mixer 100 without waste set
Single lever basin mixer 190 without waste set

Focus Single lever basin mixer 190 without waste set
Matching products

You may also like

2-hole rim mounted bath mixer with diverter valve and Crometta 85 hand shower 1jet

Focus 2-hole rim mounted bath mixer with diverter valve and Crometta 85 hand shower 1jet
2-hole rim mounted bath mixer

Focus 2-hole rim mounted bath mixer
Bidet set with vertical spray

Focus Bidet set with vertical spray
Single lever shower mixer for exposed installation with extra long handle

Focus Single lever shower mixer for exposed installation with extra long handle
Single lever bidet mixer with pop-up waste set

Focus Single lever bidet mixer with pop-up waste set
Single lever bidet mixer with push-open waste set

Focus Single lever bidet mixer with push-open waste set
Single lever bath and shower mixer Monotrou

Focus Single lever bath and shower mixer Monotrou
Single lever bath mixer Monotrou

Focus Single lever bath mixer Monotrou
4-hole rim mounted bath mixer

Focus 4-hole rim mounted bath mixer
Single lever bath and shower mixer Monotrou with 2 flow rates

Focus Single lever bath and shower mixer Monotrou with 2 flow rates
Single lever bath mixer for exposed installation

Focus Single lever bath mixer for exposed installation

Article features

  • ComfortZone 100
  • larger print for greater clarity
  • with extra long barrier-free handle
  • projection 119 mm
  • laminar spray
  • flow rate at 3 bar: 5 l/min
  • ceramic cartridge
  • temperature limitation adjustable
  • suitable for continuous flow water heaters
  • connection type: G ⅜ connections
  • connection dimension: DN15
  • cold water in middle position

Download area

Product data sheet (PDF)

Planning data

Technical data

Instructions

Installation information

Find plumber Assembly instruction (Mixer)  PDF, 9.2 MB

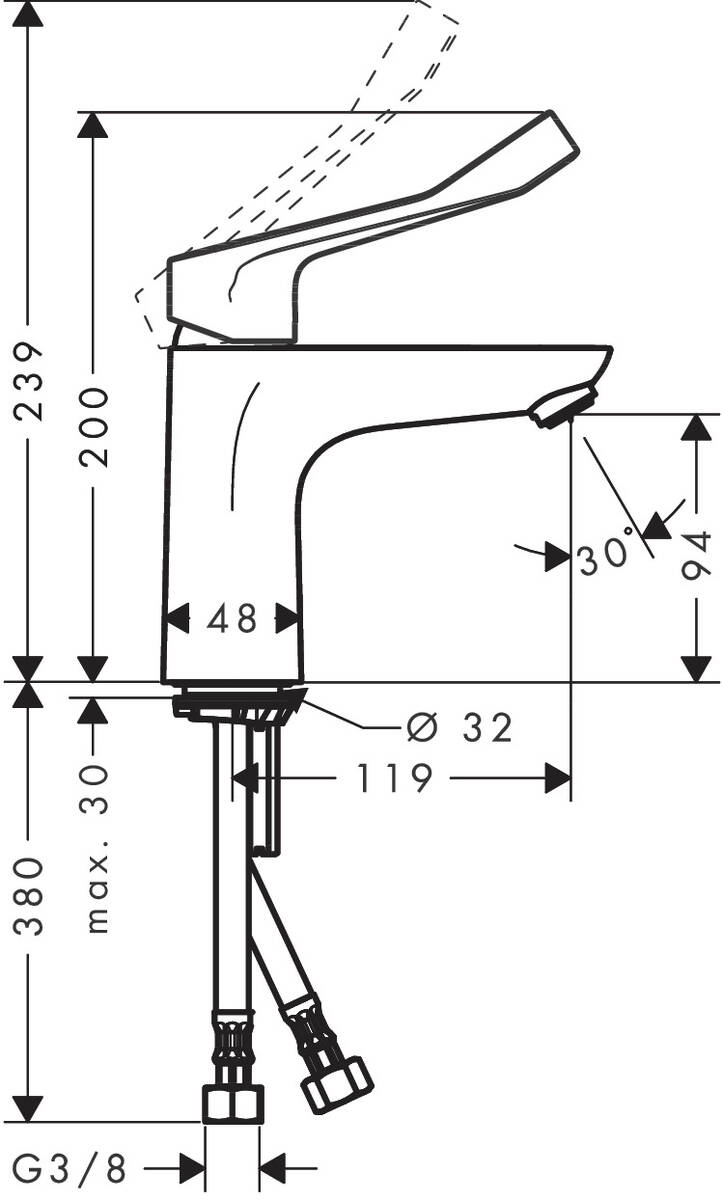

Scale drawing
Flow diagram

Scope of supply

  • single lever basin mixer
  • connection hoses
  • fixing set
  • assembly instruction

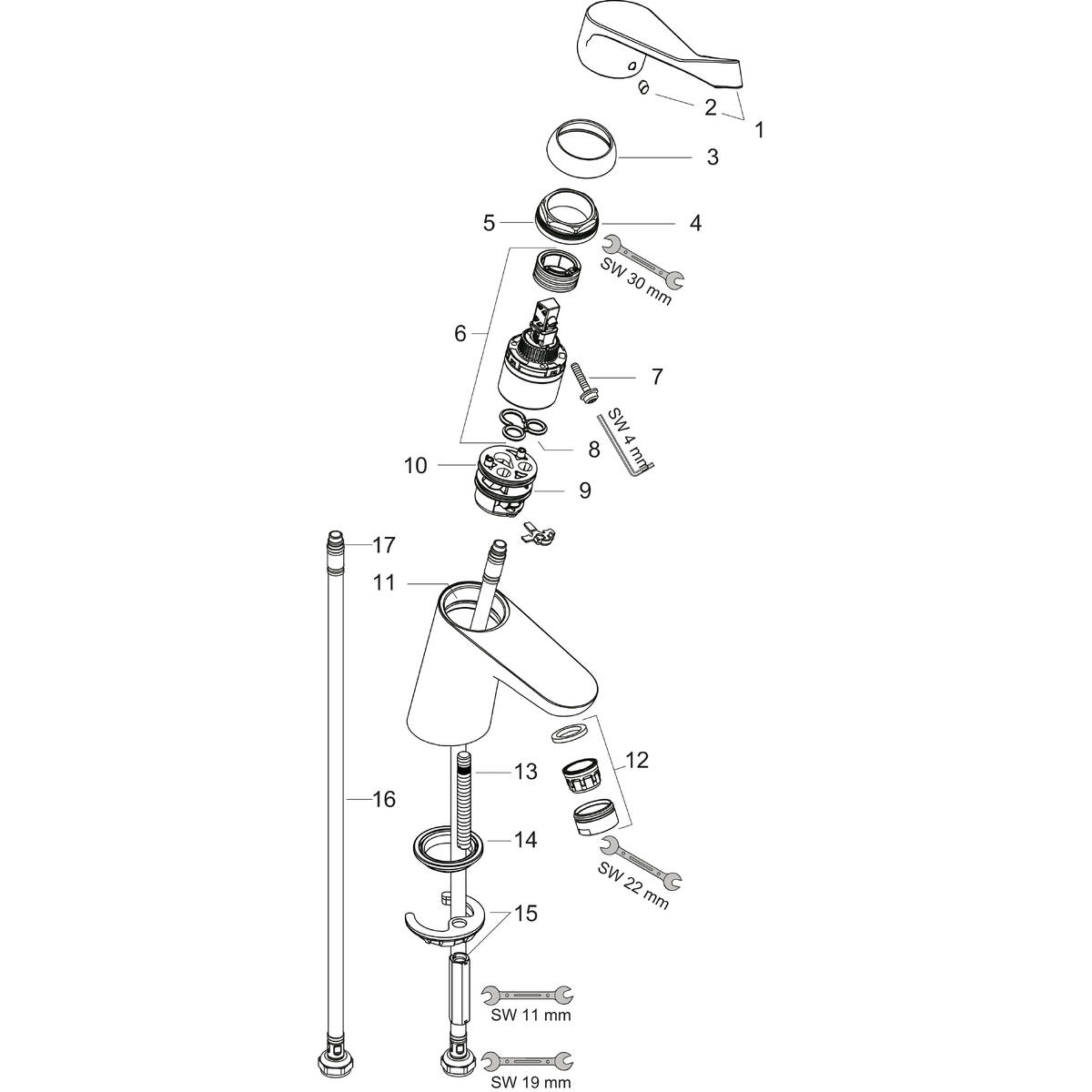

Spare parts for build year 04/17

View older models in the spare parts catalogue
Spare parts for products 31917000
Spare parts for products 31917000
Item no. DescriptionArticle no.
1 handle92452000
2 screw cover96338000
3 flange97406000
4 nut97209000
5 O-Ring 32x298193000
6 cartridge, assy92730000
7 locking screw for handle95140000
8 seal95008000
9 adapter for cartridge98324000
10 O-Ring 30x298186000
11 O-ring 35x292604000
12 aerator laminar M24x1 (5 l/min)95987000
13 screw M8 x 6897736000
14 seal Ø 4298722000
15 fixing set96016000
16 connection hose 450 mm M8x0,75 G3/897206000
17 sealing set95581000
More information in the spare parts catalogue
