Art. no. 13141000
Products with this shower technology combined water with air to pamper you with more voluminous, lighter and softer water droplets on your skin. For greater showering pleasure with water efficiency.Learn more
Is there anyone who likes cleaning? With QuickClean, limescale deposits and dirt on hansgrohe faucets and showers disappear in an instant. Just rub off the flexible nubs made of silicone.Learn more
Thermostatic mixers fitted with CoolContact cooling technology don’t get hot. The housing always stays nice and cool because the cold water inside it is directed straight to the surface. This can only mean one thing for you and your children: more safety in the bathroom.Learn more
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Planning data
BIM data
Technical data
Item no. | DescriptionArticle no. |
---|
a | brake disc92832000 |
c | ball s-unions with escutcheon98293000 |
d | diverter fixing device97211000 |

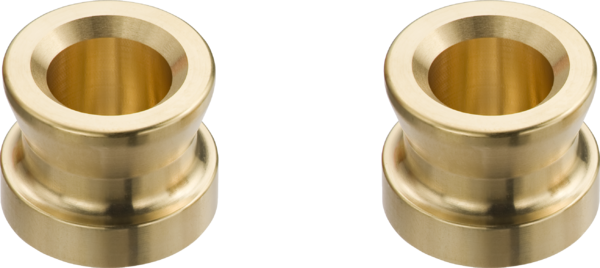

b | adapter for ball S - union02026000 |
e | Grease90920000 |
1 | handle for thermostat95770000 |
2 | safety set95771000 |
3 | handle fixing set92130000 |
4 | nut98913000 |
5 | thermostat cartridge98282000 |
6 | cartridge for exchanged connections92373000 |
7 | shut off unit94149000 |
8 | spout cpl.92169000 |
9 | aerator M24x1 (30 l/min)96512000 |
10 | diverter knob97981000 |
11 | sleeve97979000 |
12 | selector97978000 |
13 | hollow set screw M6x16 including o-ring 29x398372000 |
14 | escutcheon92694000 |
15 | seal97530000 |
16 | non return valve (pressure-resistant up to 2 MPa)95773000 |
17 | O-ring 17x298199000 |
18 | set of S-unions95772000 |
19 | noise reduction96429000 |
20 | O-ring 29x398371000 |
