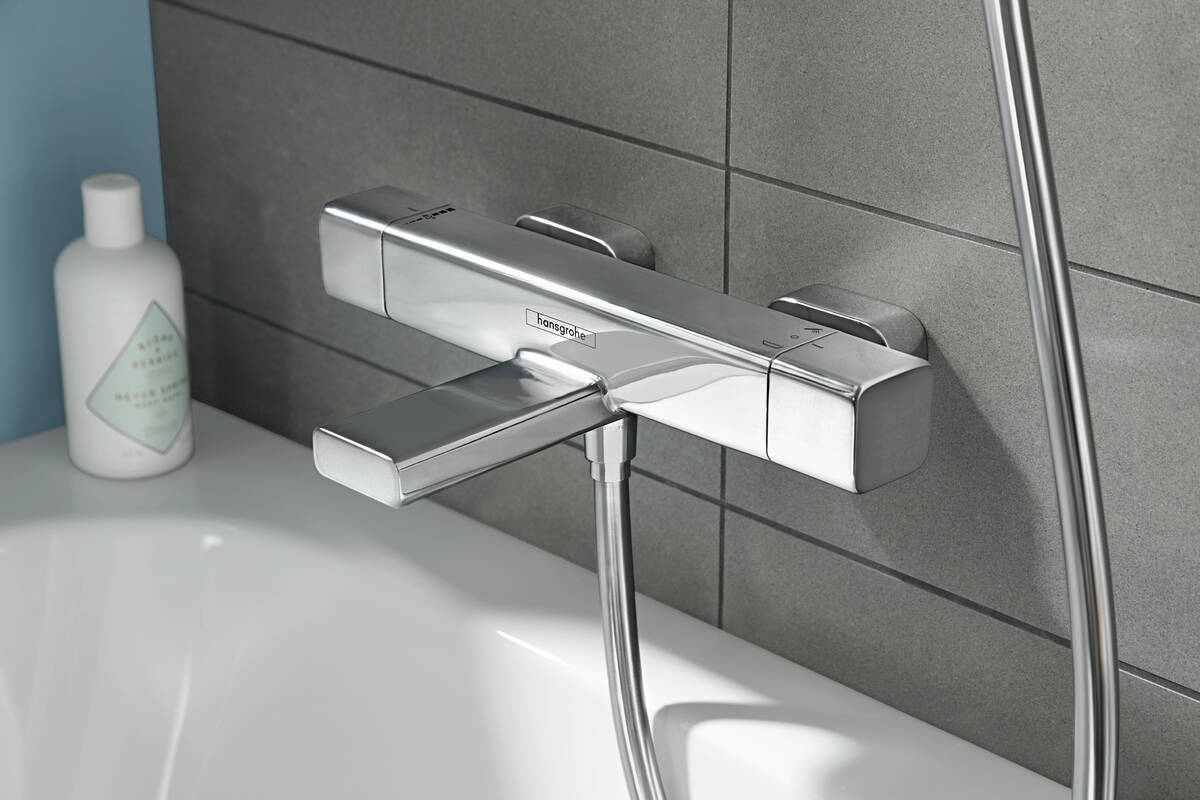

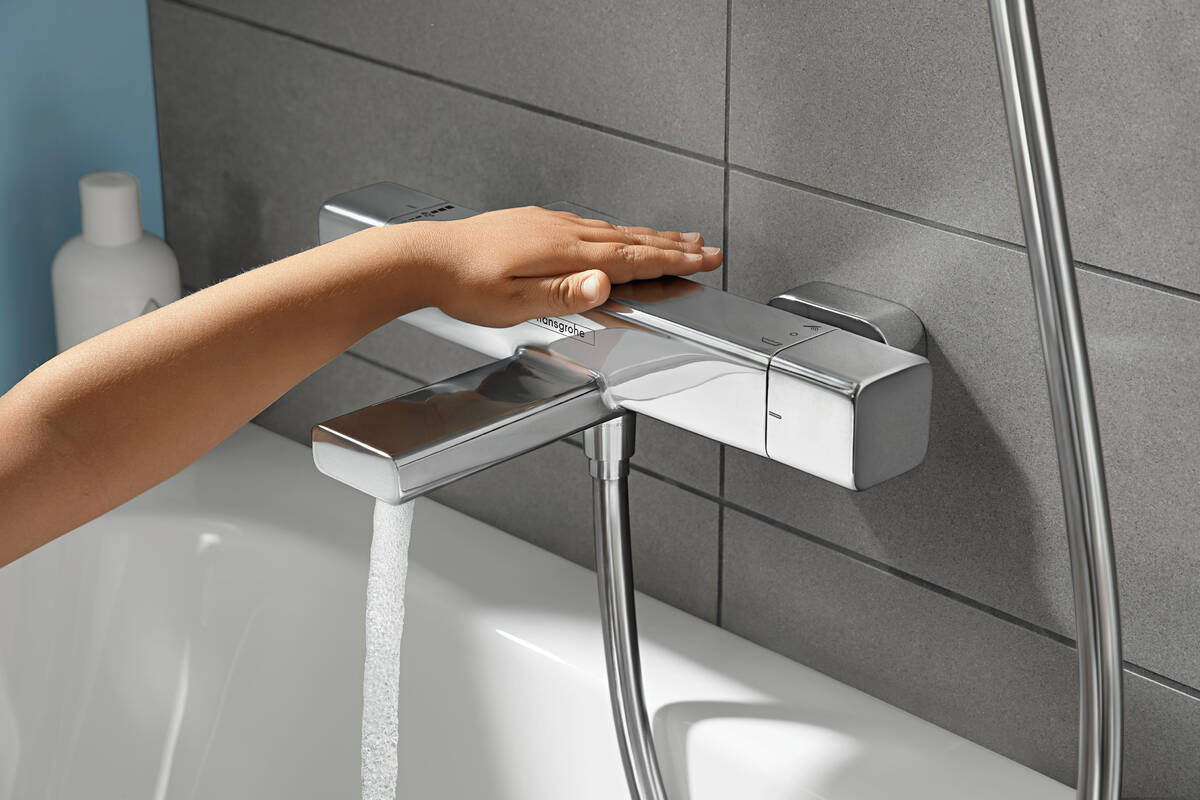

Ecostat E Bath thermostat for exposed installation
Finish Chrome
Art. no. 15774000
Remember product
Product noted
Product saved for 30 daysTo the notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
product added
Product saved for 30 daysTo the Product Comparison
The product could not be saved.
Please try again.
Please try again.
Product features
Innovative technologies
Awards
Design Awards
Trust in highest quality
Five-year manufacturer's guarantee
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Alternative products
Similar products
Matching products
You may also like
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Scope of supply
- Bath thermostat
- S-connections
- mounting material
- assembly instruction
Spare parts for build year 08/19
View older models in the spare parts catalogue
| Item no. | DescriptionArticle no. |
|---|
| 1 | handle93520000 |
| 2 | pushbutton92848000 |
| 3 | handle fixing set93228000 |
| 4 | safety set93519000 |
| 5 | nut98913000 |
| 6 | shut off unit with selector98283000 |
| 7 | thermostat cartridge98282000 |
| 8 | connecting thread95392000 |
| 9 | O-ring 14x298129000 |
| 10 | aerator M24x1 (38 l/min)95871000 |
| 11 | set of unions94285000 |
| 12 | set of nuts96157000 |
| 13 | non return valve (pressure-resistant up to 2 MPa)93136000 |
| 14 | non return valve96737000 |
| 15 | O-ring 17x1,598137000 |
| 16 | filter packing96922000 |
| 17 | escutcheon93518000 |
| 18 | set of S-unions (±12 mm)94140000 |
