Discontinued product

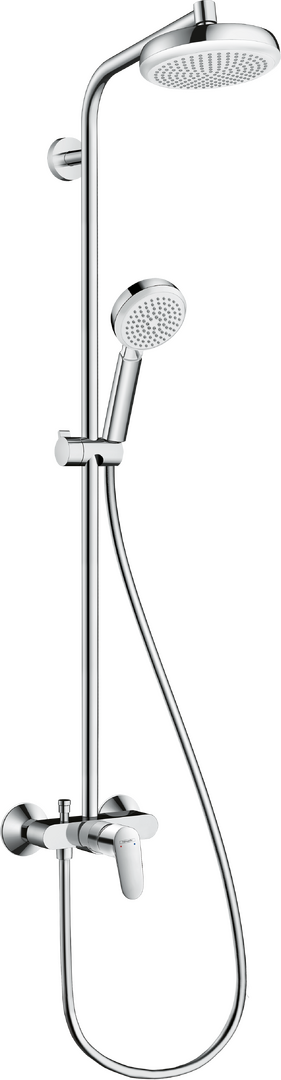

Crometta Showerpipe 160 1jet with single lever mixer

Showerpipe 160 1jet with single lever mixer Showerpipe 160 1jet with single lever mixer

Art. no. 27266400

Find the right spare part
Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Find a specialist dealer

Optional accessories

Wall bar spacer for Croma 100 Showerpipe

 Wall bar spacer for Croma 100 Showerpipe
Crometta Showerpipe 160 1jet with single lever mixer

Find the right spare part

+
_
{{part.number}}
{{part.text}} Art. no.  {{part.articleNumber}}

Installation information

Installation guide
Installation guide

Download the guide and get going

Download Guide
Professional installation
Professional installation

Leave it to the professionals

Find installer

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Scope of supply

  • Showerpipe with single lever mixer
  • escutcheons
  • S-connections
  • mounting material
  • assembly instruction

Article features

  • consists of: overhead shower, hand shower, single lever shower mixer, shower hose, slider, shower bar
  • overhead shower Crometta 160
  • shower head size overhead shower: 160 mm
  • spray type overhead shower: Rain
  • spray type hand shower: Rain, Massage spray, Shampoo spray, normal spray
  • flow rate of hand shower at 3 bar: 16 l/min
  • maximum flow rate for Showerpipe at 3 bar: 16 l/min
  • minimum flow pressure: 1 bar
  • max. operating pressure: 10 bar
  • ball-joint: overhead shower angle adjustable
  • slide inclination angle can be adjusted by 45°
  • pipe can be shortened in height
  • shower bar diameter: 22 mm
  • height-adjustable hand shower holder
  • shower arm length overhead shower: 350 mm
  • suitable for continuous flow water heaters with an output of 18 kW
  • mounting type: exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • ceramic cartridge
  • temperature limitation adjustable
  • 2 functions
  • flow rate Rain spray at 3 bar: 16 l/min

Download area

Product data sheet (PDF)

Planning data

BIM data

Technical data

Instructions

Certificates

Certificates

Certificates

Environmental Product Declaration

An EPD is an Environmental Product Declaration. It is like an environmental identity card for products based on the results of a Life Cycle Assessment.

Environmental Product Declaration
Show certificate
Environmental Product Declaration
An EPD is an Environmental Product Declaration. It is like an environmental identity card for products based on the results of a Life Cycle Assessment.
