Discontinued product

Crometta S Showerpipe 240 1jet with bath thermostat DZR

Showerpipe 240 1jet with bath thermostat DZR Showerpipe 240 1jet with bath thermostat DZR
Change variant Showerpipe 240 1jet with bath thermostat DZR

Select a variant

Finish Chrome

Art. no. 27892000

Find the right spare part
Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Find a specialist dealer

Optional accessories

Wall bar spacer for Croma 100 Showerpipe

 Wall bar spacer for Croma 100 Showerpipe
Crometta S Showerpipe 240 1jet with bath thermostat DZR

Find the right spare part

+
_
{{part.number}}
{{part.text}} Art. no.  {{part.articleNumber}}

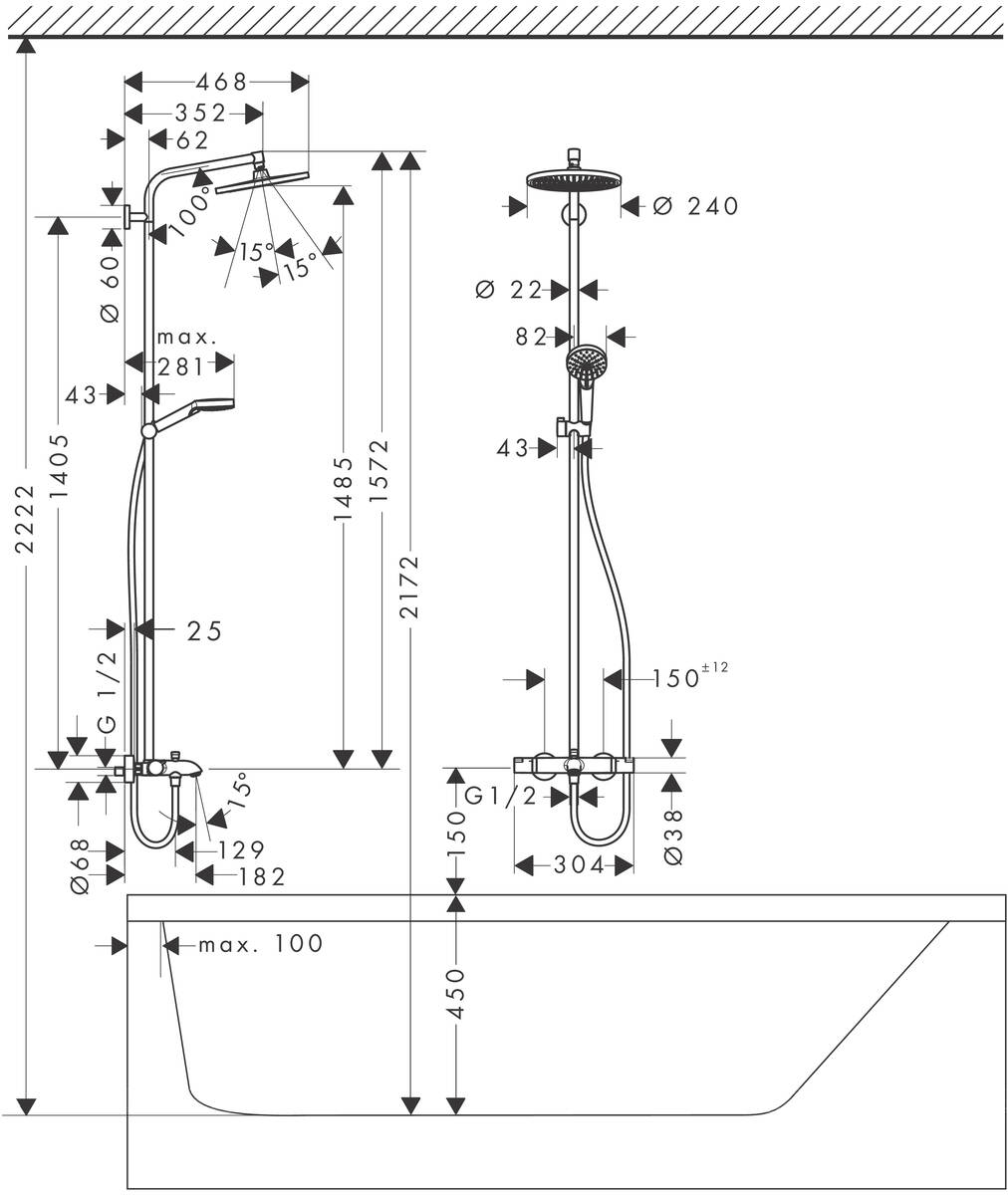

Installation information

Installation guide
Installation guide

Download the guide and get going

Download Guide
Professional installation
Professional installation

Leave it to the professionals

Find installer

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Scope of supply

  • Showerpipe with bath thermostat
  • escutcheons
  • S-connections
  • mounting material
  • assembly instruction

Article features

  • consists of: overhead shower, hand shower, bath thermostat, shower hose, slider
  • overhead shower Crometta S 240
  • shower head size overhead shower: 240 mm
  • spray type overhead shower: Rain
  • spray disc surface: chrome
  • flow rate bath filler: 20 l/min
  • spray type hand shower: Rain, IntenseRain

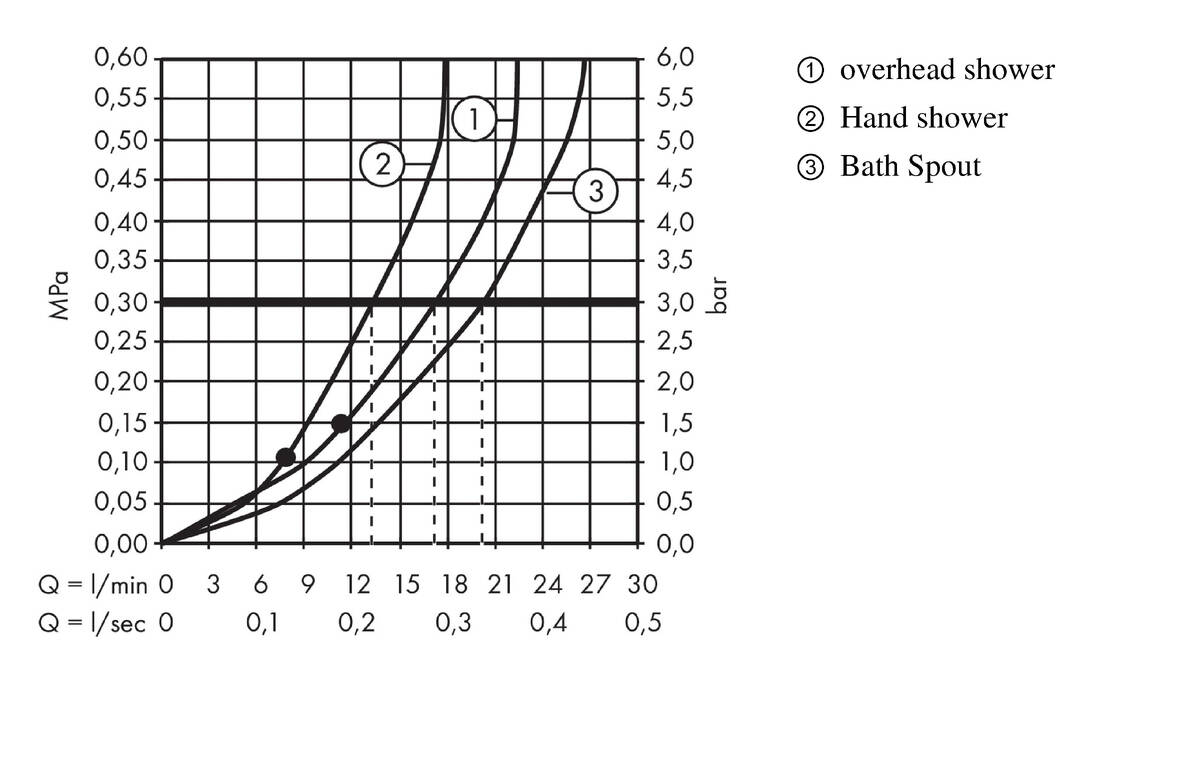

  • maximum flow rate for Showerpipe at 3 bar: 20 l/min
  • minimum flow pressure: 1 bar
  • max. operating pressure: 10 bar
  • ball-joint: overhead shower angle adjustable
  • slide inclination angle can be adjusted by 45°
  • height-adjustable slider
  • shower arm length overhead shower: 350 mm
  • thermostat Ecostat Comfort
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • outlets controlled via turning handle
  • suitable for continuous flow water heaters
  • mounting type: exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • pipe can be shortened in height
  • intrinsically safe against backflow
  • shower bar diameter: 25 mm
  • 3 functions
