Discontinued product

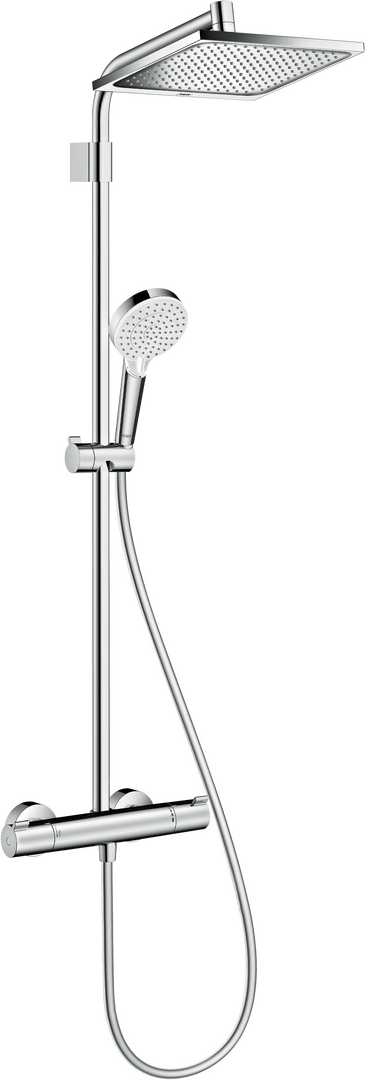

Crometta E Showerpipe 240 1jet with thermostat Varia

Showerpipe 240 1jet with thermostat Varia Showerpipe 240 1jet with thermostat Varia
Change variant Showerpipe 240 1jet with thermostat Varia

Select a variant

Finish Chrome

Art. no. 26785000

Find the right spare part
Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Find a specialist dealer
Crometta E Showerpipe 240 1jet with thermostat Varia

Find the right spare part

+
_
{{part.number}}
{{part.text}} Art. no.  {{part.articleNumber}}

Installation information

Installation guide
Installation guide

Download the guide and get going

Download Guide
Professional installation
Professional installation

Leave it to the professionals

Find installer

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Scope of supply

  • Showerpipe with thermostat
  • escutcheons
  • S-connections
  • mounting material
  • assembly instruction

Article features

  • consists of: overhead shower, hand shower, shower thermostat, shower hose, shower bar
  • overhead shower Crometta E 240
  • shower head size overhead shower: 240 x 240 mm
  • spray type overhead shower: Rain
  • function from: 5,1 l/min
  • flow rate RainAir spray at 3 bar: 15 l/min
  • flow rate Rain spray at 3 bar: 15 l/min
  • spray type hand shower: Rain, IntenseRain
  • maximum flow rate of hand shower at 3 bar: 13,8 l/min
  • maximum flow rate for Showerpipe at 3 bar: 15 l/min
  • minimum flow pressure: 1 bar
  • max. operating pressure: 10 bar
  • ball-joint: overhead shower angle adjustable
  • height-adjustable slider
  • shower arm length overhead shower: 350 mm
  • thermostat Ecostat 1001 CL
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • outlets controlled via turning handle
  • suitable for continuous flow water heaters
  • mounting type: exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • variable wall support
  • pipe can be shortened in height
  • intrinsically safe against backflow
  • shower bar diameter: 22 mm
  • 2 functions

Download area

Product data sheet (PDF)
Certificates

Certificates

Certificates

Environmental Product Declaration

An EPD is an Environmental Product Declaration. It is like an environmental identity card for products based on the results of a Life Cycle Assessment.

Environmental Product Declaration
An EPD is an Environmental Product Declaration. It is like an environmental identity card for products based on the results of a Life Cycle Assessment.
