Discontinued product

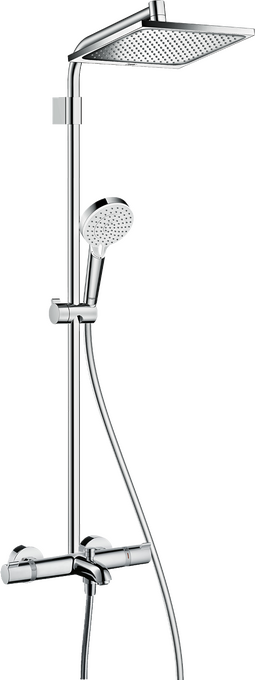

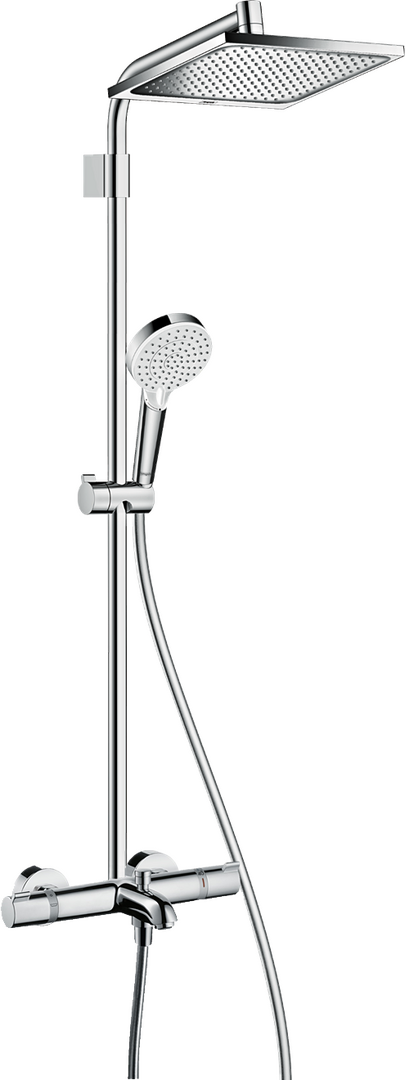

Crometta E Showerpipe 240 1jet with bath thermostat Varia DZR

Showerpipe 240 1jet with bath thermostat Varia DZR Showerpipe 240 1jet with bath thermostat Varia DZR
Change variant Showerpipe 240 1jet with bath thermostat Varia DZR

Select a variant

Finish Chrome

Art. no. 26556000

Find the right spare part
Remember product Product noted Product saved for 30 daysTo the notepad The product could not be saved.
Please try again.
Find a specialist dealer
Crometta E Showerpipe 240 1jet with bath thermostat Varia DZR

Find the right spare part

+
_
{{part.number}}
{{part.text}} Art. no.  {{part.articleNumber}}

Installation information

Professional installation
Professional installation

Leave it to the professionals

Find installer

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Scope of supply

  • Showerpipe with bath thermostat
  • escutcheons
  • S-connections
  • mounting material
  • assembly instruction

Article features

  • consists of: overhead shower, hand shower, bath thermostat, shower hose, slider
  • overhead shower Crometta E 240
  • shower head size overhead shower: 240 x 240 mm
  • spray type overhead shower: Rain
  • function from: 5,1 l/min
  • flow rate RainAir spray at 3 bar: 15 l/min
  • spray type hand shower: Rain, IntenseRain
  • maximum flow rate of hand shower at 3 bar: 13,8 l/min
  • maximum flow rate for Showerpipe at 3 bar: 13,8 l/min
  • minimum flow pressure: 1 bar
  • max. operating pressure: 10 bar
  • ball-joint: overhead shower angle adjustable
  • height-adjustable slider
  • shower arm length overhead shower: 350 mm
  • thermostat Ecostat Comfort
  • SafetyStop at 40°C
  • adjustable hot water limitation
  • outlets controlled via turning handle
  • suitable for continuous flow water heaters
  • mounting type: exposed installation
  • connection dimension: DN15
  • connection thread: G ½
  • centre distance: 150 ± 12 mm
  • variable wall support
  • variable drilling hole distance: 750 - 850 mm
  • pipe can be shortened in height
  • intrinsically safe against backflow
  • shower bar diameter: 22 mm
  • 3 functions

Download area

Product data sheet (PDF)
Certificates

Certificates

Certificates

Environmental Product Declaration

An EPD is an Environmental Product Declaration. It is like an environmental identity card for products based on the results of a Life Cycle Assessment.

Environmental Product Declaration
An EPD is an Environmental Product Declaration. It is like an environmental identity card for products based on the results of a Life Cycle Assessment.
