Discontinued product

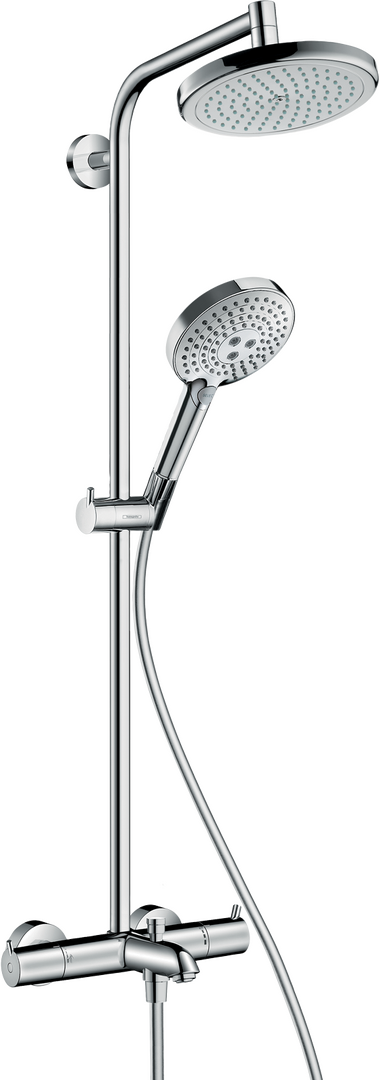

Croma Showerpipe 220 1jet with bath thermostat with hand shower 120 3jet
Art. no. 26789007
Remember product
Product noted
Product saved for 30 daysTo the notepad
The product could not be saved.
Please try again.
Please try again.
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Scope of supply
- Showerpipe with bath thermostat
- escutcheons
- S-connections
- mounting material
- assembly instruction
Article features
- consists of: overhead shower, hand shower, shower thermostat, shower hose, slider
- overhead shower Croma 220
- shower head size overhead shower: 220 mm
- spray type overhead shower: RainAir
- maximum flow rate of hand shower at 3 bar: 10 l/min
- maximum flow rate for Showerpipe at 3 bar: 17,4 l/min
- minimum flow pressure: 0,6 bar
- max. operating pressure: 10 bar
- ball-joint: overhead shower angle adjustable
- height-adjustable slider
- shower arm length overhead shower: 350 mm
- thermostat Ecostat 1001 SL
- safety stop at 38°C
- adjustable hot water limitation
- outlets controlled via turning handle
- suitable for continuous flow water heaters
- mounting type: exposed installation
- connection dimension: DN15
- connection thread: G ½
- centre distance: 150 ± 12 mm
- intrinsically safe against backflow
- shower bar diameter: 22 mm
- 3 functions
Download area
Certificates
Certificates
Certificates
Environmental Product Declaration
An EPD is an Environmental Product Declaration. It is like an environmental identity card for products based on the results of a Life Cycle Assessment.
We endeavour to always provide up-to-date, complete information on our website.
However, we do not assume any liability for the up-to-dateness, accuracy, completeness or suitability of the information for particular uses.
