Discontinued product

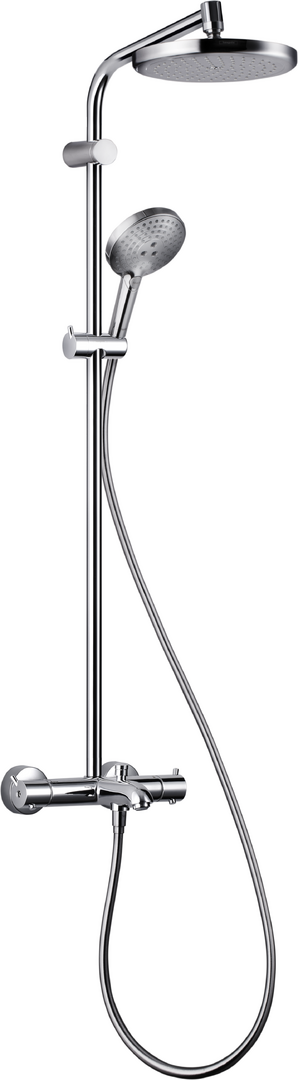

Croma Showerpipe 220 1jet with bath thermostat OCJ
Art. no. 26174007
Remember product
Product noted
Product saved for 30 daysTo the notepad
The product could not be saved.
Please try again.
Please try again.
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Scope of supply
- Showerpipe with bath thermostat
- escutcheons
- S-connections
- mounting material
- assembly instruction
Article features
- consists of: overhead shower, hand shower, bath thermostat, shower hose, slider
- overhead shower Croma 220 Air
- shower head size overhead shower: 220 mm
- spray type overhead shower: RainAir
- maximum flow rate for Showerpipe at 3 bar: 18 l/min
- minimum flow pressure: 3 bar
- max. operating pressure: 10 bar
- ball-joint: overhead shower angle adjustable
- height-adjustable slider
- thermostat Ecostat Comfort
- SafetyStop at 40°C
- adjustable hot water limitation
- outlets controlled via turning handle
- suitable for continuous flow water heaters
- mounting type: exposed installation
- connection dimension: DN15
- connection thread: G ½
- centre distance: 150 ± 12 mm
- intrinsically safe against backflow
- shower bar diameter: 22 mm
- 3 functions
