Croma Showerpipe 160 1jet with thermostat
Art. no. 27135000
Remember product
Product noted
Product saved for 30 daysTo the notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
product added
Product saved for 30 daysTo the Product Comparison
The product could not be saved.
Please try again.
Please try again.
Product features
Innovative technologies
Trust in highest quality
Five-year manufacturer's guarantee
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Alternative products
Similar products
Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Scope of supply
- Showerpipe with thermostat
- escutcheons
- S-connections
- mounting material
- assembly instruction

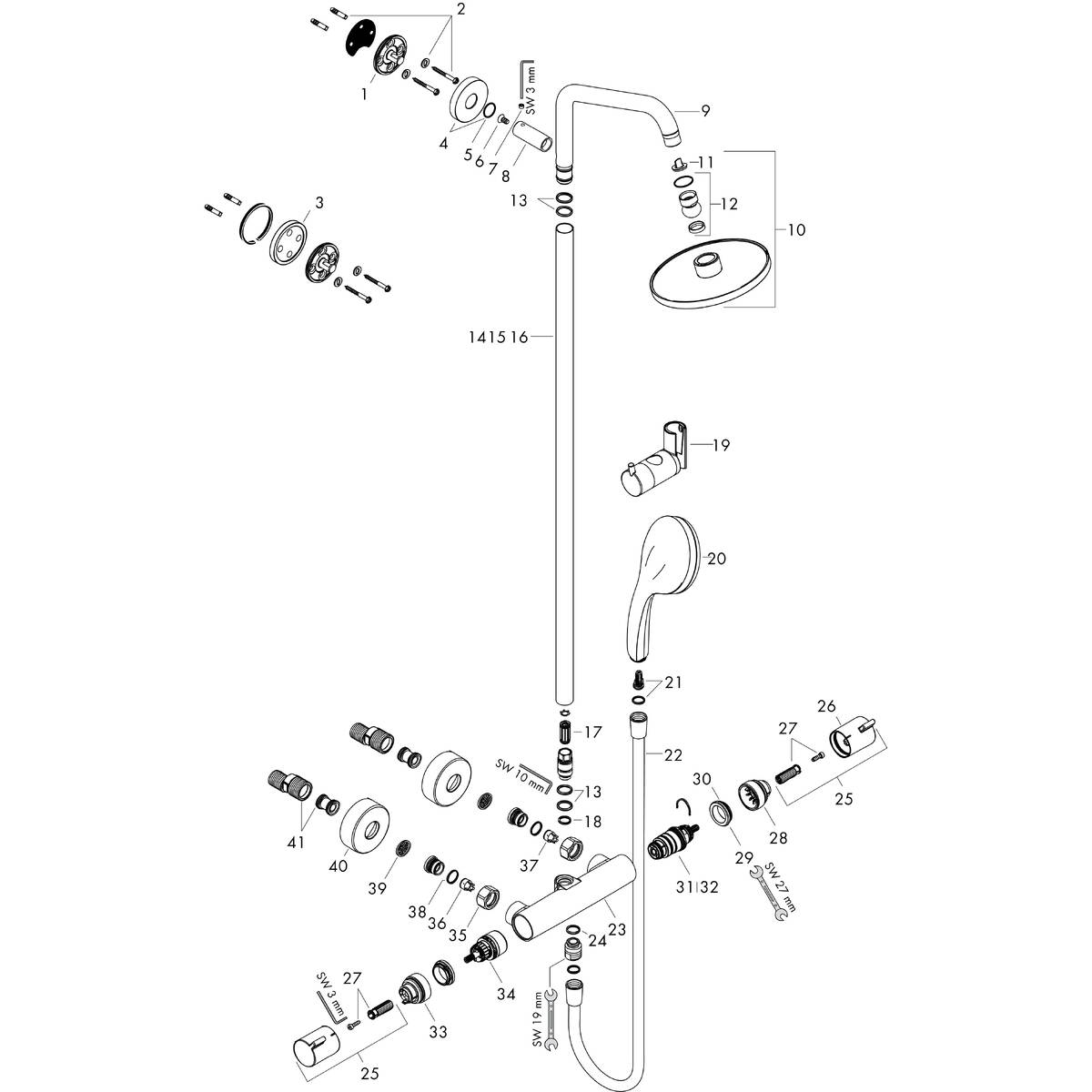

Spare parts for build year 03/12
View older models in the spare parts catalogue
| Item no. | DescriptionArticle no. |
|---|
| b | brake disc92469000 |
| a | set of S-unions (±32 mm)98592000 |
| 1 | wall flange95688000 |
| 2 | mounting set96179000 |
| 3 | tile-matching-disk95239000 |
| 4 | escutcheon Ø 60 mm95692000 |
| 5 | O-ring 20x298165000 |
| 6 | screw92137000 |
| 7 | hollow set screw M6x598447000 |
| 8 | sleeve92166000 |
| 9 | shower arm95137000 |
| 10 | head shower27450000 |
| 11 | filter packing96477000 |
| 12 | ball joint97331000 |
| 13 | O-ring 15x2,598131000 |
| 14 | pipe 900 mm92400000 |
| 15 | pipe 1200 mm95665000 |
| 16 | pipe 1450 mm96770000 |
| 17 | O-ring 12x298214000 |
| 18 | support, assy97651000 |
| 19 | handshower28535000 |
| 20 | filter insert97708000 |
| 21 | shower hose Isiflex'B 1,60 m28276000 |
| 22 | Thermostat92147000 |
| 23 | O-ring 14x298129000 |
| 24 | handle95836000 |
| 25 | pushbutton92848000 |
| 26 | handle fixing set95843000 |
| 27 | safety set95839000 |
| 28 | nut98913000 |
| 29 | O-ring 26x1,598390000 |
| 30 | thermostat cartridge98282000 |
| 31 | cartridge for exchanged connections92373000 |
| 32 | stop ring for flow control95927000 |
| 33 | shut off unit with selector98283000 |
| 34 | set of nuts96157000 |
| 35 | non return valve (pressure-resistant up to 2 MPa)93136000 |
| 36 | non return valve96737000 |
| 37 | O-ring 17x1,598137000 |
| 38 | filter packing96922000 |
| 39 | escutcheon Ø 68 mm96467000 |
| 40 | set of S-unions (±12 mm)94140000 |
