Croma Select S Showerpipe 180 2jet with single lever mixer
Art. no. 27255400
Remember product
Product noted
Product saved for 30 daysTo the notepad
The product could not be saved.
Please try again.
Please try again.
Compare products
product added
Product saved for 30 daysTo the Product Comparison
The product could not be saved.
Please try again.
Please try again.
Product features
Innovative technologies
Trust in highest quality
Five-year manufacturer's guarantee
Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.
Alternative products
Similar products
Matching products
You may also like

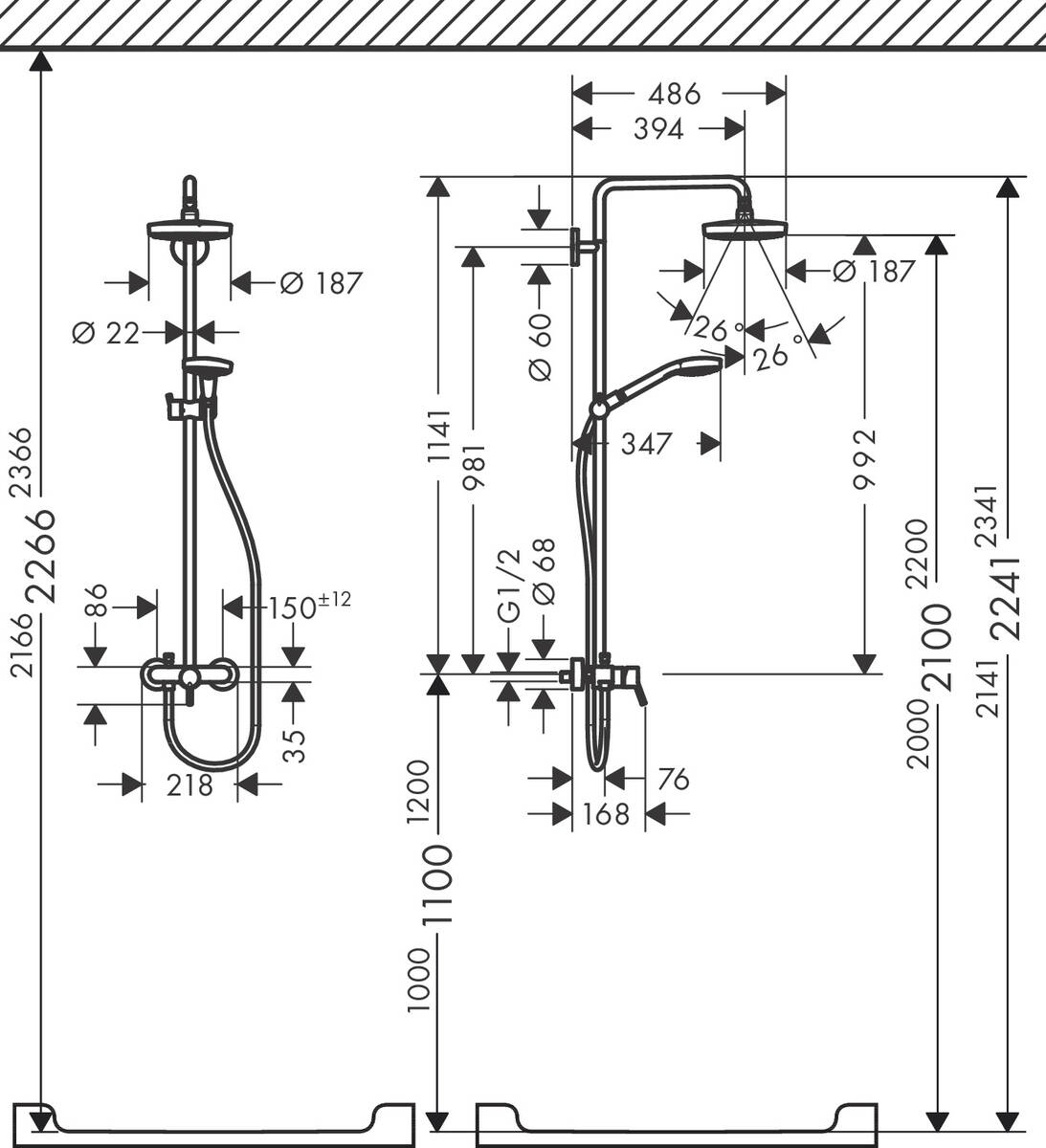

Installation information
Information
Please always observe the safety and installation information for your product. You find these details within the assembly instructions.
Scope of supply
- Showerpipe with single lever mixer
- escutcheons
- S-connections
- mounting material
- assembly instruction

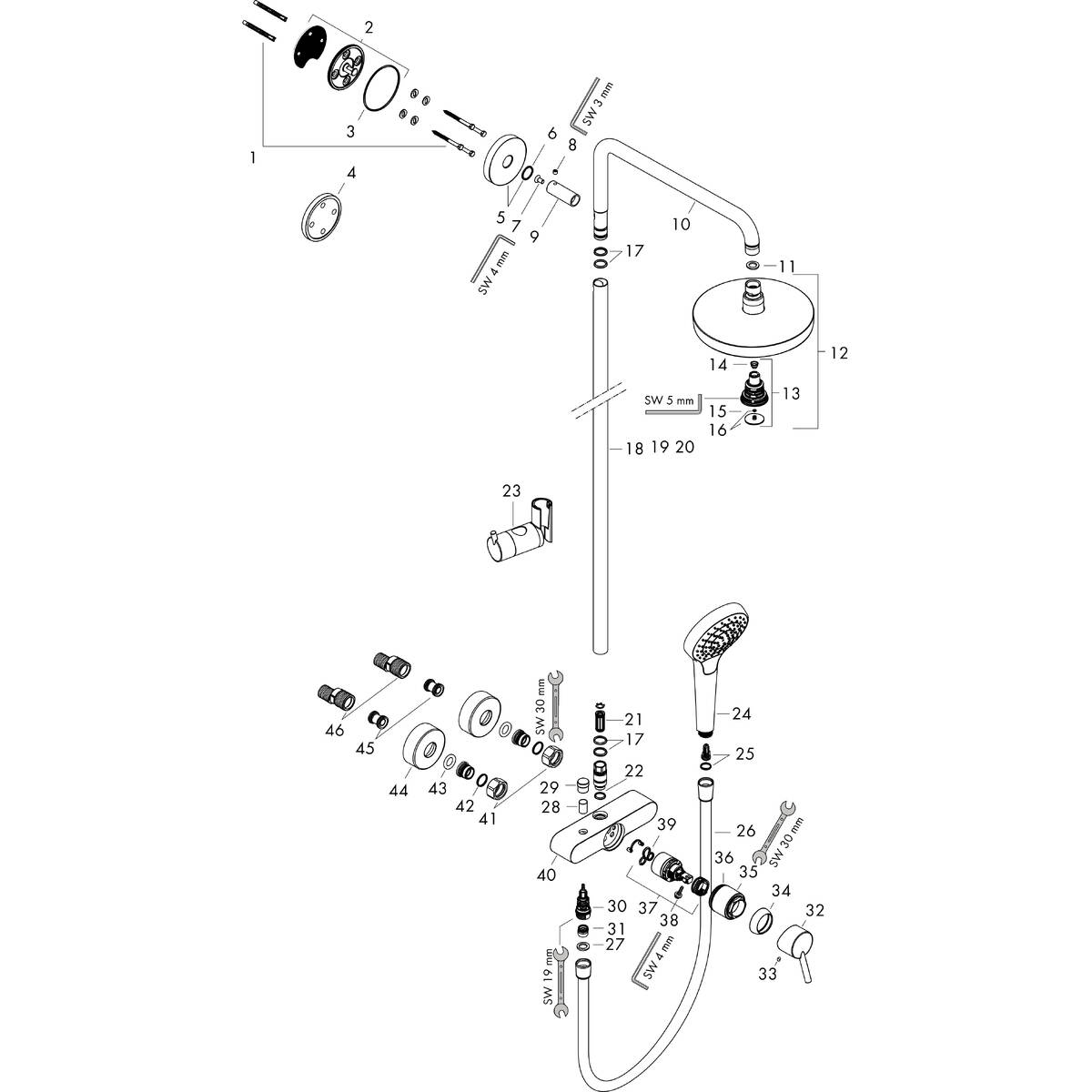

Spare parts for build year 08/19
View older models in the spare parts catalogue
| Item no. | DescriptionArticle no. |
|---|
| 1 | wall flange95688000 |
| 2 | O-Ring 50x298187000 |
| 3 | mounting set98716000 |
| 4 | tile-matching-disk95239000 |
| 5 | escutcheon Ø 60 mm95692000 |
| 6 | O-ring 20x298165000 |
| 7 | screw92137000 |
| 8 | hollow set screw M6x598447000 |
| 9 | sleeve92166000 |
| 10 | shower arm92348000 |
| 11 | flat seal97674000 |
| 12 | head shower26522400 |
| 13 | selector assy98343000 |
| 14 | filter97735000 |
| 15 | O-ring 3x198384000 |
| 16 | cover98344000 |
| 17 | O-ring 15x2,598131000 |
| 18 | pipe 973 mm92468000 |
| 19 | pipe 1030 mm95915000 |
| 20 | pipe 1400 mm95983000 |
| 21 | noise reduction95009000 |
| 22 | O-ring 12x2,2598382000 |
| 23 | support, assy97651000 |
| 24 | handshower26800400 |
| 25 | filter insert97708000 |
| 26 | shower hose Isiflex'B 1,60 m28276000 |
| 27 | seal98058000 |
| 28 | diverter knob97981000 |
| 29 | sleeve97979000 |
| 30 | selector (invers)95657000 |
| 31 | non return valve97980000 |
| 32 | handle32096000 |
| 33 | screw cover96338000 |
| 34 | flange97406000 |
| 35 | nut97977000 |
| 36 | O-Ring 32x298193000 |
| 37 | cartridge, assy92730000 |
| 38 | locking screw for handle95140000 |
| 39 | seal95008000 |
| 40 | installation unit cpl. without handle93674000 |
| 41 | set of nuts96157000 |
| 42 | O-ring 17x1,598137000 |
| 43 | filter packing96922000 |
| 44 | escutcheon Ø 68 mm96467000 |
| 45 | noise reduction96429000 |
| 46 | set of S-unions (±12 mm)94140000 |
