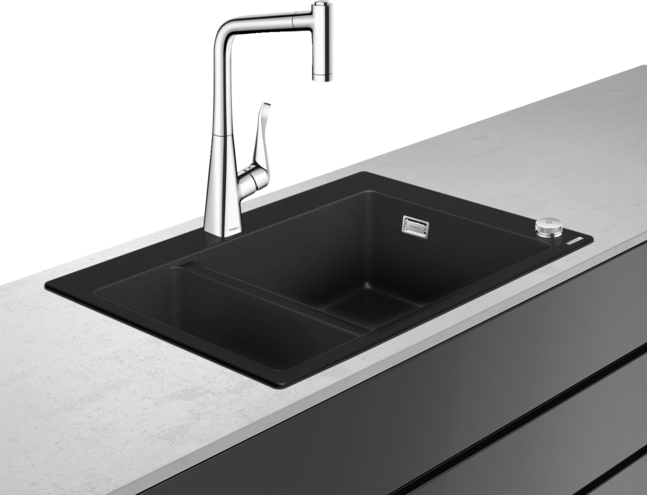

C51 C51-F635-04 Sink combi 180/450 Select

Finish Chrome

Art. no. 43215000

Product features

Innovative technologies

ComfortZone

Excellent user comfort

Generous proportions, sophisticated technology, intuitive operation. Outstanding design, high safety standards and considerably enhanced comfort: Hansgrohe showers, mixers and thermostats with this trademark extend your ComfortZone.Learn more

QuickClean

Fast anti-limescale function

Who really likes cleaning? Our invention, QuickClean, rapidly removes dirt and limescale deposits from mixers and showers. Flexible silicon nubs make sure of this. Beware of copies: this QuickClean logo is the only guarantee of genuine Hansgrohe quality.Learn more

Select

Intuitive jet adjustment

Soft water droplets or an invigorating massage? Select the jet type you want in just one click, for even more showering fun.Learn more

Trust in highest quality

Five-year manufacturer's guarantee

Offering our customers the highest quality at all times is a fundamental part of the Hansgrohe company philosophy.

Alternative products

Similar products

C51 C51-F450-01 Sink combi 450 Select

C51 C51-F660-02 Sink combi 660 Select

C51 C51-F450-03 Sink combi 450 Select with drainboard left

C51 C51-F770-05 Sink combi 370/370 Select

C51 C51-F450-06 Sink combi 450

C51 C51-F660-07 Sink combi 660

C51 C51-F450-08 Sink combi 450 with drainboard left

C51 C51-F635-09 Sink combi 180/450

C51 C51-F770-10 Sink combi 370/370

C51 C51-F450-11 Sink combi 450 Select with drainboard right

C51 C51-F450-12 Sink combi 450 with drainboard right

Article features

consists of: built-in sink, 2-hole single lever kitchen mixer, control unit, hose box, automatic waste and overflow set
material sink: SilicaTec
number of bowls: 1 main bowl and 1 additional bowl

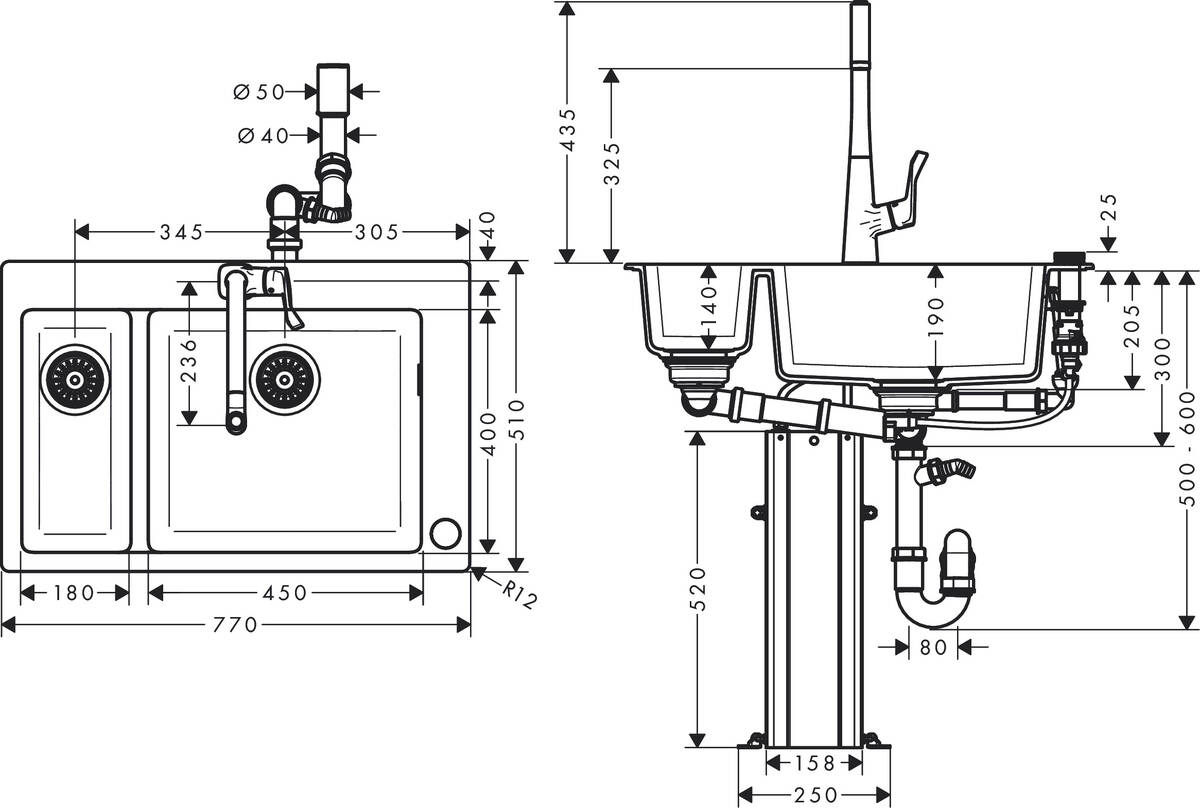

tap hole for drilling is predefined (see scale drawing)
sink depth: 190 mm
cut-out dimensions: 750 x 490 mm
cabinet size: 80 cm
type of installation: topmount
position overflow: on the right side of the main bowl
connection type: G ⅜ connections
connection dimension: DN15
flow rate 8 l/min
suitable for continuous flow water heaters
ceramic cartridge
MagFit magnetic shower support
integrated non-return valve
swivel range adjustable in 2 steps to 110° or 150°
laminar spray and shower spray
ComfortZone 320
lockable shower spray, spray returns automatically through handle closing
sBox for quiet, smooth and protected hose guidance in the cabinet, under the countertop, with extension length up to 76 cm
push of control unit: intuitive start and stop function of the water flow, turn: automatic drain operation

Download area

Product data sheet (PDF)

Planning data

Technical data

Instructions

Brochures

hansgrohe Kitchen Brochure 2018 PDF, 7.3 MB

Installation information

Information

Please always observe the safety and installation information for your product. You find these details within the assembly instructions.

Find plumber Assembly instruction (Mixer) PDF, 22 MB Assembly instruction PDF, 8.2 MB Assembly instruction (Waste) PDF, 654 KB

Scope of supply

sink combi
diamond drill
cutting template
mounting material
assembly instruction

Optional accessories

F15 Cutting board walnut

F16 Cutting board oak

F17 Mobile drainboard

F14 Multifunctional strainer
